Derivation flange diameter 25mm female downpipe 1/2 - Sicomat
Derivation flange diameter 25mm female downpipe 1/2 - Sicomat

Derivation flange diameter 25mm female downpipe 1/2 - Sicomat

€8.97 Tax included

€7.41 tax excl.

Flange for downspouts or bypass flange for 25mm outer diameter pipe and for downpipes with 1/2 cylindrical female thread. simple flange for creating downpipes in already finished networks and installations of compressed air, vacuum and inert gases without having to dismantle them.


Reference: QSB2512




Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

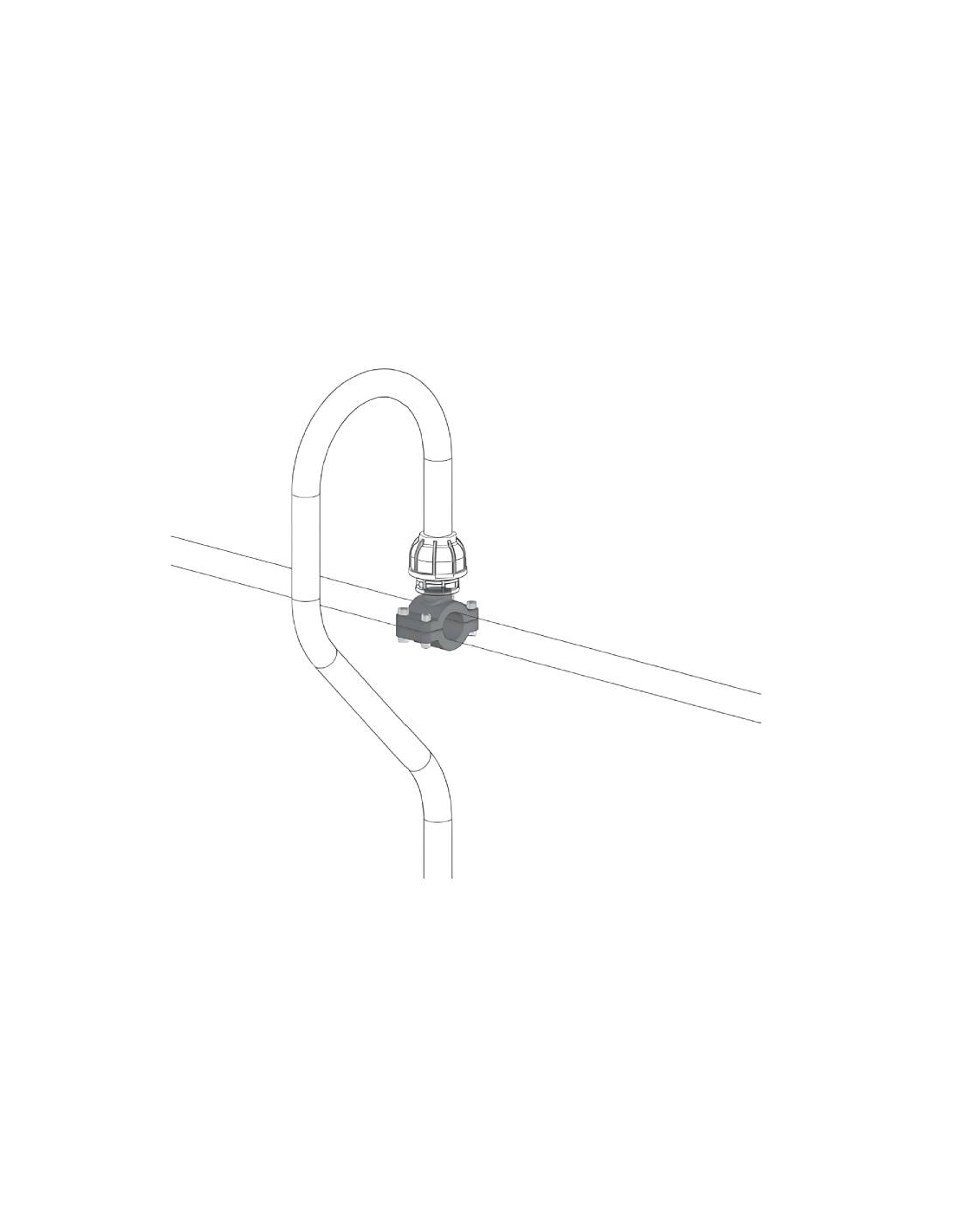

simple flange for creating downpipes or intake for the derivation of the main pipe network in already finished installations, for main pipe with an external diameter of 25mm and for downspouts with a 1/2 cylindrical female thread. This type of flange with a simple design allows you to create a downpipe in an already finished installation of compressed air, vacuum and inert gases such as nitrogen and argon without having to dismantle it. . Maximum working pressure 12.5 bar .





Characteristics:

  • Manufacturer/Supplier: Sicomat/Metalwork
  • Reference: QSB2512
  • Pipe diameter: 25mm
  • Downpipe thread: Female 1/2 (Gas cylindrical according to ISO 228)
  • Application: Compressed air / Vacuum / Nitrogen
  • Maximum pressure conditions: -0.8 to 12.5bar
  • Temperature conditions: -20ºC to +70ºC
  • Dimensions: Ø = 25mm; A = 65mm; B = 40mm; C= 1/2" ; D = 57.5mm
  • Weight: 63g
  • All products in the SicoAir Line range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 requirements, are non-flammable and limit the spread of flame.










Material for professional use, install in compliance with the regulations in force at the installation site.
