Bearing bracket shaft 17mm RASEY - INA
Bearing bracket shaft 17mm RASEY - INA

Bearing bracket shaft 17mm RASEY - INA

€34.33 Tax included

€28.37 tax excl.

RasEY inserted bearing casting bracket for 17mm diameter shaft, support bracket in self-aligning grey cast iron support with ball bearing inserted, with prisoners in the inner ring, plate sealing endowed with a lip in nitrile rubber, type R.

Manufacturer: INA - Schaeffler

Reference: RASEY17-XL

LOGO-INA

No queries yet, leave the first!

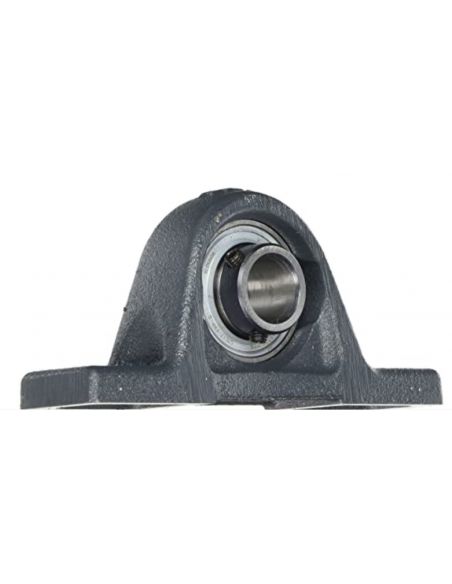

Self-aligning support bracket in grey cast iron with insert already mounted, type RASEY17-XL, for axle of 17mm. Grey cast iron bracket with self-aligning bearing with screws on the inner ring.

The inserted bearing (insert) of steel balls. These bearings are grooved. Its outer rings have a spherical surface that is free to oscillate on the support track, this oscillation allows self alignment in the housing of the support and compensate for any alignment defects and eliminate, as much as possible, unwanted efforts between the shaft and the support. The bearing to the shaft is fixed by two 120o displaced hexagonal allen screws. Easy assembly and disassembly.

Bearing sealing is guaranteed by joint composed of a sheet steel washer equipped with a nitrile rubber lip, "R" type opturization, the bearing mounts one joint on each side.

The housing is supplied with the bearing already mounted. Supply includes:

  • ASE03 bracket name
  • Bearing nomination GYE17-XL-KRR-B

Main dimensions:

Dimensiones rodamientos RASEY

  • d: 17 mm
  • L: 125 mm
  • H2: 57 mm
  • A: 30 mm
  • A1: 18 mm
  • B: 27.4 mm
  • H: 30.2 mm
  • H1:10 mm
  • J: 95 mm
  • N: 11 mm
  • N1: 19 mm
  • Q: M6
  • S1: 15.9 mm

For other references or models
