Bracket with shaft bearing 17mm PASE - INA
Bracket with shaft bearing 17mm PASE - INA

Bracket with shaft bearing 17mm PASE - INA

€34.45 Tax included

€28.47 tax excl.

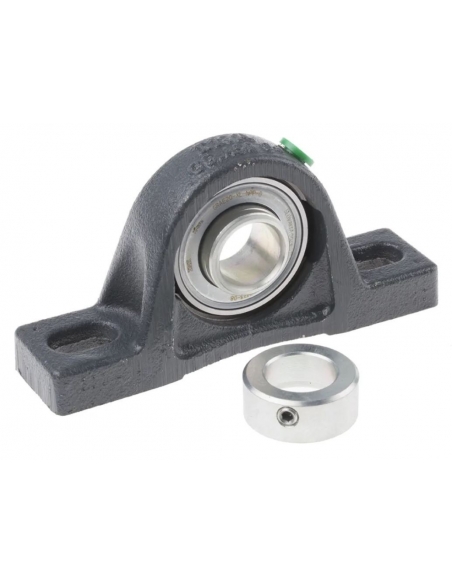

Casting bracket with PASE inserted bearing for 17mm diameter shaft, support bracket in self-aligning grey casting support with ball bearing inserted, attachment to the shaft by eccentric ring. P-type sheet metal seal.

Manufacturer: INA - Schaeffler

Reference: PASE17-XL

LOGO-INA

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Self-aligning support bracket in grey cast iron with insert already mounted, type PASE17-XL, for axle of 17mm. Grey cast iron bracket with self-aligning bearing, with attachment for the shaft by eccentric ring and prisoner.

The inserted bearing (insert) of steel balls. These bearings are grooved. Its outer rings have a spherical surface that is free to oscillate on the support track, this oscillation allows self alignment in the housing of the support and compensate for any alignment defects and eliminate, as much as possible, unwanted efforts between the shaft and the support. The bearing to the shaft is fixed by eccentric ring and hexagonal allen prisoners. Easy assembly and disassembly.

Bearing sealing is guaranteed by joint composed of a "P" sheet steel washer, the bearing mounts one joint on each side.

The housing is supplied with the bearing already mounted. Supply includes:

  • ASE03 bracket name
  • GraE17-XL-NPP-B Bearing Nomination

Main dimensions:

Dimensiones rodamientos PASE

  • d: 17 mm
  • L: 125 mm
  • H2: 57 mm
  • A: 30 mm
  • A1: 18 mm
  • B1: 28.6 mm
  • d3 max: 28 mm
  • H: 30.2 mm
  • H1: 10 mm
  • J: 95 mm
  • N: 11 mm
  • N1: 19 mm
  • Q: M6
  • S1: 22.1 mm
