Friction bushing SF1 303415C type PAP 3015 P10 - ISB

€1.31 Tax included

€1.08 tax excl.

Self-lubricating friction bushing SF1 30x34x15mm PAP P10, PTFE interior with a steel sheet base on which a thick porous tin/bronze layer is sintered.

Used in hydraulic and mechanical cylinders, hydraulic vehicles, automobiles, motorcycles, agricultural machines, textile machines, printing machines, gymnastic apparatus and many other applications.

Part number: SF1 303415C

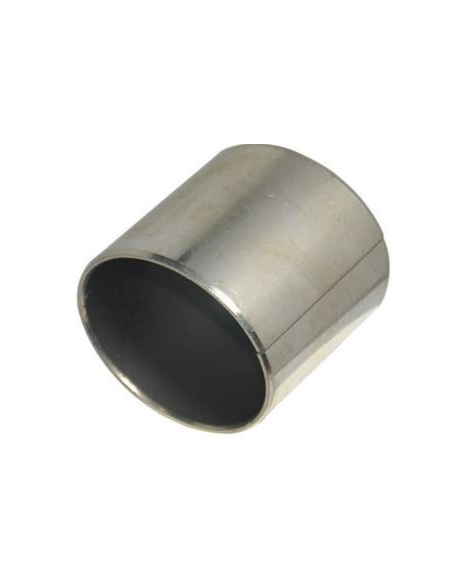

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!


Dry sliding bushings, maintenance-free self-lubricating friction bushing (bearing) and high static and dynamic load capacity.
During a short running-in period, minute amounts of PTFE material are transferred from the bearing layer to the contact surfaces. Once this transfer has taken place, the characteristic low friction and low wear properties of these plain bearings are achieved.

Features:

  • Manufacturer ISB
  • Type: SF1
  • Part number: 303415C
  • No lubrication required
  • High load capacity -140N/mm2
  • High sliding and low static and dynamic coefficient of friction
  • Good dimensional stability and thermal conductivity.
Dimensions:
  • Inner diameter (d): 30 mm
  • Outside diameter (D): 34 mm
  • Length (L): 15 mm
Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"
