Friction bush 14X16X10 in PTFE - ADAJUSA

Friction cap SF1 141610C type PAP 1410 P10 - ISB

€0.59 Tax included

0.49 tax excl.

SF1141610C

Self-lubricating friction cap SF1 14x16x10mm PAP P10, PTFE interior with a sheet steel base on which a thick porous tin/bronze layer is sintered.

Used in hydraulic and mechanical cylinders, hydraulic vehicles, automobiles, motorcycles, agricultural machines, textile machines, printing machines, gymnastic apparatus and many other applications.

Reference: SF1 141610C

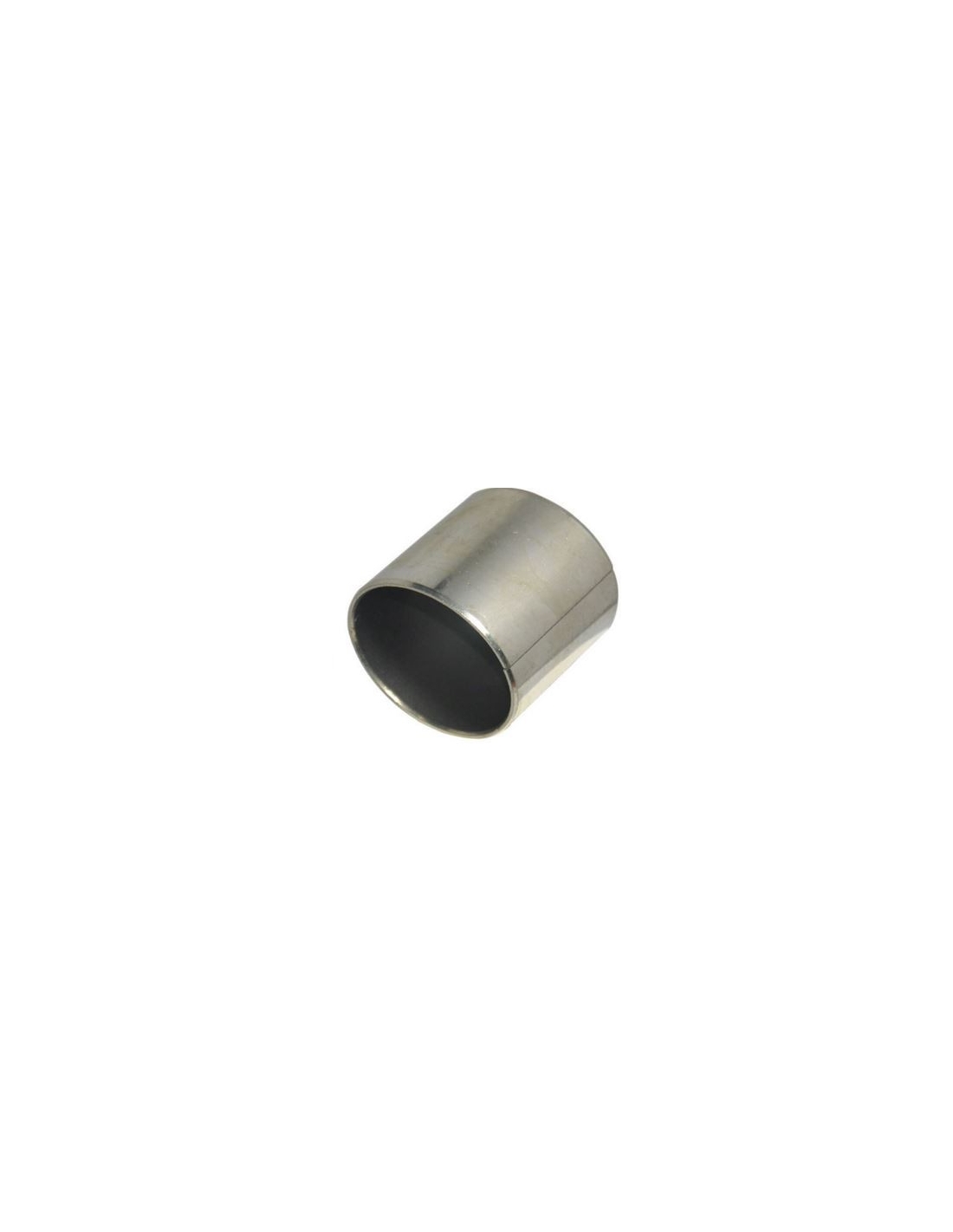

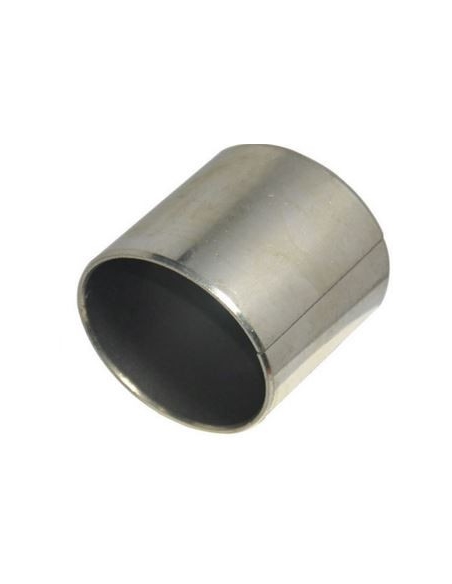

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

1 question about the product

Privacy

Shipments

Returns

Dry sliding bushings, self-lubricating friction bushing (bearing) without maintenance and high load capacity, both static and dynamic.
During a short break-in period, minute amounts of the PTFE material are transferred from the break-in layer to the contact surfaces. Once this transfer has taken place, the characteristic low friction and wear properties of these plain bearings are achieved.

Characteristic:

Manufacturer: ISB
Type: SF1
Reference: 141610C
They do not need lubrication
High load capacity -140N/mm2
High slip and low static and dynamic friction coefficient
Good dimensional stability and thermal conductivity.

Dimensions:

Inner diameter (d): 14mm
Outer diameter (D): 16mm
Length (L): 10mm

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Bushings tab

ISB bushings sheet

Download (11.89MB)

Questions

Question

valdría para el motor de un Kawasaki kfx 700, es de un quad, soportaría muchas revoluciones? gracias

Answer

Buenos días,

Desconocemos la aplicacion y no podemos dar respuesta a su pregunta.

Saludos

david on 09/12/2018 19:52:26
