Pressure gauge with glycerin 0 - 6 bar for 63mm panel with stand - Metal Work

€15.54 Tax included

€12.84 tax excl.

Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 6 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation in bar. Steel needle. Panel mounting bracket included.

Logotipo Metal Work

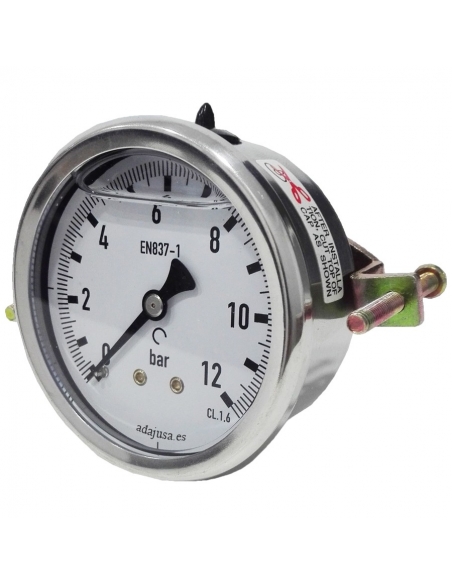

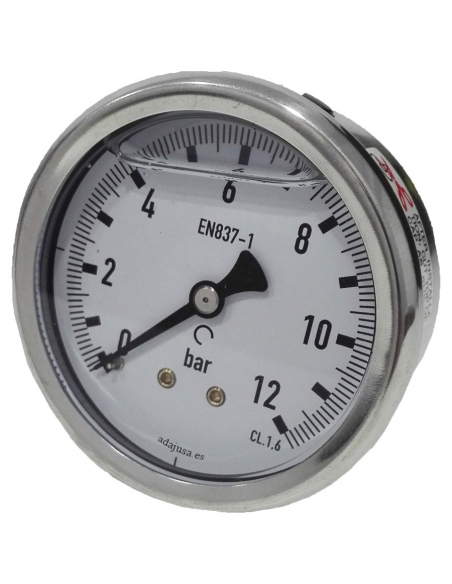

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.



Pressure manometer to control the pressure of the machine or installation to be used. Pressure gauge filled with glycerin and manufactured in AISI 304 stainless steel case and internal parts in copper alloy. Rear connection with G 1/4" thread. Graduated scale at bar. Panel mounting bracket included.
The measuring scale is graduated between 0 and 6 bar.
This pressure gauge is especially suitable for installations where it is subjected to vibrations or pressure pulsations, the process fluid must not be corrosive, nor have a high viscosity.

This type of pressure gauge is built according to EN837-1 and accuracy class 1.6% of full scale value. White lacquered aluminum dial with black numbers.

Technical characteristics:

  • Field of application: For liquid and gaseous media
  • Diameter: 63mm
  • Measuring range: 0...6 bar
  • Connection: G 1/4" rear
  • Housing and bezel: Polished stainless steel AISI, beveled bezel
  • Fitting: 1/4" Gas copper alloy (BSP)
  • Sensing element: Copper alloy
  • Transmission: Copper alloy
  • Dial: White lacquered aluminum, scale and black numerals
  • Hand: Black lacquered aluminum, with chrome-plated center
  • Transparent: Polycarbonate
  • Accuracy class: ±1.6% of full scale value
  • Overpressure applied to the instrument at the time of adjustment: 25% of full scale value.
  • Working pressure:
    • Constant pressure: 3/4 parts of full scale value
    • Variable pressure: 2/3 of full scale value
    • Pressure in short periods: full scale
  • Operating temperature: Max +65ºC
  • Ambient temperature: +5ºC to +60ºC
  • Temperature drift: The variation in the accuracy of the instrument will be ±0.4% every 10ºC. (Reference temperature 20ºC ±2ºC)
  • Degree of protection: IP65
  • Buffer liquid: Glycerin USP (99.8%)
  • Weight: 0,222 Kg

Material for professional use, install in compliance with the regulations in force at the place of installation.
