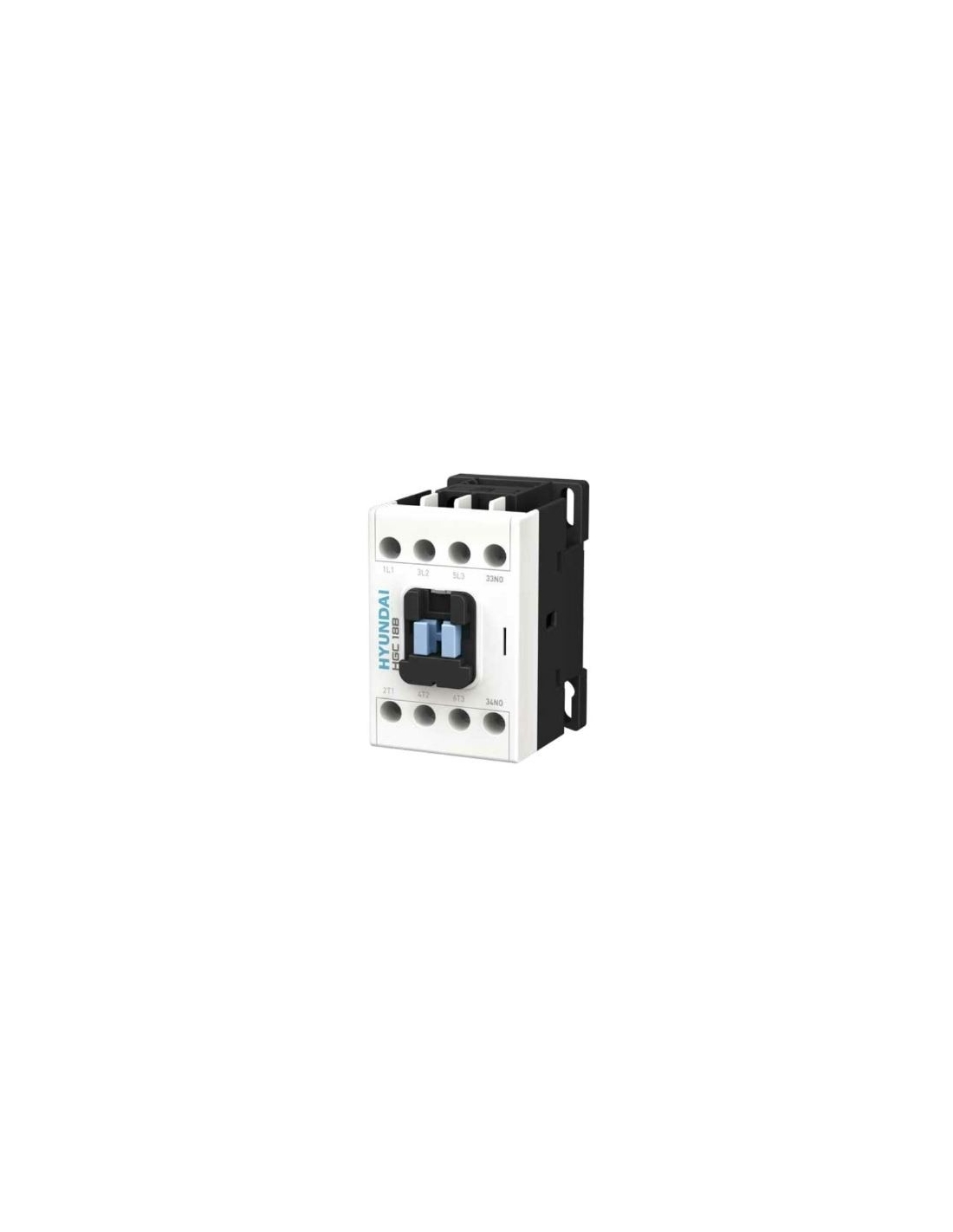

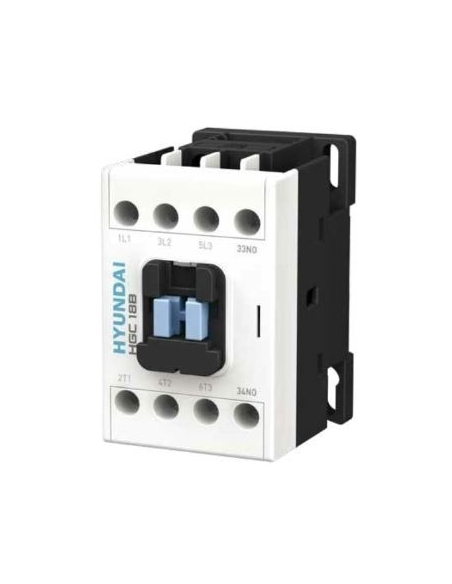

Three-phase contactor 50A coil 230Vac - Hyundai Electric
Three-phase contactor 50A coil 230Vac - Hyundai Electric

Three-phase contactor 50A coil 230Vac - Hyundai Electric

€79.71 Tax included

€65.88 tax excl.

Electric three-phase contactor equipped with high capacity contacts for electric motor control, heating, lighting, ventilation, or general uses, 3 poles with a current capacity of 50A in AC3 or 70A in AC1, with 230Vac coil. Equipped with two open auxiliary contacts (NA) and two others closed (NC).

Reference: HGC50-22NSX230

Esquema contactor 4 contactos auxiliares

hyundai electric logo


Representative image for illustrative purposes, the supplied article is subject to the specifications indicated.

No queries yet, leave the first!


Three-phase contactor (3 poles) of 50A in AC3 category or 70A in AC1 category, the contactor is equipped with high robust main contacts, suitable for demanding applications for electric motor control, heating systems, lighting, ventilation and general use. The contactor is equipped with two open auxiliary contacts (NA) and two others closed (NC), located on the side of the contactor. The contactor can be fastened by screws or by DIN rail.

Technical details:

  • Manufacturer/Supplier: Hyundai Electric
  • Contactor Reference: HGC50-22NSX230
  • Assigned frequency: 50Hz
  • Maximum operating voltage: 1000Vac.
  • Coil voltage: 230Vac.
  • Number of contactor poles: 3.
  • Assigned current for contactor in AC3: 50A.
  • Current assigned for contactor in AC1 (Ith): 70A.
  • Maximum power (kW) 380-400Vac: 22kW.
  • Maximum power (kW) 220-230Vac: 15kW.
  • Auxiliary contacts: 4 contacts (2 open and 2 closed)


To expand the information you can download the data sheet by clicking on the tab "Attachments"
Material for professional use, install in compliance with the regulations in force at the place of installation.
