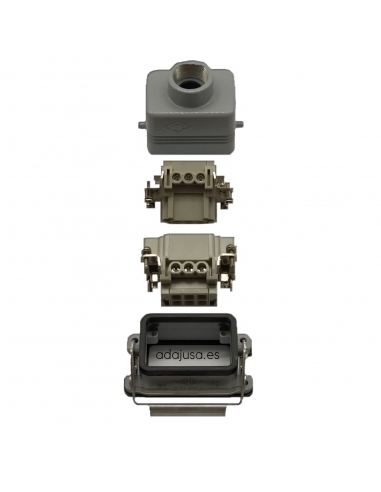

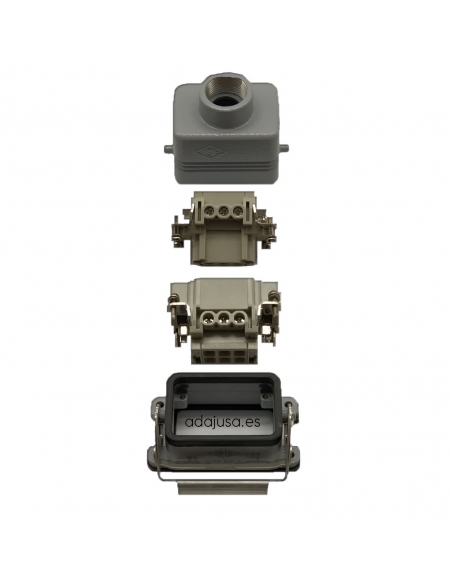

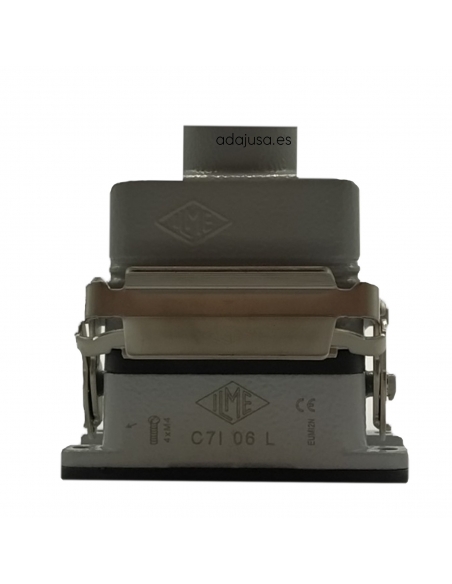

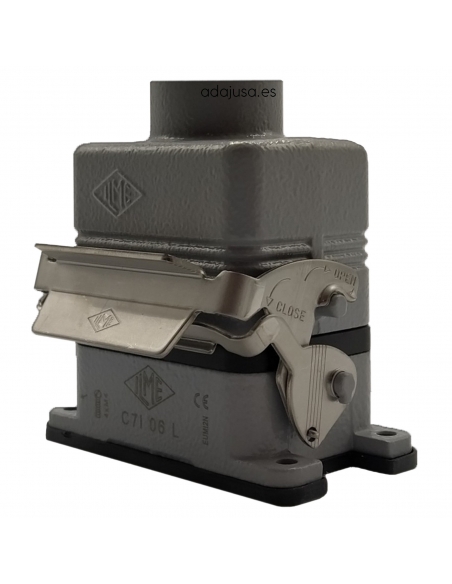

Full multipolar connector 10 poles and recessed ground vertical output M25

€63.21 Tax included

€52.24 tax excl.

10-pole multipolar connectors + grounding, complete with M25 vertical output, recessed panel mount. They can be used in non-aggressive industrial environments and in all places where there is a need for high quality connection.

Reference: MNZ10IV

No queries yet, leave the first!


Complete multipolar connectors, for panel mounting, 10-pole and grounding. Vertical cable output with M25 thread.

This series of multipolar connectors can be used in non-aggressive industrial environments and in all places where there is a need for high quality connection. The inserts are made of self-extinguishing thermoplastic resin, according to UL 94V-0, with stagnated zinc contacts. The assembly is coupled by thermoplastic cams and galvanized steel for the enclosures.

Technical details:

  • Manufacturer/Supplier: ILME
  • Reference: MNZ10IV
  • Series: MNZ, full connector 16A max - 500Vac.
  • Number of poles: 10+Earth.
  • Maximum current: 16A.
  • Maximum voltage: 500V.
  • Driver section: 0.50 mm2 - 2.50 mm2.
  • Degree of protection: IP66.
  • Cable input: M25.
  • Situation: Vertical.
  • Weight:
  • Regulations: EN 61984:2009-06

Dimensiones conectores ILME

EsquemaMontajeConectorMultipolar
