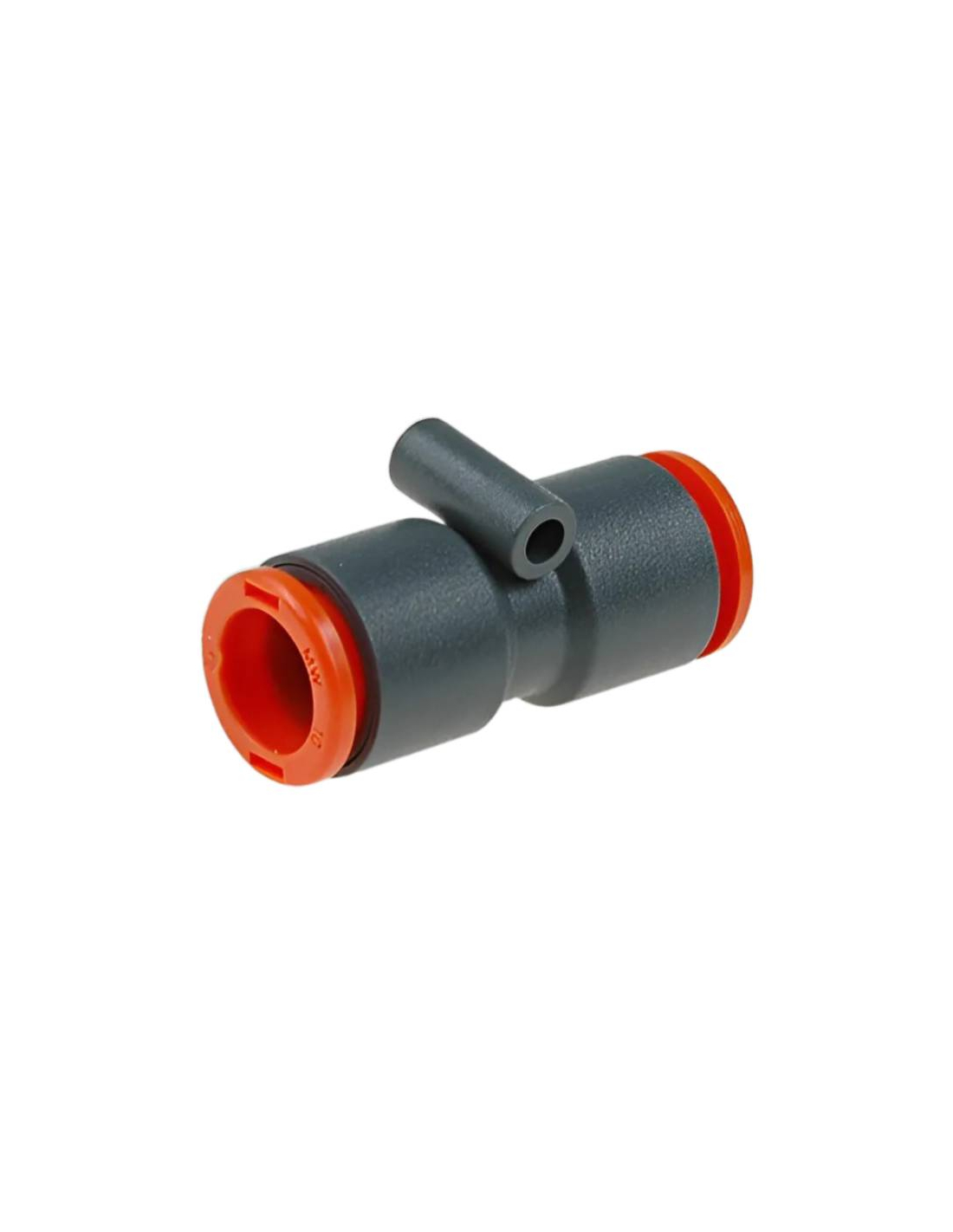

Intermediate fitting diameter 12 mm - Metal Work

Straight intermediate fitting for outer tube Ø12mm, quick connection, made of brass and high quality technopolymer. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention; the clamping spring, ignites the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the tube fitting. In the fittings the fitting ring has slots for the screwdriver to facilitate disconnection in applications inaccessible to the fingers.

• Manufacturer: Metal Work.
• Manufacturer reference: 2019006
• Øexterior of the tube: 12mm.
• Fluid: Vacuum - Compressed air.
• Operating pressure: -0.99 bar to 16 bar.
• Material: technopolymer.
• Retention board: NBR.
• Clamping spring: stainless steel.
• Working temperature: -20ºC to +80ºC.

For other references consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.
