Manual lever valve 1/4 5/2 return spring lever...

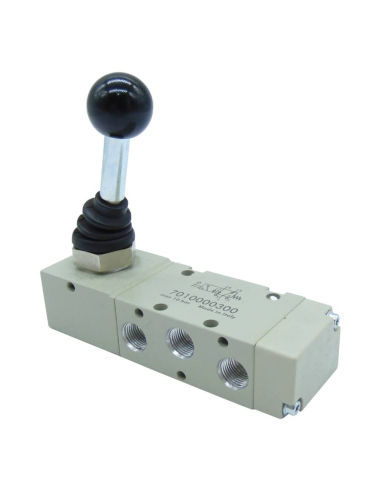

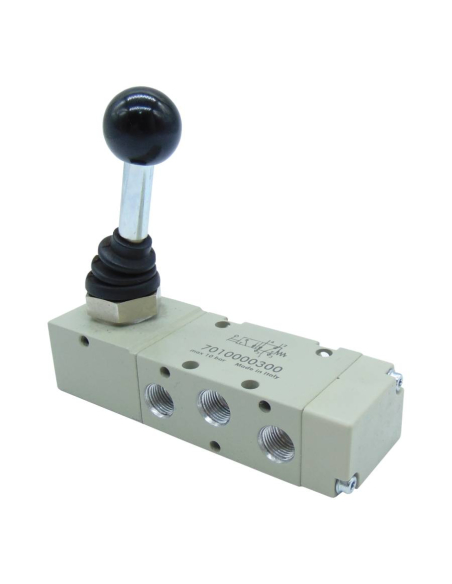

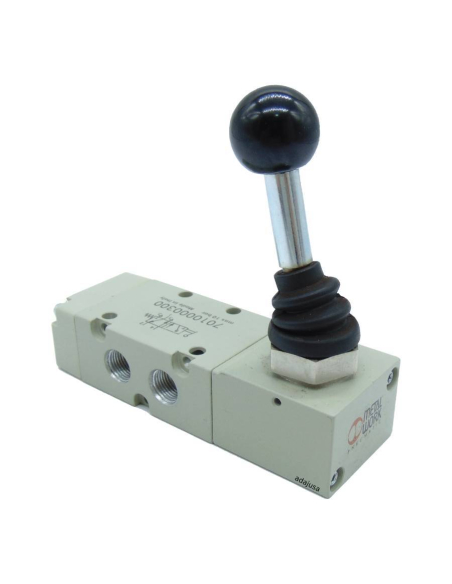

Manual lever valve 1/4 5/2 return spring lever 90 degrees - Metal Work

Name: Manual lever valve 1/4 5/2 return spring lever 90 degrees - Metal Work
Brand: Metal Work
SKU: 7020000300
Price: 78.288 EUR
Availability: PreOrder

€78.29 Tax included

€65.24 tax excl.

Valve of 1/4 manual actuation by angular lever to 90º monostable. 5 ways 2 spring return positions, the valve is actuated when the valve is actuated and returns to the resting position when the valve stops being actuated, metal body. For control of double effect cylinders.

Reference: 7020000300

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Valve of 1/4 monostable manual drive, by lever of 2 fixed positions, 5 ways 2 positions with return by spring, which allow to control cylinders of double effect. In one position the cylinder is collected, in another position the cylinder advances.

Specifications:

Manufacturer: Metal Work.
Reference: MAV 35 LES OO. Code: 7020000300.
Fluid: Pressurized or vacuum air, with or without lubrication.
Valve Body: aluminum.
Sliding material: Nickel-plated aluminum.
Joints: NBR.
number of tracks:
Size: 1/4".
Positions: 2 return per spring.
Control: By lever.
Working pressure: Vacuum÷10 bar.
Temperature: -10÷60ºC.
Nominal diameter: 7.5
Conductance C (N/min.bar): 264.26
Flow rate at 6bar ΔP 0.5bar: 750Nl/min.
Flow rate at 6bar ΔP 1bar: 1100Nl/min.
Installation: in any position.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

70 manual series valves

Download (1.51MB)
