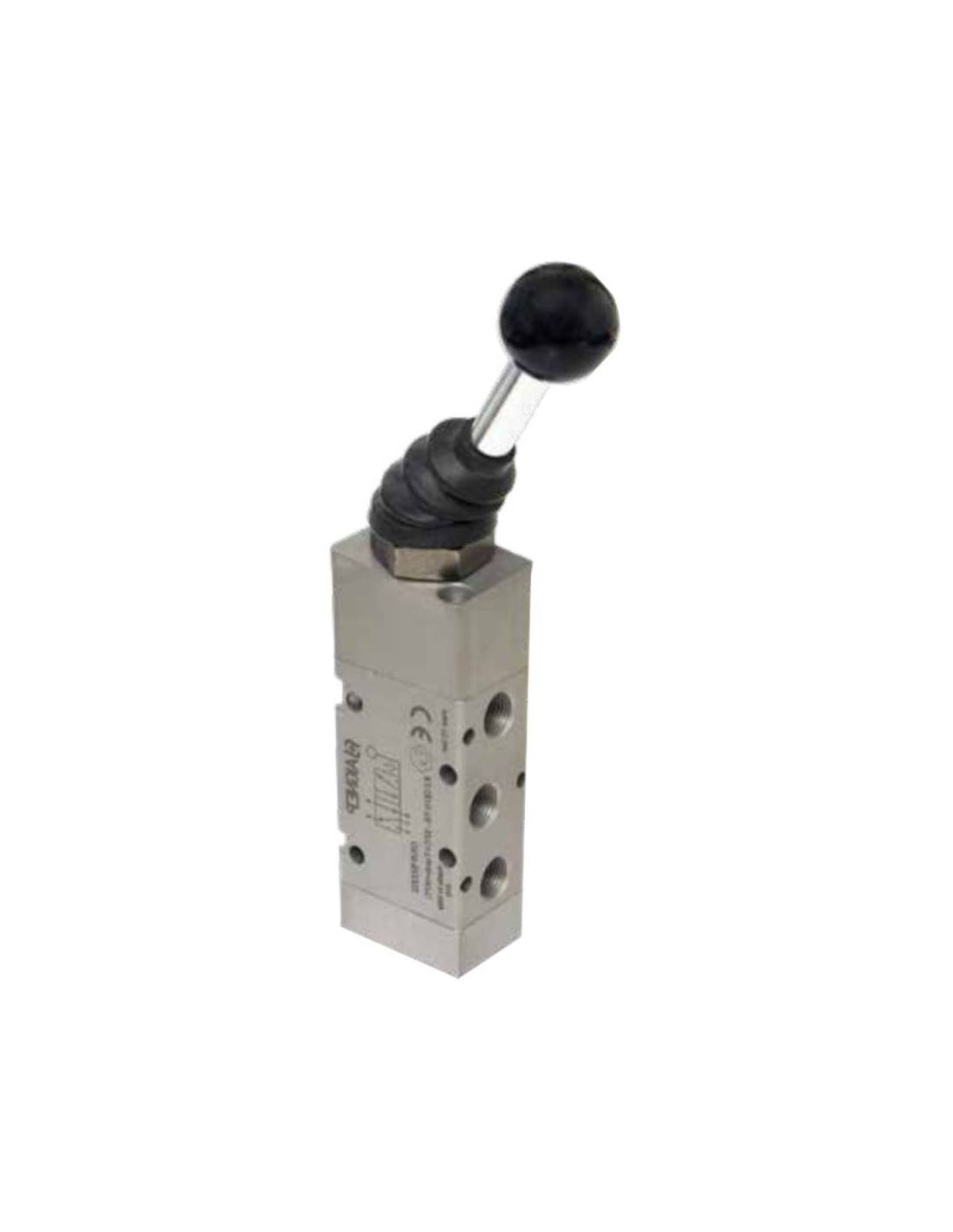

Lever valve bistable 1/8 5/2 lever front - Aignep

Name: Lever valve bistable 1/8 5/2 lever front - Aignep
Brand: Aignep
SKU: 01VF150002
Price: 40.898 EUR
Availability: InStock

€40.90 Tax included

€33.80 tax excl.

Valve 1/8 manually operated by front lever bistable of 5 way and 2 fixed positions, allowing to control double acting cylinders. Made of anodized and painted aluminum.

Series: 01V
Part number: 01VF150002

Logotipo Aignep iconos-válculas aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/8 valve manually operated by front lever bistable of 5 way and 2 positions, which allows to control double acting cylinders. In one position the cylinder is retracted, in another position the cylinder moves forward. It can also be used as a shut-off valve or pneumatic circuit breaker.

Manufacturer: Aignep

Part number: 01VF150002
Operating Pressure: Vacuum ÷ 10
Operating Temperature °C: -10 ÷ +60
Panel mounting: M16x1
Flow rate at 6 bar ΔP 1 bar Nl/min: 740

52DDIMENSIONEST1

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"

Aignep valves catalog

Aignep series 01 valves and solenoid valves catalog

Download (8.44MB)
