Button TLP5 - Giovenzana

€59.19 Tax included

€48.92 tax excl.

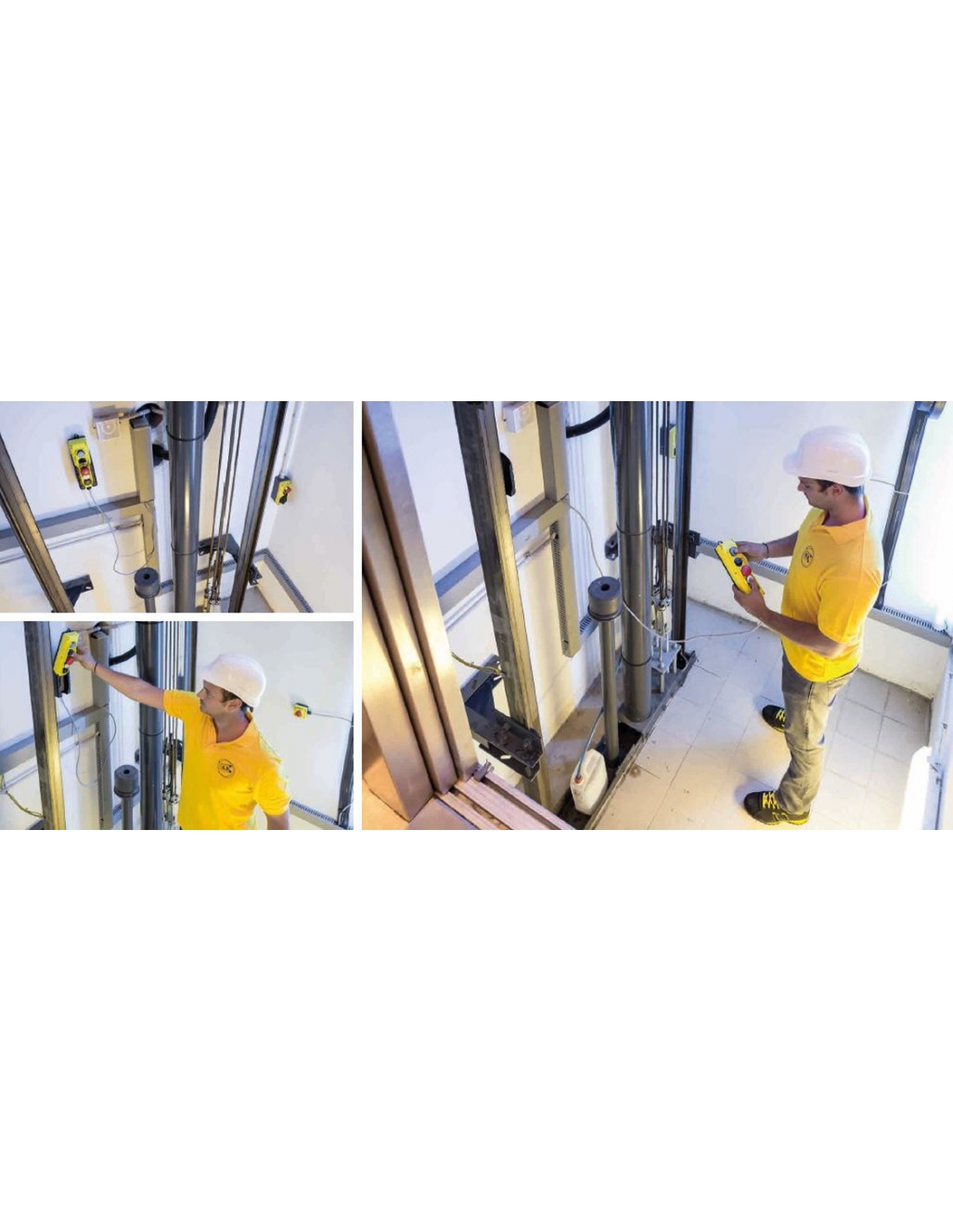

Button box mounted for moat and inspection of elevators.

It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements. Made in Europe.

The supply includes:

  • Box for 5 elements
  • Emergency pushbutton 1 NC
  • 2-position 90º 3NA+2NC switch
  • 1NA Stop Button
  • 2NA up button
  • 2NA stop button
  • M20 glands

Reference: TLP5

Logotipo normativa botoneras serie HP resumido

logotipo giovenzana adajusa

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Button box for pit inspection in elevators, emergency push button stop for applications in elevators and uses in general. Of European manufacture, it complies with all the applicable regulations for this type of installation.

The button is supplied fully equipped with the usual elements in this type of facility. It has an ergonomic design that allows a lot of ease of use.

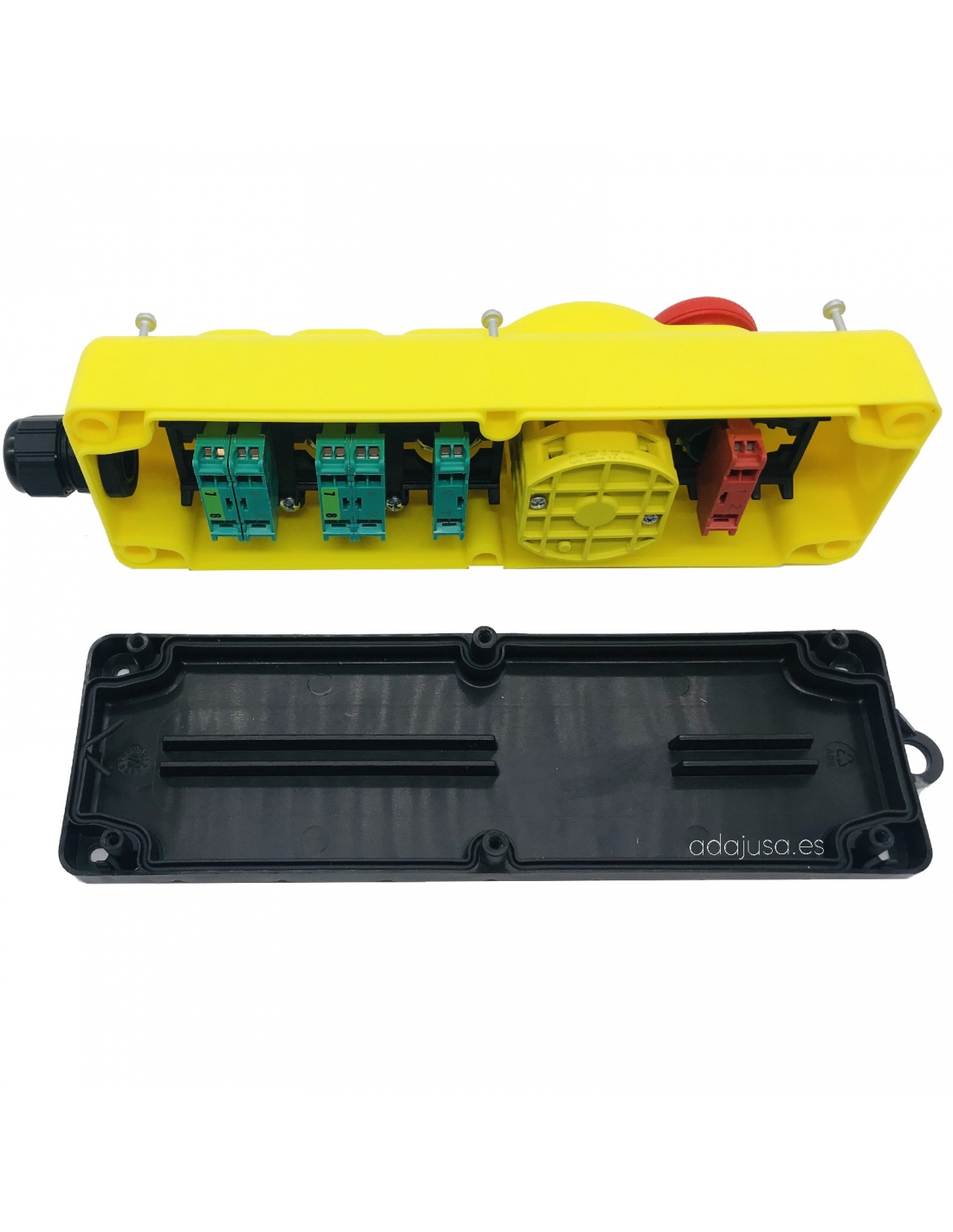

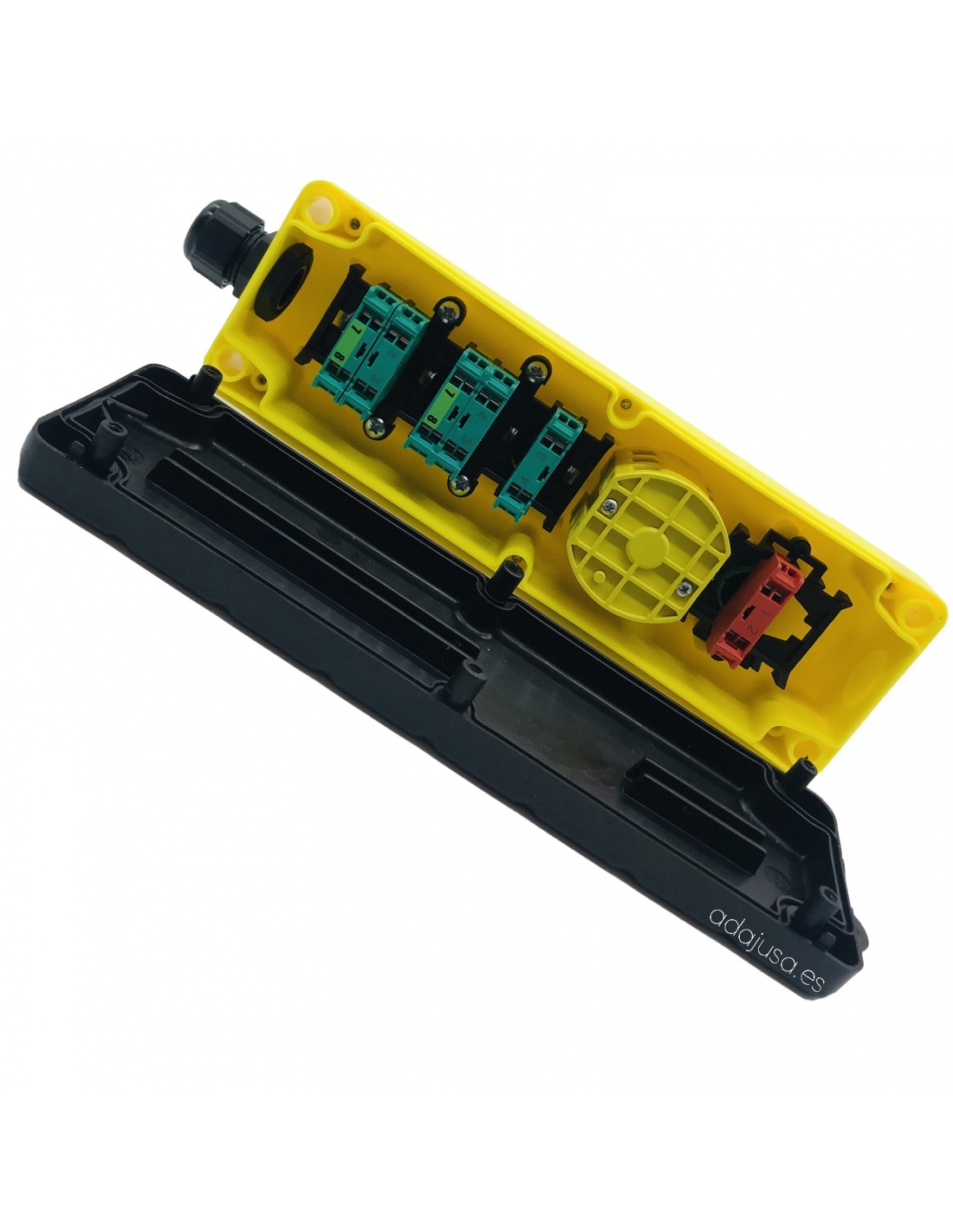

The contacts of the pushbuttons have spring-type terminals for the connection of the cables, are equipped with high capacity contacts (Ith 16a). The rotary switcher has 6 contacts, with screw connection, 3 of the contacts are open and 3 closed. The capacity of the contacts is 20a.

The button complies with the regulations for use in elevators in safety and inspection applications. it also complies with the machinery directive which allows it to be used in machinery and industrial installations as well. It can be easily fixed on the wall or on a support that allows its mobile use, the support is not included in the supply.

The supply includes:

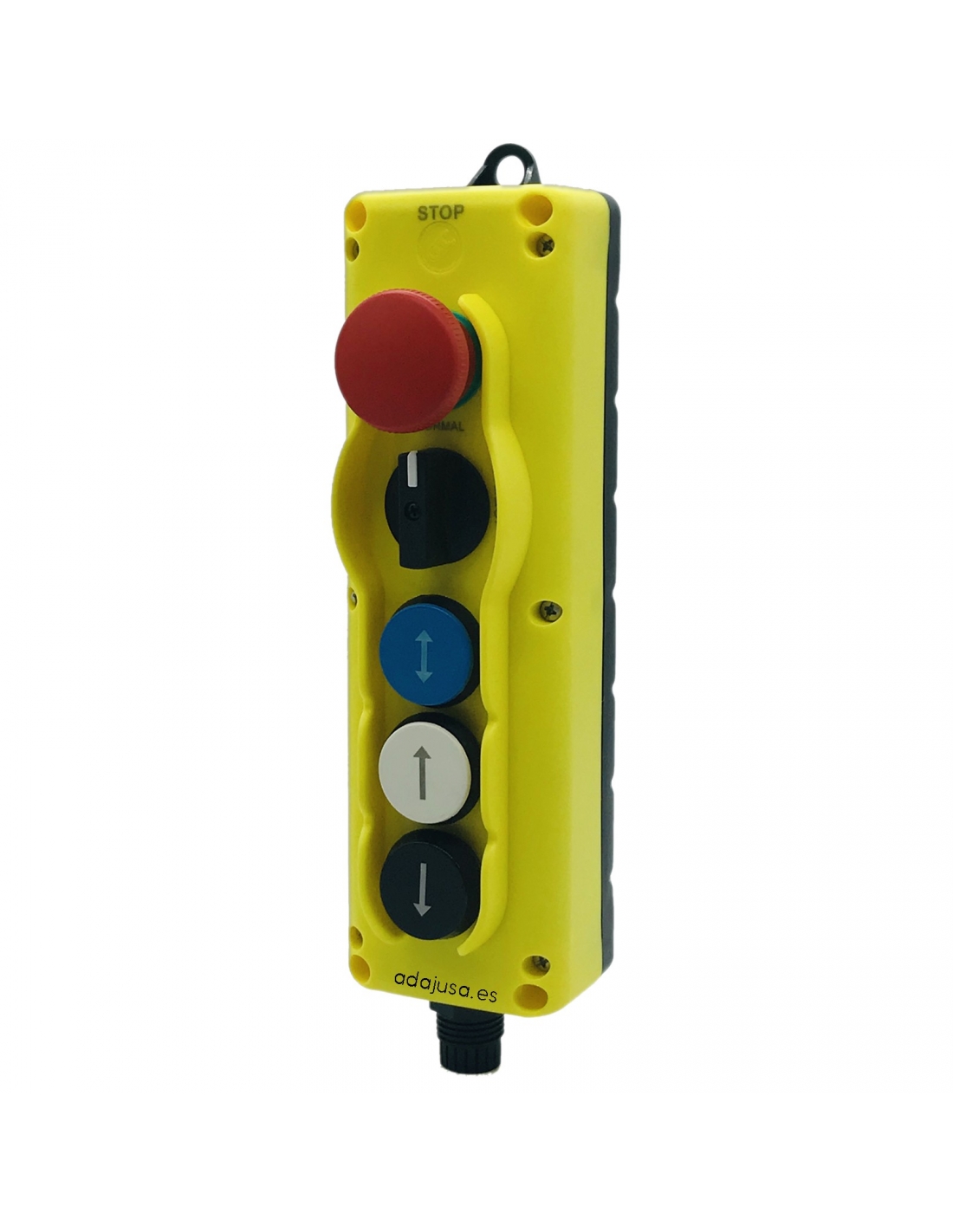

  • Box of 5 elements in yellow.
  • Ø40 emergency mushroom-head pushbutton, with interlocking and mechanical indication of condition. It has a positive opening nc (NC).
  • Two-position switch (1-2) with 90º rotation, with 3 open contacts and 3 closed contacts (3NA+3NC).
  • Lock button, in blue, with 1 no (NA).
  • Push button of ascent ( ascent), in white color, with 2 open contacts (2NA).
  • Down button (descent), in black, with 2 open contacts (2NA).
  • Glands for cable input.

To complement the contacts included in the supply, you can add more blocks of contacts only of the Giovenzana brand, the references are:

  • 1 nc (NC), spring cable attachment: GIPCW01.
  • 1 no (NO), spring cable attachment: GIPCW10.

specifications:

  • Manufacturer: Giovenzana
  • Series: TLP
  • Reference: TLP5
  • mushroom-head diameter : 40mm.
  • Drive: Press and pull.
  • Box: Made of yellow plastic.
  • Maximum insulation voltage (Ui): 690Vac.
  • Nominal thermal intensity (Ith):
    • Rotary selector: 20a.
    • Pushbuttons: 16a.
  • Frequency: 50/60Hz.
  • Cable input: M20
  • Weight: 500gr.
  • Degree of isolation: IP65.
  • Standard: IEC/EN 60947-1; IEC/EN 60947-5-1; IEC/EN 60947-5-4; IEC/EN 60947-5-5;

dimensions:

Dimensiones caja foso ascensores TLP5

Connection scheme:

Esquema electrico botonera TLP5

This type of button box, only supports spring-type contacts of the Giovenzana brand.

Ilustración conexionado terminales resorte Giovenzana

Dibujo modo conexionado bornas tipo resorte Giovenzana

Compliance and certifications
• EN 60947-1 (2007/A1 : 2011/A2 : 2014)
• EN 60947-5-1 (2004/A1 : 2009/AC : 2004/AC : 2005)
• EN ISO 13850 (2015)
• EN 60204-1 (2006/A1 : 2009)
• EN-ISO 13849-1 (2015)
• EN ISO 13849-2 (2012)
• EN 60529 (1991/A1 : 2000/A2 : 2013)
• EN 50581 (2012)
• IEC 63000 (2016)
• 2014/35/EU
• 2011/65/EU
• 2015/863/EU

For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
