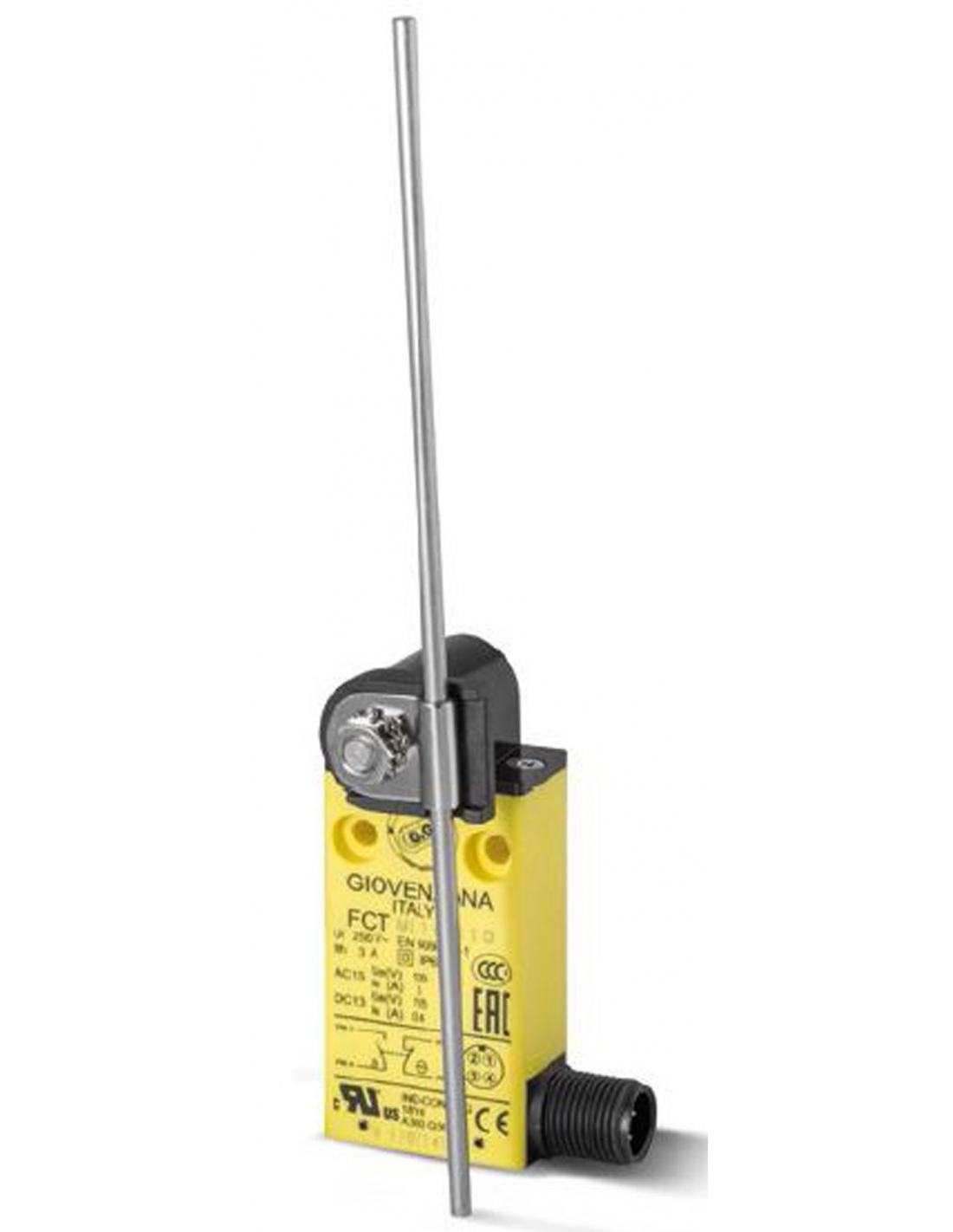

Limit switchfCT series, lever operated with adjustable metal rod. The FCT series of position switches are made of thermoplastic material, with pre-wired side output. Designed for industrial applications of automation, elevators and elevation, and general use. The installation is very easy simple, ensuring extreme ease of assembly.
High degree of protection, IP67, designed to be used even in the most rigid environmental situations, these limit switches have passed the IP67 immersion test, in compliance with EN60529.
Technical features:
- Manufacturer: Giovenzana.
- Series: FCT2L10.
- Number of contacts: 2.
- Contact with positive opening: Contact NC.
- Category of use: AC15/600.
- Rated thermal current (Ith): 10A.
- Rated insulation voltage: 500Vac.
- Minimum admissible current: 5mA at 5Vdc.
- Insulation resistance: 100MΩ min (DC500V).
- Contact resistance: 25mΩ max. (Initial).
- Actuating travel for positive opening: Various.
- Maximum switching frequency: 2 cycles/sec.
- Housing materialmaterial: UL approved polybutylene terephthalate with glass fibers.
- Material of actuator: Various.
- Working temperature: -25ºC..70ºC.
- Mechanical durability: 10.000.000 cycles min.
- Electrical durability: 150,000 cycles min.
- Fastening: 2xM4.
- Standards: EN60947-5-1, UL508, EN5004-7, EN1088
- Degree of protection: IP-67.
For further information you can download the data sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.
