Magnetic sensor hall PNP 3 wires cable and clamp 25 - Metal Work

€30.17 Tax included

€24.93 tax excl.

Magnetic sensor, magnetic detector, normally open (NA), with magnetic hall pickup and PNP output, with cable included 3 wires and fixing bracket for cylinders 25 (ISO 6432).
Logotipo Metal Work
Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!

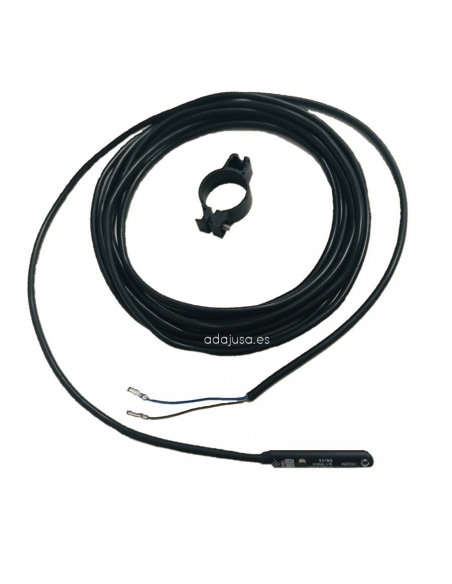

Magnetic detector with cable included and clamp for pneumatic cylinders of diameter 25 (ISO 6432).

Shipping includes:

  • Magnetic sensor hall PNP of 3 wires with cable. Reference: W0952025390

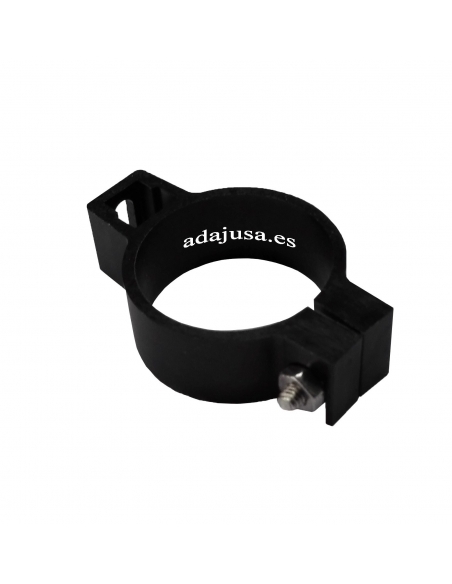

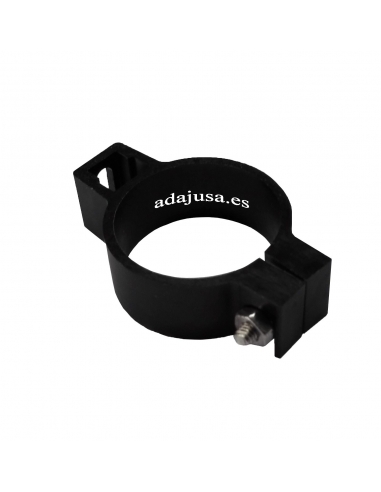

  • Sensor clamp for cylinders Ø25. Reference: W0950000625

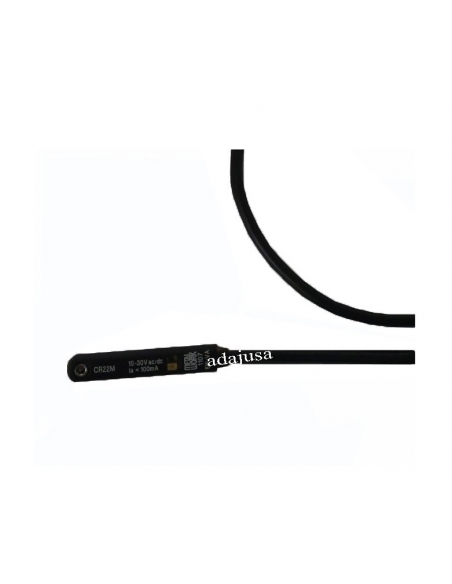

Magnetic sensor with cable included for mounting on pneumatic cylinders. Hall type 3 wires with PNP output.

This sensor has the characteristic of being able to be mounted in the cylinder slot from above, that is, the cylinder head does not need a through opening.

It is fixed by a qaue screw pressed against the bottom of the T-slot, the fixing screw is for a 1.5mm allen wrench. The sensor can be installed in any cylinder or component with traditional T-slots.

Characteristics of the magnetic detector:

  • Manufacturer: Metal Work
  • Type of contact: Hall NO PNP (Normally open).
  • Supply voltage (Ub): 10 ÷ 30 Vdc.
  • Voltage variation: ≤10% ub.
  • voltage drop: 2V ≤.
  • Power (W): 3.
  • Peak power (W): 6.
  • Output current (mA): ≤ 100.
  • Switching frequency (Hz): ≤ 400.
  • Short circuit protection: Yes.
  • Over-load protection: Yes.
  • Investment protection: Yes.
  • Regulations: EC, EN60947-5-2
  • Color led status indicator: Yellow.
  • Magnetic sensitivity: 2.8mT±25%.
  • Frequency: ≤ 0.1mT.
  • Degree of protection (according to EN60529): IP67.
  • Working temperature (ºC): -25÷70.
  • Sensor capsule material: PA66 + PA61/6T.
  • Connection cable length: 2.5 m.
  • Type of connection cable: PVC; 2x0,12mm².
  • Number of drivers: 3.
  • measurement
    Length 34 mm.
    Width 7 mm.
    Height 4 mm.

Dimensiones sensor ovalado Metal work

Diagrama de cableado sensor metal work tipo reed

Detector magnético Metal Work



Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab
