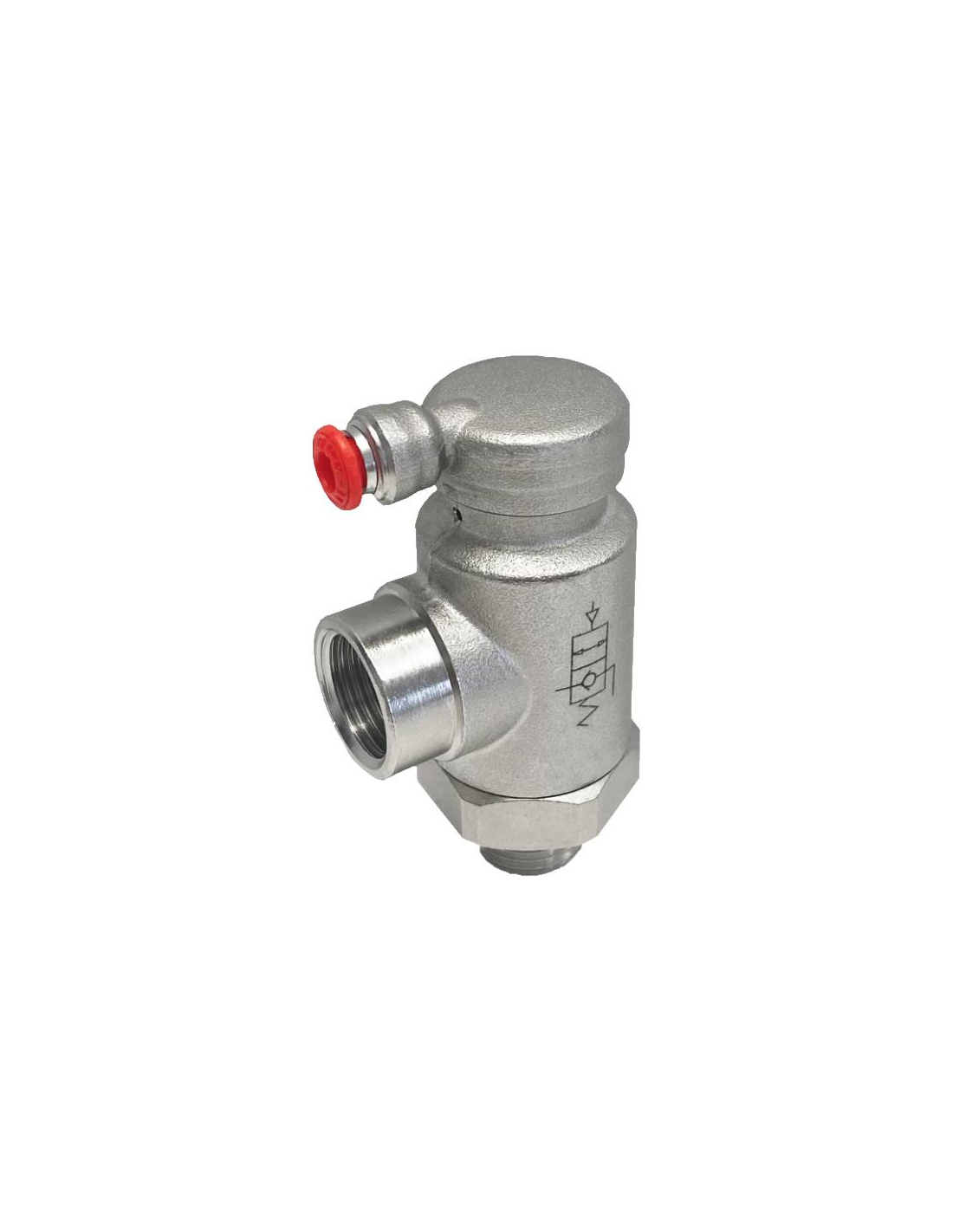

Bidirectional blocking valve, with 1/8" thread , and control connection for 6mm outer diameter tube. This valve allows the complete blocking of the air passage in either direction. The main application of this type of valve is block or prevent the passage of air in a pneumatic circuit. Manufactured in a metallic body.


Reference: 8890 1/8

Screenshot 2023-10-20 114918
aignep


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

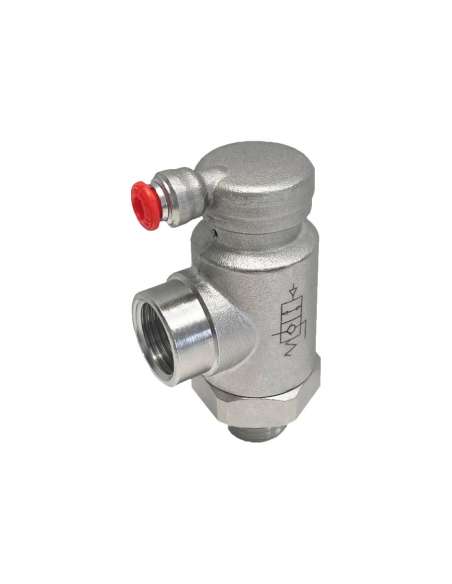

Bidirectional blocking valve, with 1/8" thread , and control connection for 6mm outer diameter tube. Body made of nickel-plated brass and NBR gaskets.

The function of this type of valve is to block the passage of air in either direction, when the external mantle signal is not present.

One-way blocking valve, with 1/8" thread, and control connection for 6mm outer diameter tube. Body made of nickel-plated brass and NBR gaskets.

The function of this type of valve is to block the passage of air in one direction, when the external command signal is present, allowing passage in the opposite direction. When the command signal is not present, passage is allowed in both directions.

In combination with another similar valve, the action of a pneumatic cylinder can be blocked, in case it needs to be forced to stop or block, for example in an emergency.

Assembly diagram for Adajusa bidirectional blocking valve
In the previous circuit assembly example, the cylinder will be blocked if the pressure in the pilot circuit is not present.
Operating diagram for assembling a bidirectional cylinder blocking valve in adajusa movement

In the previous figure, the pilot circuit and the cylinder supply circuit are independent. By putting pressure on the pilot circuit, the blocking valves allow movement of the cylinder in both directions.

Operating diagram for assembling the Adajusa locked cylinder bidirectional blocking valve In the previous figure, by cutting off the supply pressure to the pilot circuit, the valves lock the cylinder in the position it is in, even if the cylinder is under some load.


Lock Valve Features
  • Manufacturer: Aignep
  • Reference: 8890 1/8
  • Thread size: G 1/8"
  • Diameter of the control tube: outer Ø6mm
  • Operating pressure bar : 0.3 ÷ 10
  • Operating temperature °C: -20 ÷ +80
  • Nominal flow rate (6 bar ): 750 NI/min
  • Fluid: compressed air, lubricated or non-lubricated filtered
  • Body: Nickel-plated brass
  • Gaskets: NBR
8880_8890dimensions8890 dimension table
