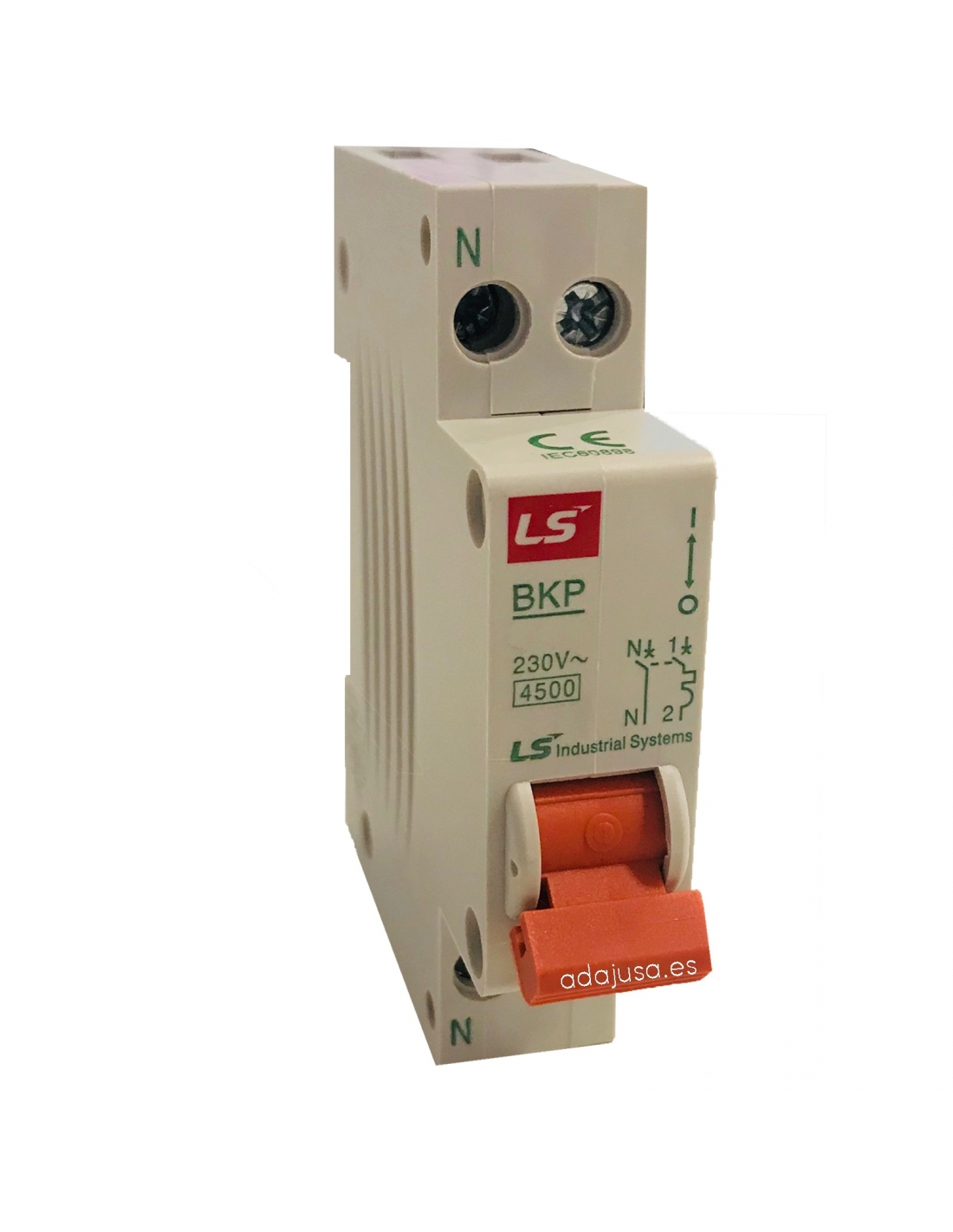

MCB circuit breaker 1 pole + neutral 6A narrow profile - LS

1-pole + neutral 6A narrow-profile MCB circuit breaker for protection against short-circuits and overloads in electrical installations and elements. Protects the active conductor and cuts both conductors. Suitable for use in both single-phase and two-phase installations. High rated breaking capacity, 4500A according to IEC 60898-1.

Ideal for use in both domestic and industrial installations, as well as in machinery automation cabinets.

High reliability and performance, allowing a high number of work cycles.

Auxiliary elements such as trip coils or permanent surge protectors can be added to the right side.

Main features of the magnetothermal switch:

• Manufacturer/Supplier: LS - LG Industrial Systems
• Reference: BKP1P+N C06A
• Nominal intensity of the magnetothermic (In): 6A
• Number of poles: 1P+N
• Type: DZ30 DPN
• Use of the magnetothermic: domestic and tertiary sector
• Rated Breaking capacity : 4500A
• Operating voltage: 240Vac 50/60Hz
• Characteristic curve: C
• Mechanical life: 20000 operations
• Standard: IEC60898
• Marking: CE
• Allows the use of pin type connection combs
• Connection capacity: 10mm² cable
