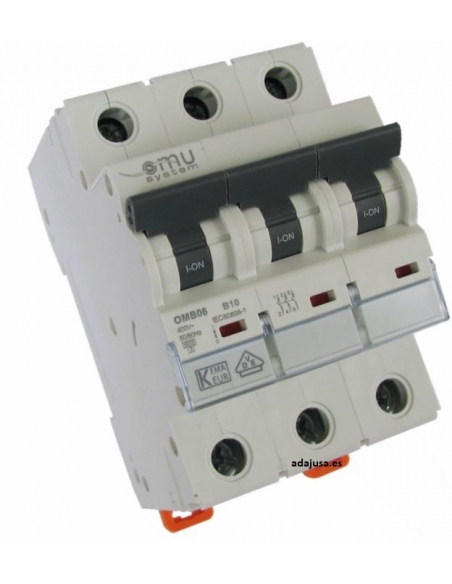

MCB circuit breaker 3 poles 4A OMU adajusa OMB06304C
MCB circuit breaker 3 poles 4A OMU adajusa OMB06304C

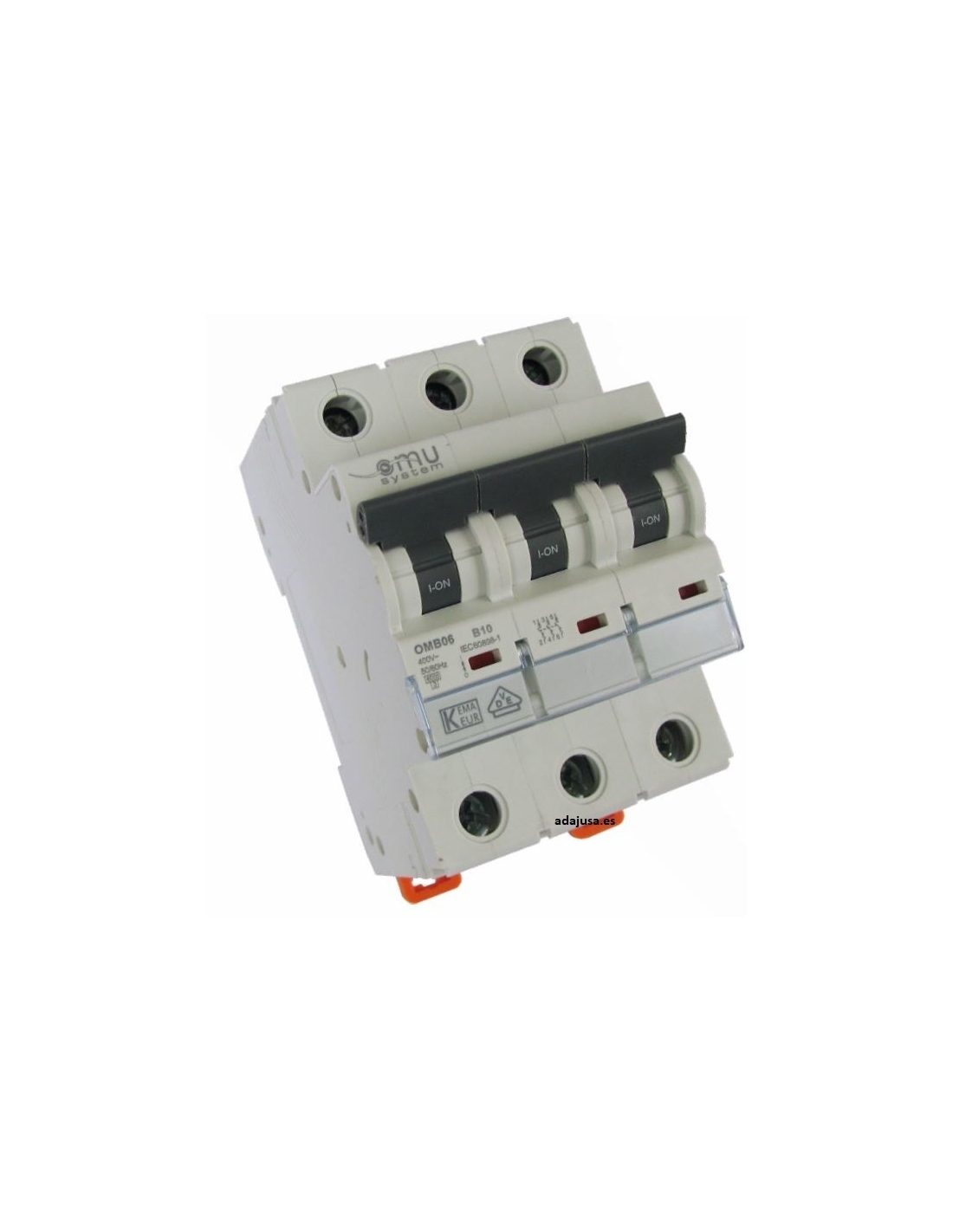

Circuit breaker 3 poles 4A curve C - OMU

€8.14 Tax included

6.78 tax excl.

OMB06304C

MCB circuit breaker 3 poles 4A curve C, for protection against short circuits and overloads in three-phase installations. With an assigned cutting power of 6000A.

Protects both drivers. It can be used in installations and assemblies up to 500VAC.

Manufacturer's Reference: OMB06304C


Esquema electrico magnetotermico 3 polos
Normativa OMU Magnetotermicos
Representative image for illustrative purposes, the supplied article is subject to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


MCB circuit breaker 3 poles 4A 6kA curve "C", for protection against short circuits and overloads in three-phase installations. With an breaking capacity 6kA assigned key, active protection of the poles with status indication. Made of fireproof thermoplastic material. Manufactured according to reference regulations IEC/EN60898-1. High reliability and performance allowing a high number of duty cycles

Ideal for use in both domestic or industrial installations as well as in machine automation cabinets. High reliability and performance allowing a high number of duty cycles. Protects both drivers. Manufactured according to reference regulations IEC/EN60898-1.

As main features of this product range we can review:

  • Compact design and structure
  • Two ways to connect cables and distribution combs
  • Transparent protective cover for identification label protection
  • Visual status indication
  • Supports mounting a large number of accessories

specifications:

  • Manufacturer/Distributor: omu systems
  • Manufacturer's Reference: OMB06304C
  • Mcb Rated Current (In): 4A
  • Number of poles: 3
  • Characteristic curve: C
  • Step: 3 modules
  • breaking capacity (Icn): 6000A (6kA)
  • Maximum operating voltage (Eu): 240/415Vac, 50/60Hz
  • Assigned insulation voltage (Ui): 500Vac
  • Rated pulse resistance voltage (Uimp): 4 KV
  • Protection: IP20
  • Enduring: ≥10000/20000.
  • Operating temperature: -5oC... +40oC.
  • Energy limitation class: Class 3.
  • Terminal type: Screw tightening jaw.
  • Maximum terminal capacity: 16mm2 flexible cable or 25mm2 rigid cable
  • Maximum tightening torque: 2 Nm.
  • Weight: 0.300 Kg.
  • Mounting position: Vertical/Horizontal.
  • Housing and cover material: Fireproof molded thermoplastic.
  • Supports mounting of auxiliary elements: SI.
  • Regulations: EC; IEC/EN 60898-1.


dimensions:

Dimensiones magnetotermicos 3 polos EMU


Questions

Question
Buongiorno
e'disponobile il contatto ausiliario per l'MCB omu 3poli 4A curva C?
Answer

Buongiorno,

Grazie per il suo messaggio.

Le confermiamo che disponiamo di contatti ausiliari compatibili con gli interruttori magnetotermici OMU, inclusi quelli a 3 poli – 4A – curva C.

Può consultare i modelli disponibili nella seguente sezione del nostro sito:
? https://adajusa.it/it/271-accessori-per-interruttori-automatici-e-differenziali

Se ha bisogno di assistenza per identificare l’accessorio corretto, può inviarci una foto o il codice esatto del suo interruttore.

Rimaniamo a disposizione per qualsiasi ulteriore chiarimento.

Cordiali saluti
ADAJUSA
adajusa.it

Verificate che i dati forniti siano compatibili con le vostre esigenze. Tutti i prodotti ADAJUSA sono destinati ad uso industriale e devono essere installati da personale qualificato.

Primax on 05/27/2025 10:41:28

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

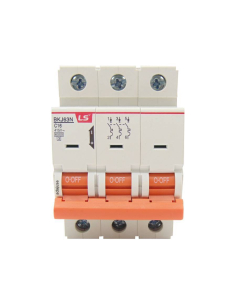

MCB circuit breaker switch 3 poles 10A curve D BKN 3P D10A LS | ADAJUSA MCB circuit breaker switch 3 poles 10A curve D BKN 3P D10A LS | ADAJUSA 2
MCB circuit breakers 3 poles

MCB circuit breaker 3 poles 10A (3x10A) Curve D - LS

LS Electric
BKJ63N3PD10A
€70.99 (€59.16 tax excl.)
MCB circuit breaker 3 poles 10A curve D, for protection against short circuits and overloads, in installations with the presence of motors or machinery with high initial current, preventing it from firing during start-up. With an breaking capacity of 6000A. Reference: BKJ63N 3P D10A Representative image for illustrative purposes, the item supplied will...
Circuit breaker 3 poles 63A (3x63A) - Hyundai Electric
MCB circuit breakers 3 poles

MCB circuit breaker 3 poles 63A (3x63A) - Hyundai Electric

Hyundai Electric
HHGD63M3P063C
€28.00 (€23.33 tax excl.)
3-pole 63A C curve MCB circuit breaker , for protection against short circuits and overloads in three-phase installations. With an assigned breaking capacity of 6000A. Protects both conductors. Can be used in installations and assembly up to 500Vac. Reference: HGD63-M3P063C Representative image for illustrative purposes, the item supplied will correspond...
Circuit breaker 3 poles 100A 10kA - Hyundai Electric
MCB circuit breakers 3 poles

MCB circuit breaker 3 poles 100A 10kA - Hyundai Electric

Hyundai Electric
HHGD1003P100C
€59.65 (€49.71 tax excl.)
3-pole 100A C-curve MCB circuit breaker for short-circuit and overload protection in industrial and tertiary applications. Hyundai brand. With a rated breaking capacity of 10,000A (10kA) according to IEC/EN60898, active pole protection with individual status indication for each pole. Reference: HGD100S-3P100C . Representative image for illustrative...
3 pole 40A three-pole magnetothermic switch Hyundai HGD63-M3P040D | ADAJUSA
Shipping time: 2-3 days
MCB circuit breakers 3 poles

MCB circuit breaker 3 poles 40A (3x40A) curve D - Hyundai Electric

Hyundai Electric
HGD63M3P040D
€27.14 (€22.62 tax excl.)
3-pole 40A D curve MCB circuit breaker , for protection against short circuits and overloads in three-phase installations with the presence of motors or machinery with high initial current, preventing tripping during start-up. Active protection of the poles with individual status indication. Rated Breaking capacity 6kA. It can be used in installations and...
3 pole 20A three-pole magnetothermic switch Hyundai HGD63-M3P020D | ADAJUSA
Shipping time: 2-3 days
MCB circuit breakers 3 poles

MCB circuit breaker 3 poles 20A (3x20A) curve D - Hyundai Electric

Hyundai Electric
HGD63M3P020D
€24.01 (€20.01 tax excl.)
3-pole 20A D curve MCB circuit breaker , for protection against short circuits and overloads in three-phase installations with the presence of motors or machinery with high initial current, preventing tripping during start-up. Active protection of the poles with individual status indication. Rated Breaking capacity 6kA. It can be used in installations and...
Circuit breaker 3 poles 125A 10kA - Hyundai Electric
MCB circuit breakers 3 poles

MCB circuit breaker 3 poles 125A 10kA - Hyundai Electric

Hyundai Electric
HHGD1003P125C
€59.65 (€49.71 tax excl.)
MCB circuit breaker 3 poles 125A curve C, for protection against short circuits and overloads in industrial and tertiary applications. Hyundai brand. With a cutting power assigned according to IEC/EN60898 of 10000A (10kA), active protection of the poles with individual status indication of each of the poles. Reference: HGD100S-3P125C. Representative...

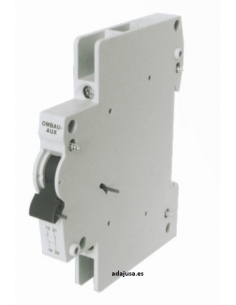

MCB circuit breaker auxiliary contact omu systems adajusa
Accessories for MCB circuit breakers and differential

Auxiliary contact for MCB circuit breaker - OMU

OMU System
OMBAUAUX
€7.62 (€6.35 tax excl.)
Auxiliary contact for MCB circuit breaker,with 1 contact switched NA/NC, indicates the "open" or "closed" position of the MCB circuit breaker switch to which it is associated, is placed on the left side of the magnetothermic. Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

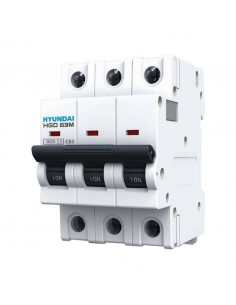

Circuit breaker 3 poles 25A (3x25A) - Hyundai Electric
MCB circuit breakers 3 poles

MCB circuit breaker 3 poles 25A (3x25A) - Hyundai Electric

Hyundai Electric
HHGD63M3P025C
€21.95 (€18.29 tax excl.)
3-pole 25A C-curve MCB circuit breaker , for protection against short circuits and overloads in three-phase installations. With an assigned breaking capacity of 6000A. Protects both conductors. Can be used in installations and assembly up to 500Vac. Reference: HGD63-M3P025C Representative image for illustrative purposes, the item supplied will correspond...

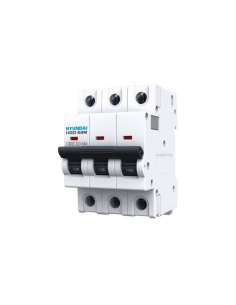

Hyundai HGD63-M3P006D three-pole 6A three-pole magneto-thermal switch | ADAJUSA
Shipping time: 2-3 days
MCB circuit breakers 3 poles

MCB circuit breaker 3 poles 6A (3x6A) curve D - Hyundai Electric

Hyundai Electric
HGD63M3P006D
€25.22 (€21.02 tax excl.)
3-pole 6A curve D MCB circuit breaker , for protection against short circuits and overloads in three-phase installations with the presence of motors or machinery with high initial current, avoiding tripping during startup. Active pole protection with individual status indication. Assigned Breaking capacity 6kA. It can be used in installations and...

Customers who bought this product also bought:

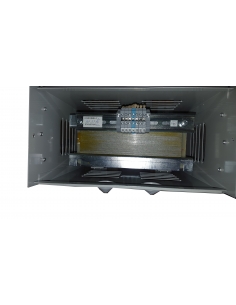

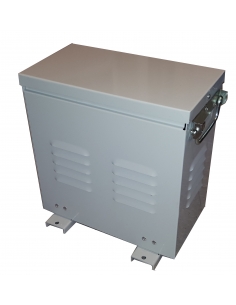

Three-phase autotransformer 230/400V 1 KVA reversible with box Three-phase autotransformer 230/400V 1 KVA reversible with box 2
Single-phase and three-phase autotransformers

Three-phase 230/400V 3 KVA reversible autotransformer with box

MANUMAG
ATT3
€257.65 (€214.71 tax excl.)
Three-phase 3kVA reversible autotransformer with metal case, which allows the adaptation of voltage from 230Vac three-phase to 400Vac three-phase or 400Vac three-phase to 230Vac three-phase. It also generates neutral. It allows to adapt the tension in machinery, motors, pumps, etc., in an economical way.Reference: ATT3  Representative image for...

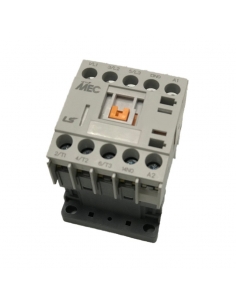

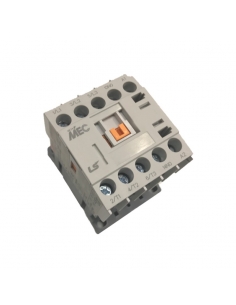

Mini connector LS 12A coil 24Vcc auxiliary contact open NA Mini connector LS 12A coil 24Vcc auxiliary contact open NA 2
