MM3311D CAT III Pen Type Digital Multimeter

MM3311D CAT III Pen Type Digital Multimeter

Name: MM3311D CAT III Pen Type Digital Multimeter
Brand: TRACON
SKU: MM3311D
Price: 35.7192 EUR
Availability: PreOrder

€35.72 Tax included

€29.52 tax excl.

Pencil type digital multimeter measurement category CAT III. Performs direct and alternating voltage measurement, resistance, diode and continuity testing, non-contact voltage detection.

Reference: MM3311D

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

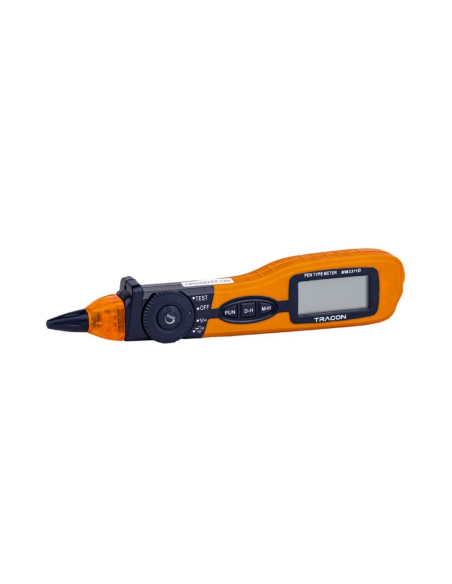

Small pen-type digital multimeter, CAT III measurement category. It performs measurements of voltage, resistance, diode testing, continuity and has non-contact voltage detection with light indicator. Easy-to-use meter, compact size and lightweight with flexible measuring head.

Manufacturer/Supplier: Tracon
Reference: MM3311D

Technical specifications:

DC voltage: 200mV, 2V, 20V, 200V, 600V
AC voltage: 2V, 20V, 200V, 600V
Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ
Diodes: 1.5V / 1mA
Continuity:

Other functions and features:

3.5 digit LCD display
Backlit display
Measurement interval selection: Automatic
HOLD function (data retention )
MAX Values
Low battery indicator
Auto power off
Operating temperature: 0～40°C
Battery: 2 x 1.5V AAA (not included)
Dimensions: 229 × 43 × 25mm
Weight: 120g

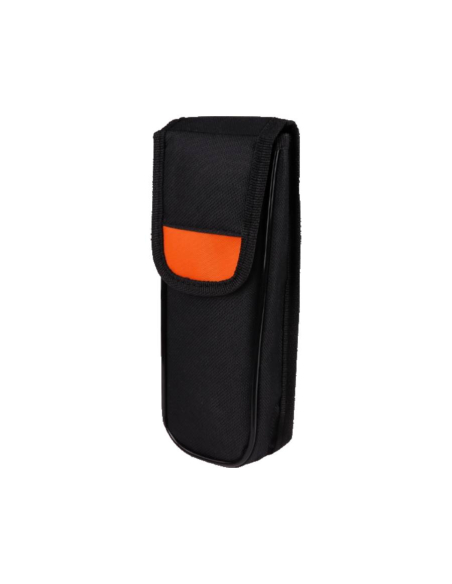

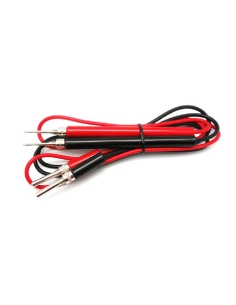

Accessories: Case, test leads
Regulations: EN 61010-1, EN 61326-1

Manual MM3311D_ES

Download (143.91KB)

Instructions for use MM3311D_EN

Download (141.24KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)
