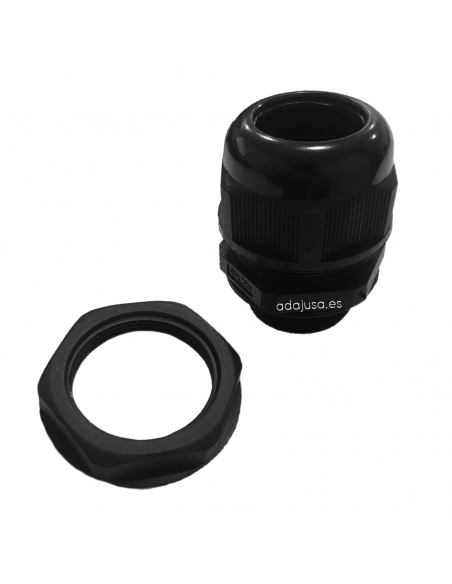

Black polyamide M16 cable glands with nut

M16 black polyamide Cable gland with nut - Gaestopas

Name: M16 black polyamide Cable gland with nut - Gaestopas
Brand: Generico-GAE
SKU: 9921PREPUNM16
Price: 0.516 EUR
Availability: InStock

€0.52 Tax included

€0.43 tax excl.

Polyamide (Nylon) Cable gland with M16 thread , including nut. IP-68 protection rating.

Color: Black (RAL9005).

For electrical cables and hoses with diameters between 5 and 10 mm.

Model: 9921PREPUNM16

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

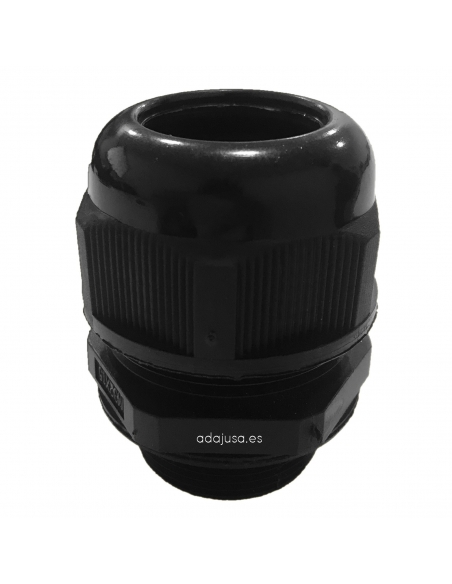

Glands M16 black polyamide without nut

€0.46

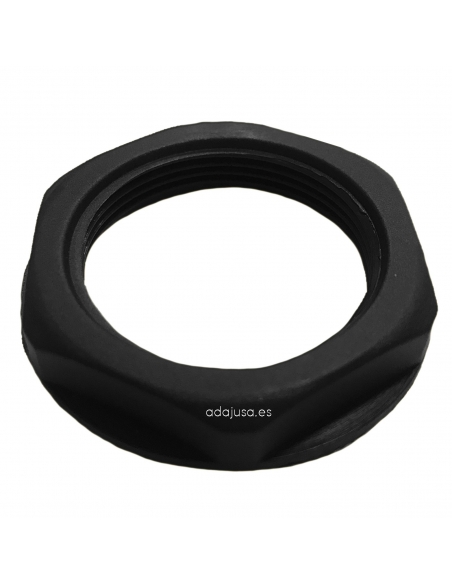

Gland nut M16 Black polyamide

€0.06

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

M16 Cable gland made of polyamide with nut , for electrical applications.

Technical characteristics:

Thread: M16.
Colour: Black (RAL 9005).
Material: Halogen-free polyamide 6.
Neoprene retaining gasket.
High fire resistance.
Working temperature: -30º to 80º C.
Maximum intermittent working temperature: up to +120ºC.
Degree of protection: IP68 (On circular section conductor).
International standard: EN 50262.
Certifications: VDE (No. 40004337).
Panel drill diameter: 16.5 mm.
Cable diameter: 5..10 mm.
Key width: 22mm.
Thread length: 8mm.
International standard: EN 50262.
Certifications: VDE (No. 40004337).

Professional use material, install in compliance with current regulations at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Metric thread glands

Metal cable glands M16 with nut

TRACON

MGF-16

€1.85 (€1.54 tax excl.)

Metal cable gland with M16x1,5mm thread, nut and NBR gasket included. IP66 protection degree.Reference: MGF-16 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Black polyamide M12 cable glands with nut

Black polyamide M12 cable glands with nut 2

Pack

Metric thread glands

Glands M12 Black polyamide cable with nut - Gaestopas

Generico-GAE

9921PREPUNM12

€0.52 (€0.43 tax excl.)

M12 thread polyamide (Nylon) glands,with nut included. Degree of protection IP-68. Color: Black (RAL9005). For electrical cables and hoses of diameters between 3 and 6.5mm. Model: 9921PREPUNM12Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Metric thread glands

Glands M20 black polyamide without nut

Generico-GAE

364.2000.1

€0.50 (€0.42 tax excl.)

Polyamide glands (Nylon) thread M20, NO nut included. Degree of protection IP-68. Color: Black (RAL9005). For electrical cables and hoses of diameters between 10 and 14mm.Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Metric thread glands

Glands M16 black polyamide without nut

Generico-GAE

364.1500.1

€0.46 (€0.38 tax excl.)

M16 thread polyamide (Nylon) glands, NO nut included. Degree of protection IP-68. Color: Black (RAL9005). For electrical cables and hoses of diameters between 5 and 10mm.Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Metric thread glands

Glands M25 black polyamide without nut

Generico-GAE

364.2500.1

€0.92 (€0.77 tax excl.)

M25 thread polyamide (Nylon) glands, NO nut included. Degree of protection IP-68. Color: Black (RAL9005). For electrical cables and hoses of diameters between 13 and 18mm.Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Metric thread glands

Glands M25 grey polyamide with nut

XBS

XBS-M25

€0.44 (€0.37 tax excl.)

Polyamide (Nylon) glands with M25x1.5mm thread, NUT and NBR gasket included. Grey.Ref: XBS-M25 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Metric thread glands

Gland nut M20 Black polyamide

Generico-GAE

793.2000.1

€0.11 (€0.09 tax excl.)

Nut for polyamide glands (Nylon) thread M20. Degree of protection IP-68. Color: Black (RAL9005).Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Metric thread glands

Glands M63 grey polyamide with nut

XBS

XBS-M63

€2.80 (€2.33 tax excl.)

Polyamide (Nylon) glands with M63x1.5mm thread, NUT and NBR gasket included. Grey.Ref: XBS-M63 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Metric thread glands

M40 metal cable glands with nut

TRACON

MGF-40

€10.88 (€9.07 tax excl.)

Metal cable gland with M40x1,5mm thread, nut and NBR gasket included. Degree of protection IP66.Reference: MGF-40Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Metric thread glands

Glands M32 black polyamide nutless

Generico-GAE

364.3200.1

€1.80 (€1.50 tax excl.)

M32 thread polyamide (Nylon) glands, NO nut included. Degree of protection IP-68. Color: Black (RAL9005). For electrical cables and hoses of diameters between 18 and 25mm.Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Metric thread glands

Glands M20 grey polyamide with nut

XBS

XBS-M20

€0.25 (€0.21 tax excl.)

Polyamide (Nylon) cable car presses with M20x1.5mm thread, nut and NBR gasket included. Grey.Reference: XBS-M20 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Metric thread glands

Glands M12 black polyamide without nut

Generico-GAE

364.1200.1

€0.46 (€0.38 tax excl.)

Polyamide glands (Nylon) thread M12, NO nut included. Degree of protection IP-68. Color: Black (RAL9005). For electrical cables and hoses of diameters between 3 and 6.5mm.Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

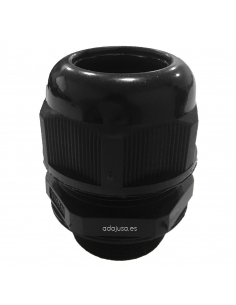

Black polyamide M20 cable glands with nut

Black polyamide M20 cable glands with nut 2

Pack

Metric thread glands

Glands M20 black polyamide cable with nut - Gaestopas

Generico-GAE

9921PREPUNM20

€0.61 (€0.51 tax excl.)

Polyamide (Nylon) Cable gland with M20 thread , including nut. IP-68 protection rating. Color: Black (RAL9005). For electrical cables and hoses with diameters between 10 and 14 mm. Model: 9921PREPUNM20 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Metric thread glands

Glands M63 black polyamide nutless

Generico-GAE

364.6300.1

€6.47 (€5.39 tax excl.)

M63 thread polyamide (Nylon) glands, NO nut included. Degree of protection IP-68. Color: Black (RAL9005). For electrical cables and hoses of diameters between 34 and 44mm.Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Metric thread glands

Glands M40 grey polyamide with nut

XBS

XBS-M40

€1.75 (€1.46 tax excl.)

Polyamide (Nylon) glands with M40x1.5mm thread, nut and NBR gasket included. Grey.Reference: XBS-M40 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Metric thread glands

Metal gland M63 with nut

TRACON

MGF-63

€33.12 (€27.60 tax excl.)

Metal cable gland with M63x1,5mm thread, nut and NBR gasket included. Degree of protection IP66.Reference: MGF-63 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Customers who bought this product also bought:

Connection terminals screw - Weidmuller

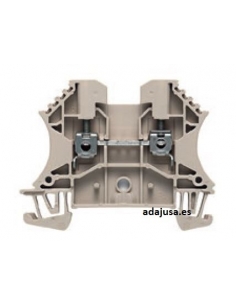

Terminal block 10 mm WDU 10 - Weidmuller
