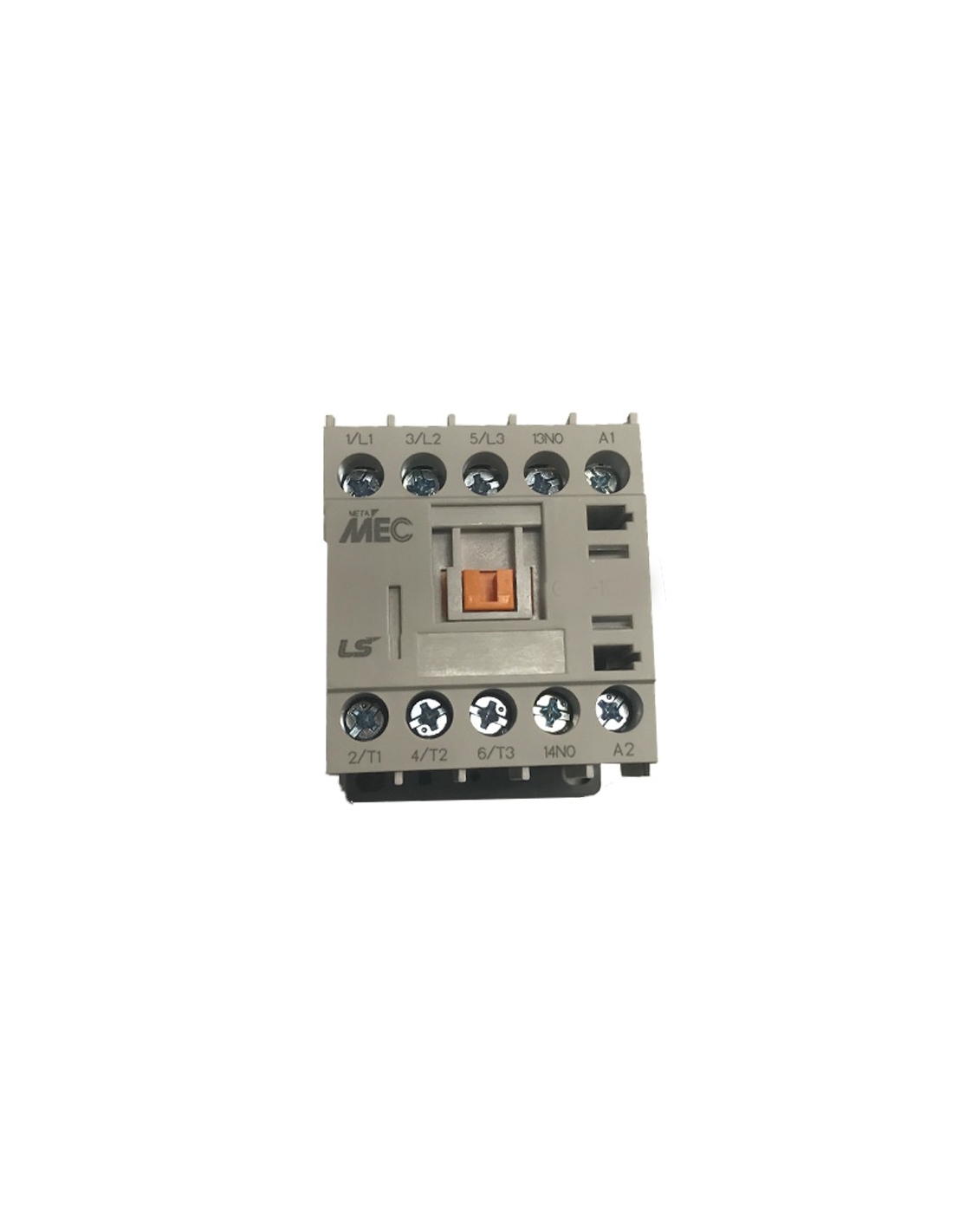

Mini connector 9A coil 24Vac NC closed auxiliary contact - LS

€16.15 Tax included

€13.35 tax excl.

Electric three-phase mini connector for motor control, heating, lighting, ventilation, or general uses, 3 pole with a current capacity of 9A AC3 category or 20A category AC1, with 24Vac coil, the contactor is equipped with a closed auxiliary contact (NC).

Ref: GMC-9M-01-AC24

Esquema electrico contactor 3 polos contacto auxiliar cerrado

Logotipo LS LG industrial Systems

No queries yet, leave the first!


9A three-phase LS mini connector (3 poles) in AC3 category or 20A in AC1 category, contactor coil voltage is 24 Vac, with NC closed auxiliary contact. Fixing the contactor by screws or DIN rail. The intended uses of the contactor are for electric motor control, heating, lighting, ventilation, and in general uses.

General characteristics of the mini contactor:

  • Manufacturer: LS.
  • Ref: GMC-9M-01-AC24
  • Number of poles: 3.
  • Mini contactor assigned current in AC3: 9A.
  • Maximum thermal current Ith mini contactor: 20A.
  • Maximum voltage: 660 V.
  • Maximum power: 3-AC3 230V: 2.2 Kw.
  • Maximum power: 3-AC3 400V: 3 Kw.
  • Control voltage (coil): 24 Vac 50/60 Hz.
  • Auxiliary contact integrated into the mini contactor: 1 Closed (NC)

Dimensiones contactor LS vista frontal

Minicontactor LS Vista lateral y posterior
