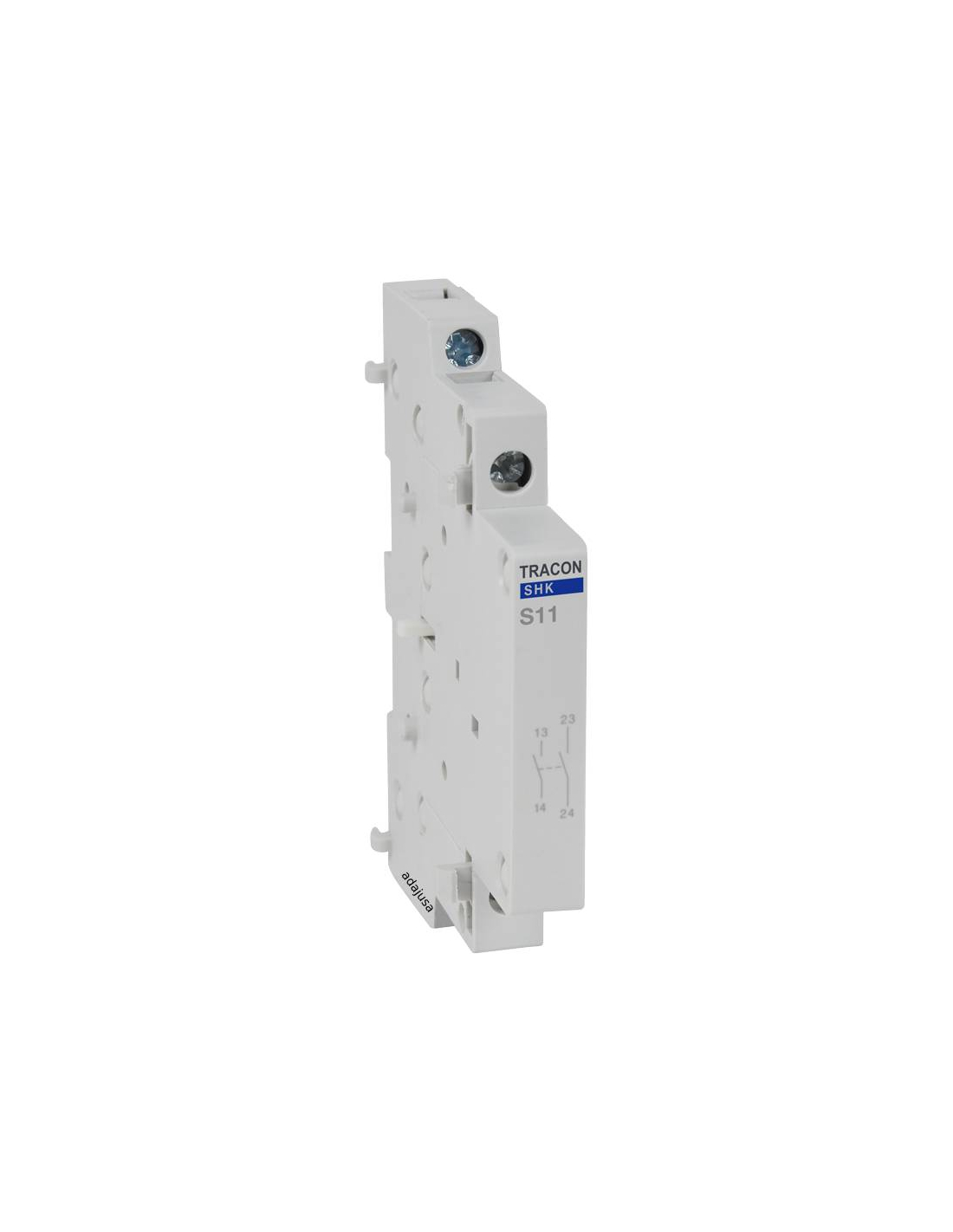

Auxiliary contact chamber modular contactor 1NO+1NC - Tracon

Name: Auxiliary contact chamber modular contactor 1NO+1NC - Tracon
Brand: TRACON
SKU: SHK-S11
Price: 5.6144 EUR
Availability: InStock

€5.61 Tax included

€4.64 tax excl.

Auxiliary chamber for modular contactor, with 2 instantaneous contacts, open (NO) and closed (NC). It is located on the right side of the modular contactor.

Reference: SHK-S11

DIAGRAMSHK11

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

auxiliary chamber equipped with 2 instantaneous contacts, 1 open (NO) and one closed (NC), to be coupled to modular contactors. It is located on the right side of the contactor. It allows the contactor to be provided with 2 auxiliary contacts for maneuvers and signaling.

General characteristics:

Manufacturer: Tracon
Reference: SHK-S11
Number of contacts:2 (NO+NC).
Rated switching current:5A
AC12 switching current: 5A (230V)
AC15 switching current: 2A (230V)
DC13 switching current: 1A (130V)
Rated voltage: 230/400 Vac
Cable section: 1-6 mm2
Protection grade: IP20
Ambient temperature: -5..+ 60ºC

Material for professional use, it must be installed by qualified personnel, respecting the regulations in force at the installation site.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Anexo instruções utilização elec

Download (414.22KB)

Annexe mode d'emploi elec.

Download (410.39KB)

Annex instructions for use elec.

Download (410.3KB)

Allegato istruzioni l'uso elec

Download (406.25KB)

Anhang Gebrauchsanweisung elec

Download (412.12KB)
