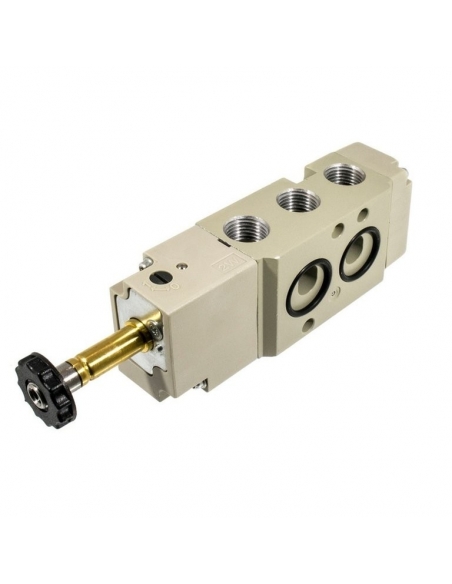

Monostable NAMUR solenoid valve 4/2 Metal Work - ADAJUSA
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22
Monostable NAMUR solenoid valve 4/2 with coil 24Vac Metal Work - ADAJUSA
Monostable NAMUR solenoid valve 4/2 with coil 24Vac Metal Work - ADAJUSA
Monostable NAMUR solenoid valve 4/2 Metal Work - ADAJUSA
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22

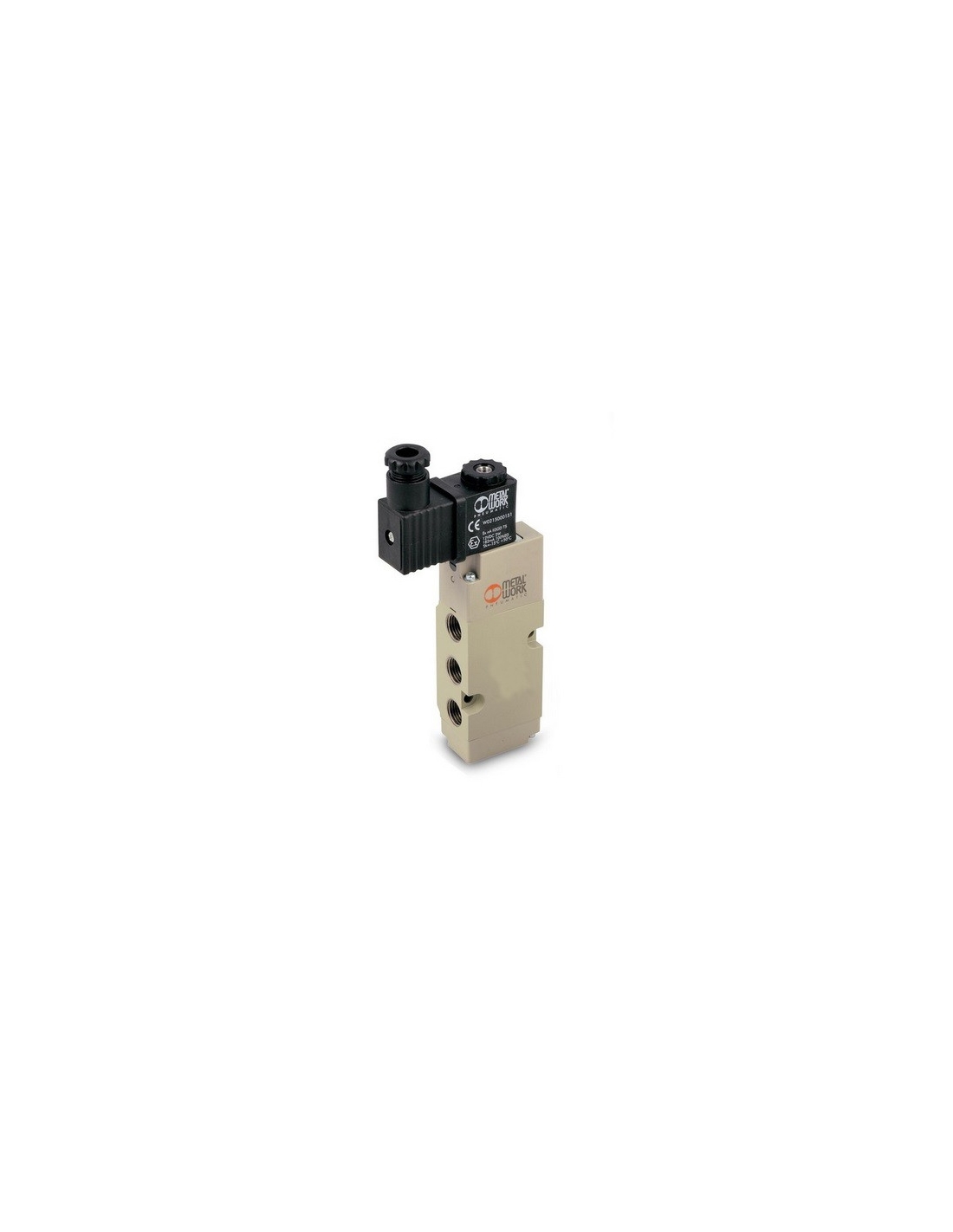

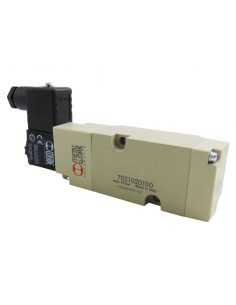

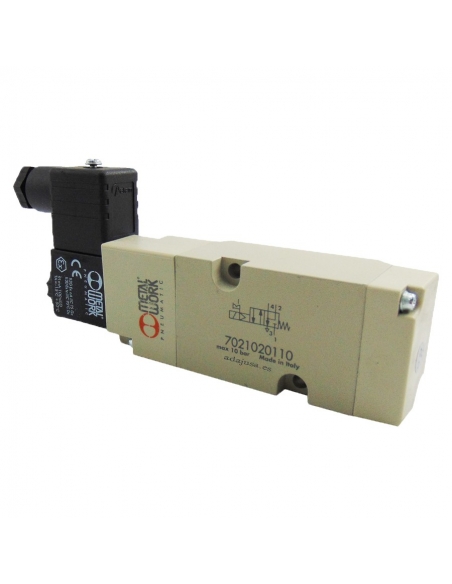

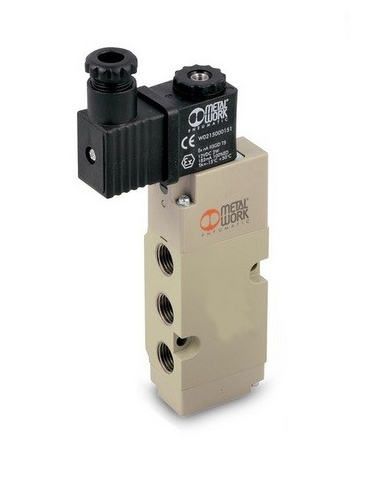

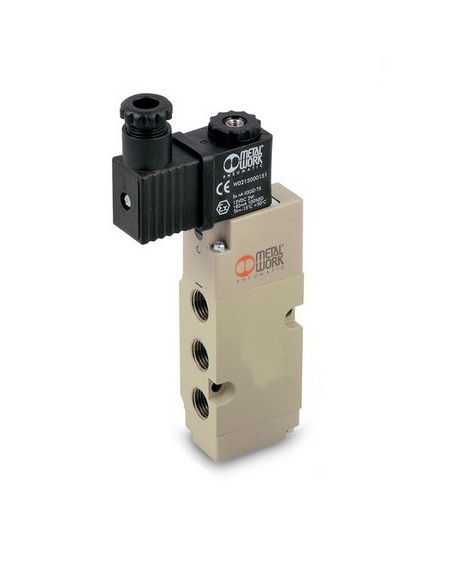

Solenoid valve NAMUR monostable 4/2 110Vac - Metal Work

€77.39 Tax included

€64.49 tax excl.

PK-42110

Pneumatic solenoid valve NAMUR monostable 4/2 NC (normally closed). With connector and coil 110Vac






Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

Pneumatic solenoid valve NAMUR monostable 4/2 NC (normally closed). To be installed directly on pneumatic turning actuators.

The supply includes:
  • Pneumatic solenoid valve NAMUR 4/2 monostable
  • Coil 110 Vac 3.50 VA
  • Connector 22 mm


Specifications:
  • Solenoid valve manufacturer: Metal Work.
  • Reference: 7021020110
  • Standard: NAMUR.
  • Operating pressure (bar): 2.5 ÷ 10
  • Minimum drive pressure (bar): 2.5
  • Operating temperature (ºC): -10 ÷ +60
  • Nominal diameter (mm): 7.5
  • Conductance C (Nl/min · bar): 264.26
  • Critical ratio b (bar/bar): 0.27
  • Flow rate at 6 bar ΔP 0.5 bar (Nl/min): 750
  • Flow rate at 6 bar ΔP 1 bar (0.1 Mpa - 14.5 psi) (Nl/min): 1100
  • Pneumatic monostable TRA/TRR at 6 bar (ms): 7 / 15
  • Power: 110 Vac
  • Voltage: 3.50 VA




* In the piston return phase, the air in chamber A is communicated from that leaving chamber B. In this way, dirty air from penetrating the external environment is prevented.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
