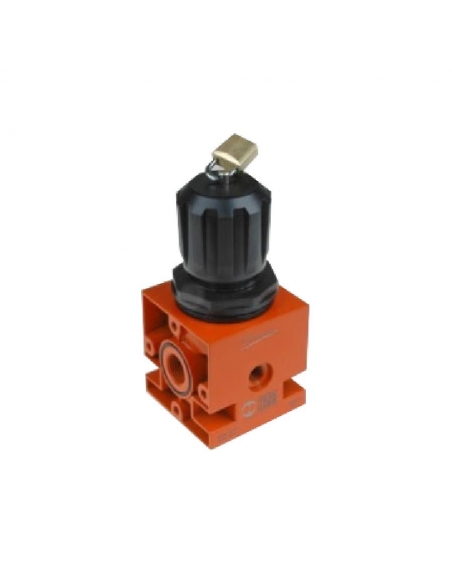

Lockable pressure regulator 1/4 012 bar New Deal - Metal Work

Lockable pressure regulator of 1/4 regulation 0-12 bar , with padlock closure. New Deal Group. It has a pin hole projecting from the top of the knob, when the knob is in the "push-lock" position the padlock can be inserted into the hole. The padlock and two keys are supplied with the regulator.

Note: Pressure gauge not included in the supply, it has to be ordered separately.

Technical characteristics.

• Manufacturer: Metal Work
• Reference: 1210014
• Threaded connection size: 1/4.
• Regulation range: 0-12 bar .
• Maximum inlet pressure: 18 bar .
• Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi) ( Nl/min): 200
• Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) (Nl/min): 650
• Maximum temperature: 50ºC.
• Mounting position: any position.
• Fluid: Air filtering, with or without lubrication (continuous lubrication)
• Wall fixing screws: M4x40.
• Pressure gauge connection: 1/8".

For other models or sizes consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
