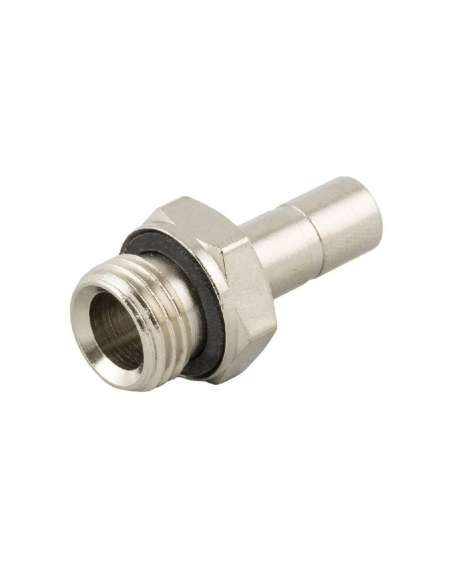

M5 cylindrical male automatic adapter for 6 mm tube Series 50000 - Aignep

M5 cylindrical male automatic adapter for 6 mm tube Series 50000 - Aignep

€0.91 Tax included

€0.75 tax excl.

Automatic adapter for 6mm outer Ø tube. Quick connection, with M5 male thread, made of chrome-plated brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .

Series: 50000
Reference: 50600 6 M5




aignep
normative


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Automatic adapter for 6mm outer Ø tube, quick connection, and with M5 male thread, made of chrome-plated brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; The clamping spring clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the tube fitting. In the fittings, the fitting ring has slots for the screwdriver to facilitate disconnection in applications that are inaccessible to the fingers.

Technical characteristics:

  • Manufacturer: Aignep .
  • Reference: 50600 6 M5
  • Thread: M5
  • External Ø of the tube: 6mm.
  • Fluid: Vacuum - Compressed air.
  • Operating pressure: -0.99 bar to 20 bar .
  • Material: Chromed brass.
  • Tube extractor ring: acetal resin
  • retention gasket: NBR.
  • Clamping spring: stainless steel.
  • Working temperature: -20ºC to +80ºC.
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas conforming to ISO 228 Class A
    • ISO R/262 compliant metric


50600dimensions
50600TD

Material for professional use, install in compliance with the regulations in force at the installation site.
