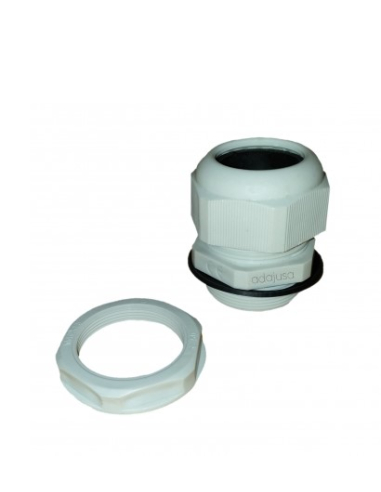

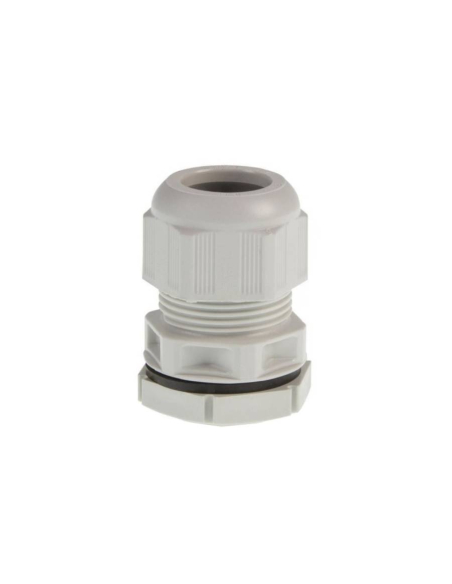

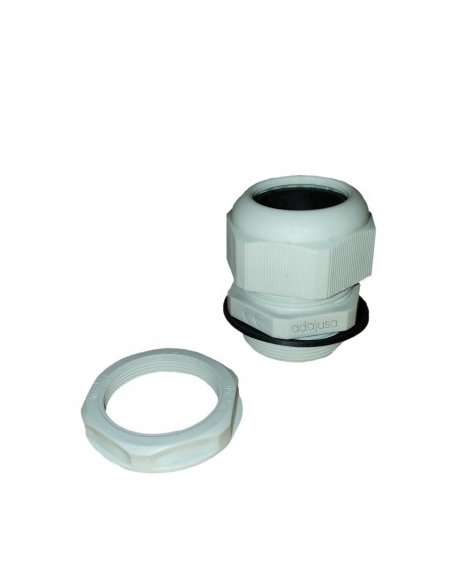

Cable gland PG7 polyamide with nut

€0.13 Tax included

€0.11 tax excl.

Polyamide (Nylon) Cable gland , PG7 thread, with nut, nitrile (NBR) gasket. IP68 protection grade. Color Light gray, RAL 7035.

Reference: XBS -PG7

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

PG7 Cable gland made of polyamide with nut and nitrile gasket included in the supply. IP68 protection grade.

The supply includes:

PG 7 Cable gland
PG7 nut
Board

Characteristics:

Manufacturer/Supplier: XBS /Mixwill
Reference: XBS -PG7
Thread: PG7
Color: Gray RAL 7035
Material: Polyamide 6.6
High fire resistance
Nitrile Gasket (NBR)
Gasket color: Black (RAL 9005)
Working temperature: -20º ÷ 80º C.
Protection degree: IP68 (On circular section conductor).
Hole diameter in panel: 12.5 mm.
Cable diameter: 3 ÷ 6.5 mm.
Key width: 16mm

Stuffing box dimensions

AG: PG7 thread
GL: 8mm
H: 21mm.

Material for professional use, install in compliance with the regulations in force at the installation site.
