€5.18 Tax included

€4.28 tax excl.

Plug for 32mm outer diameter pipe, made of nylon. Quick and easy assembly for end of line in compressed air, vacuum and inert gas networks and installations.


Reference: R221.032.000




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

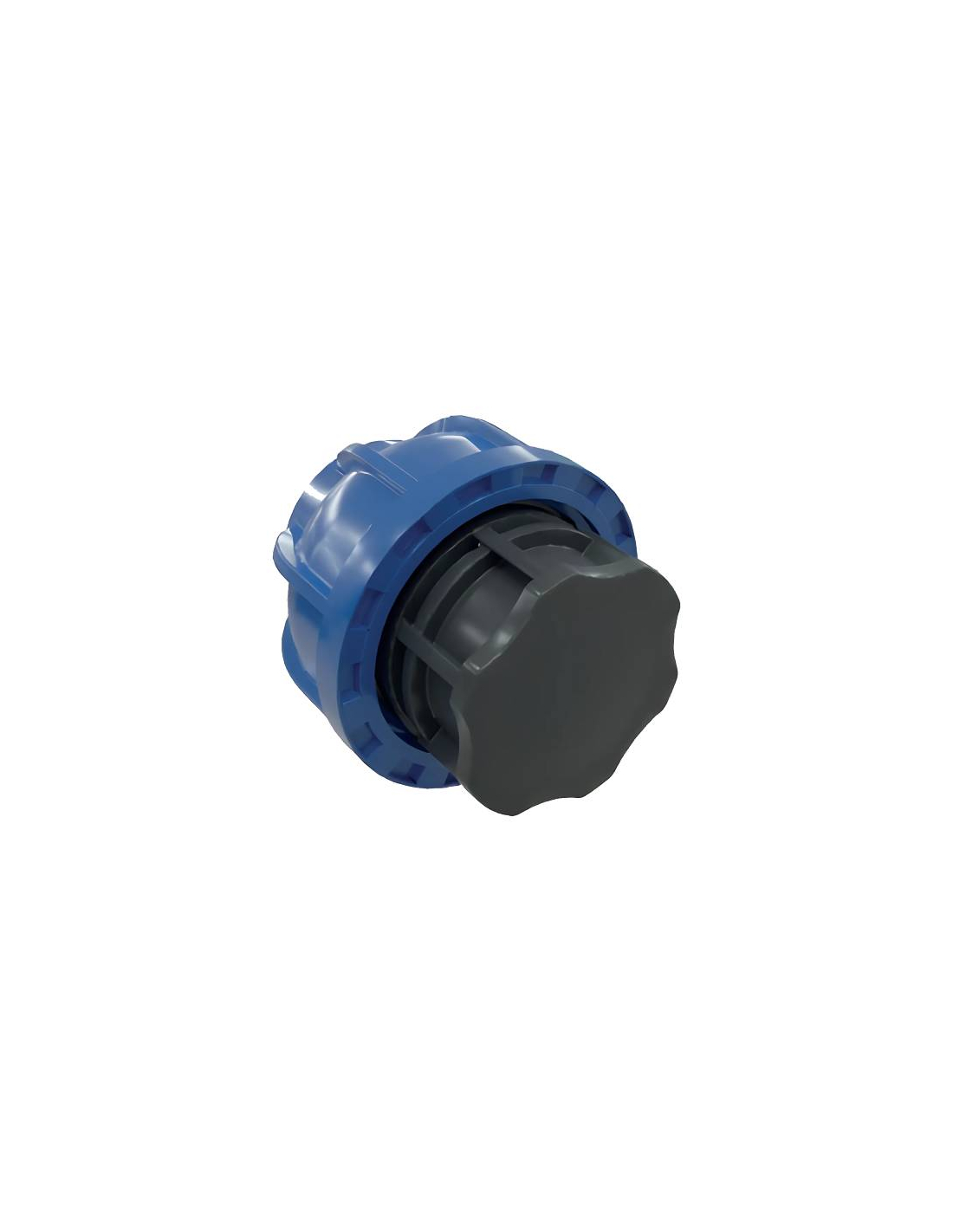

Plug blind for 32mm outer diameter pipe, black nylon body and blue nylon nut, NBR O-ring. This type of plug allows a simple and quick assembly in end-of-line sections in compressed air, vacuum and inert gases such as nitrogen and argon networks and installations, as it has a quick coupling system. Maximum working pressure 12,5 bar.




Characteristics:

  • Manufacturer/Supplier: Sicomat/Metalwork
  • Part number: R221.032.000
  • Tube diameter: 32mm
  • Material: Nylon (Body: Black Nylon / Nut: Blue Nylon)
  • Retaining: NBR
  • Application: Compressed air / Vacuum / Nitrogen
  • Maximum pressure conditions: -0,8 to 12,5bar
  • Temperature conditions: -20ºC to +70ºC
  • Dimensions: A = 62mm ; B =63mm
  • Weight: 89g
  • All products in the SicoAir Line range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 requirements, are non-flammable and limit the spread of flame.









Material for professional use, install in compliance with the regulations in force at the place of installation.
