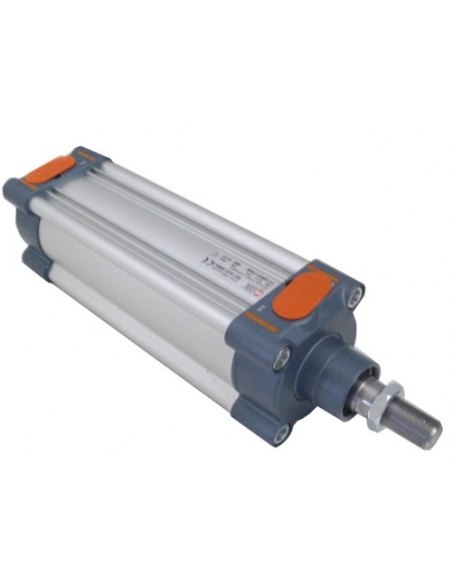

80x50 double acting cylinder - Metal Work

€165.68 Tax included

138.07 tax excl.

1213800050AN

Pneumatic cylinder diameter 80x50 double magnetic effect. With pneumatic cushioning, aluminum sleeve and chrome-plated steel stem.

Reference: 1213800050AN

Double-acting cylinder pneumatic diagram

Metal Work Logo

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


Pneumatic cylinder diameter 80 mm stroke 50mm, double acting with pneumatic cushioning and prepared to install magnetic detectors. The pneumatic cylinder is manufactured according to ISO 15552 (Ex ISO 6431), with an aluminum jacket. Chromed steel stem. Wide range of accessories for mounting the pneumatic cylinder.

Technical characteristics of the pneumatic cylinder:

  • Manufacturer: Metal Work .
  • Manufacturer reference: 12130800050 (121A0800050 – 1210800050)
  • Diameter and stroke: Ø80x50 mm.
  • Type: Double acting pneumatic cylinder.
  • Damping: pneumatic.
  • Fluid type: Air with or without lubrication.
  • Manufacturing standard: ISO 15552 (EX ISO 6431)
  • Maximum operating pressure: 10 Bar.
  • Gasket type: NBR.
  • Operating temperature: -10ºC to +70ºC.
  • Type of construction: Chromed steel stem, aluminum sleeve.
  • Air inlet thread size: G 3/8”.
  • Cylinder rod thread: M20x1.5
  • Weight: 3.19 Kg.
  • Theoretical maximum force that the cylinder can develop when thrust:

Pressure 5 kg/cm²: 251.3 Kg.

Pressure 6 kg/cm²: 301.6 Kg.

Pressure 7 kg/cm²: 351.9 Kg.

  • Theoretical maximum force that the cylinder can develop in traction:

Pressure 5 kg/cm²: 226.8 Kg.

Pressure 6 kg/cm²: 272.1 Kg.

Pressure 7 kg/cm²: 317.5 Kg.

Dimensions of pneumatic cylinders diameter 80x50


Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
Hola, querría saber si disponen de kits de reparación para este cilindro, dispongo de varios en mi fabrica y se comunican las dos cámaras del embolo, el embolo dispone de un cuerpo que sujeta un reten, este cuerpo ya sea por golpes durante el funcionamiento o por el tiempo de trabajo se quiebra al ser de plastico, pasa el aire al otro lado de la camara y se compensan las presiones perdiendo efectividad, ademas las perdidas de aire comprimido.
Answer
Buenos días,
Lamento indicarle que no disponemos de este tipo de kit.
Saludos
Ricardo Gómez Broseta on 09/17/2018 16:41:12

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Pneumatic cylinder diameter 80mm stroke 25 standard LH-080-0025 Aignep | ADAJUSA : price Pneumatic cylinder diameter 80mm stroke 25 standard LH-080-0025 Aignep | ADAJUSA : price 2
Pneumatic cylinders .80

Pneumatic cylinder 80x25 double acting LH0800025- Aignep

Aignep
LH-080-0025
€115.08 (€95.90 tax excl.)
Pneumatic cylinder Ø80 stroke 25mm, double magnetic effect and with pneumatic cushioning. Made in Italy according to ISO 15552 (Ex ISO 6431). Extruded aluminum body with grooves for magnetic detectors, chrome-plated steel piston rod. ATEX cylinders as standard.Reference: LH0800025 Representative image for illustrative purposes, the item supplied will...
Pneumatic cylinder diameter 80mm stroke 75 standard LH-080-0075 Aignep | ADAJUSA : price Pneumatic cylinder diameter 80mm stroke 75 standard LH-080-0075 Aignep | ADAJUSA : price 2
Pneumatic cylinders .80

Pneumatic cylinder 80x75 double acting LH0800075- Aignep

Aignep
LH-080-0075
€123.08 (€102.57 tax excl.)
Pneumatic cylinder Ø80 stroke 75mm, double magnetic effect and with pneumatic cushioning. Made in Italy according to ISO 15552 (Ex ISO 6431). Extruded aluminum body with grooves for magnetic detectors, chrome-plated steel piston rod. ATEX cylinders as standard.Reference: LH0800075 Representative image for illustrative purposes, the item supplied will...

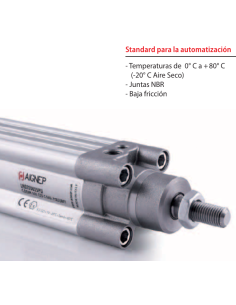

Pneumatic cylinder diameter 80mm stroke 800 standard LH-080-0800 Aignep | ADAJUSA : price Pneumatic cylinder diameter 80mm stroke 800 standard LH-080-0800 Aignep | ADAJUSA : price 2
Pneumatic cylinders .80

Pneumatic cylinder 80x700 double effect LH0800700- Aignep

Aignep
LH-080-0800
€237.32 (€197.77 tax excl.)
Pneumatic cylinder Ø80 stroke 800mm, double magnetic effect and with pneumatic cushioning. Made in Italy according to ISO 15552 (Ex ISO 6431). Extruded aluminum body with grooves for magnetic detectors, chrome-plated steel piston rod. ATEX cylinders as standard.Reference: LH0800800 Representative image for illustrative purposes, the item supplied will...

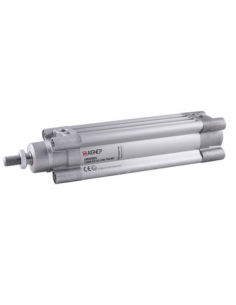

Pneumatic cylinder diameter 80mm stroke 350 standard LH-080-0350 Aignep | ADAJUSA : price Pneumatic cylinder diameter 80mm stroke 350 standard LH-080-0350 Aignep | ADAJUSA : price 2
Pneumatic cylinders .80

Pneumatic cylinder 80x300 doble efecto LH0800300- Aignep

Aignep
LH-080-0350
€166.55 (€138.79 tax excl.)
Pneumatic cylinder Ø80 stroke 350mm, double magnetic effect and with pneumatic cushioning. Made in Italy according to ISO 15552 (Ex ISO 6431). Extruded aluminum body with grooves for magnetic detectors, chrome-plated steel piston rod. ATEX cylinders as standard.Reference: LH0800350 Representative image for illustrative purposes, the item supplied will...
Pneumatic cylinder diameter 80mm stroke 320 standard LH-080-0320 Aignep | ADAJUSA : price Pneumatic cylinder diameter 80mm stroke 320 standard LH-080-0320 Aignep | ADAJUSA : price 2
Pneumatic cylinders .80

Pneumatic cylinder 80x320 double acting LH0800320- LH0800320- Aignep

Aignep
LH-080-0320
€162.12 (€135.10 tax excl.)
Pneumatic cylinder Ø80 stroke 320mm, double magnetic effect and with pneumatic cushioning. Made in Italy according to ISO 15552 (Ex ISO 6431). Extruded aluminum body with grooves for magnetic detectors, chrome-plated steel piston rod. ATEX cylinders as standard.Reference: LH0800320 Representative image for illustrative purposes, the item supplied will...
Pneumatic cylinder diameter 80mm stroke 160 standard LH-080-0160 Aignep | ADAJUSA : price Pneumatic cylinder diameter 80mm stroke 160 standard LH-080-0160 Aignep | ADAJUSA : price 2
Pneumatic cylinders .80

Pneumatic cylinder 80x160 double-acting LH0800160- Aignep

Aignep
LH-080-0160
€136.68 (€113.90 tax excl.)
Pneumatic cylinder Ø80 stroke 160mm, double magnetic effect and with pneumatic cushioning. Made in Italy according to ISO 15552 (Ex ISO 6431). Extruded aluminum body with grooves for magnetic detectors, chrome-plated steel piston rod. ATEX cylinders as standard.Reference: LH0800160 Representative image for illustrative purposes, the item supplied will...

Customers who bought this product also bought:

Endless reducer crown Size 90 Flange PAM 250/28 - Motor housing 100 B5 Endless reducer crown Size 90 Flange PAM 250/28 - Motor housing 100 B5 2
Endless crown reducers

Endless reducer crown Size 90 Flange PAM 250/28 - Motor housing 100 B5

Generico-MOT
9R090xxx100B5
€274.46 (€228.72 tax excl.)
With hollow output shaft of Ø35mm, and input flange PAM 250/28 (Ø Ext 250mm and Ø Input shaft 28mm) type B5, suitable for motors with housing size 100. Reduction ratios: 7,5-10-15-20-25-30. The powers of the usual engines at 1500 rpm are: 3CV Max. net. i=30. 4CV Max. net. i=20. 5.5CV Max. net. i=10. Representative image for illustrative...

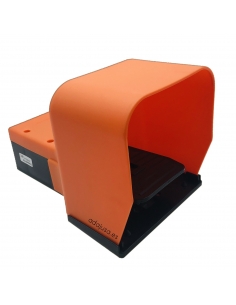

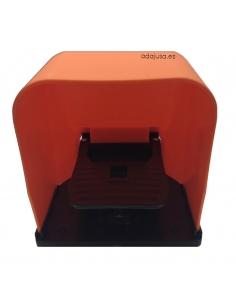

Monostable pneumatic pedal with protection - Metal Work Monostable pneumatic pedal with protection - Metal Work 2
