Pneumatic cylinder 16x25 double-acting - Mindman

€27.36 Tax included

€22.61 tax excl.

Pneumatic cylinder Ø16x25 double acting, magnetic.
Part number: 281MCMI110160025
https://rodavigo.net/datos/logos-marcas-png/th_mindman.png
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated
.

No queries yet, leave the first!

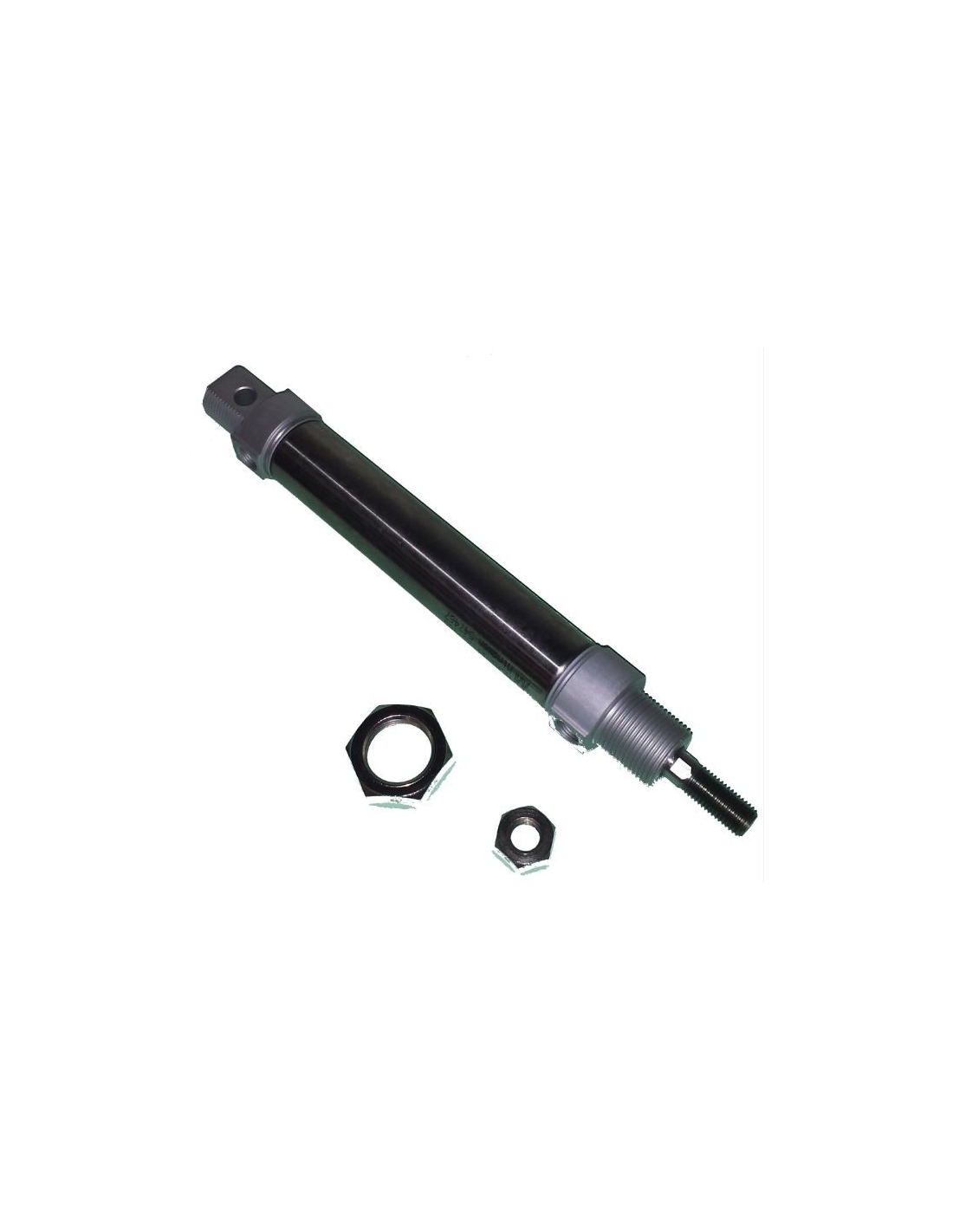

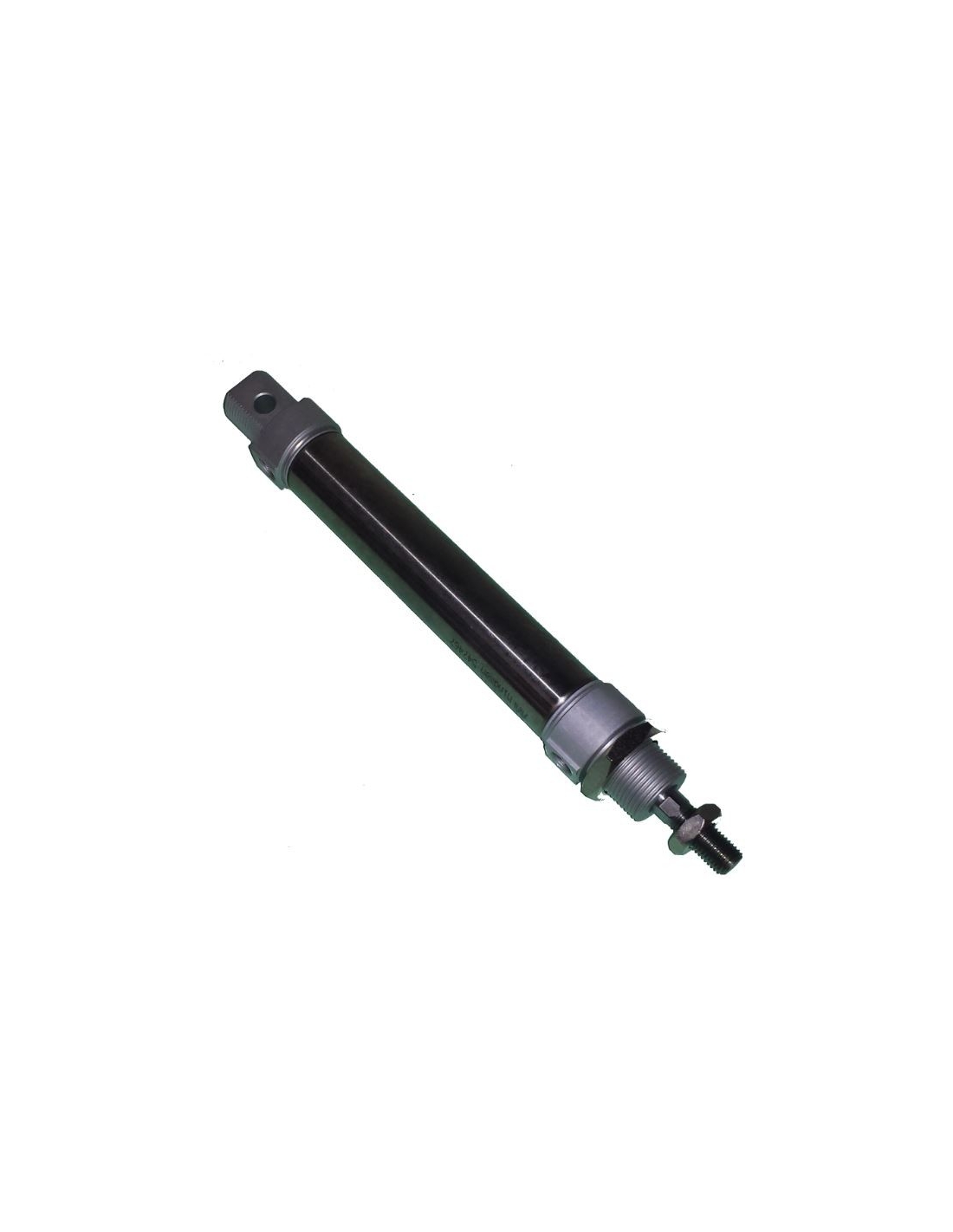

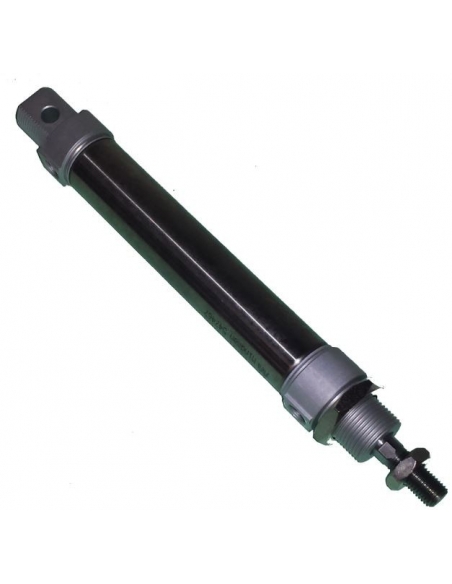

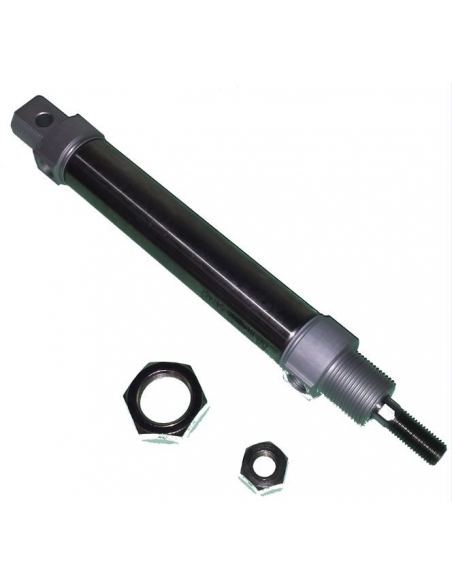

Pneumatic cylinder diameter 16 mm stroke 25mm, double acting and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 6432 standard, with anodized steel sleeve. Chrome-plated steel piston rod. Wide range of accessories for mounting the pneumatic cylinder.

Technical characteristics of the pneumatic cylinder:

  • Manufacturer: Mindman.
  • Part number: 281MCMI110160025
  • Diameter and stroke: Ø16x25 mm.
  • Thread for fittings: M5.
  • Type: Double acting pneumatic cylinder.
  • Type of fluid: Air with or without lubrication.
  • Manufacturing standard: ISO 6432.
  • Maximum operating pressure: 7 Bar.
  • Maximum pressure: 10 Bar.
  • Type of seals: NBR.
  • Operating temperature: -5ºC to +60ºC.
  • Type of construction: Stem and cylinder heads in chrome-plated steel, steel jacket.

For other strokes or diameters, please consult us.

Dimensiones cilindros neumáticos 16-25mm ISO 6432

Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
