Pneumatic cylinder 16x100 double-acting MF0160100 - Aignep

Pneumatic cylinder 16x100 double-acting MF0160100 - Aignep

€33.70 Tax included

€27.85 tax excl.

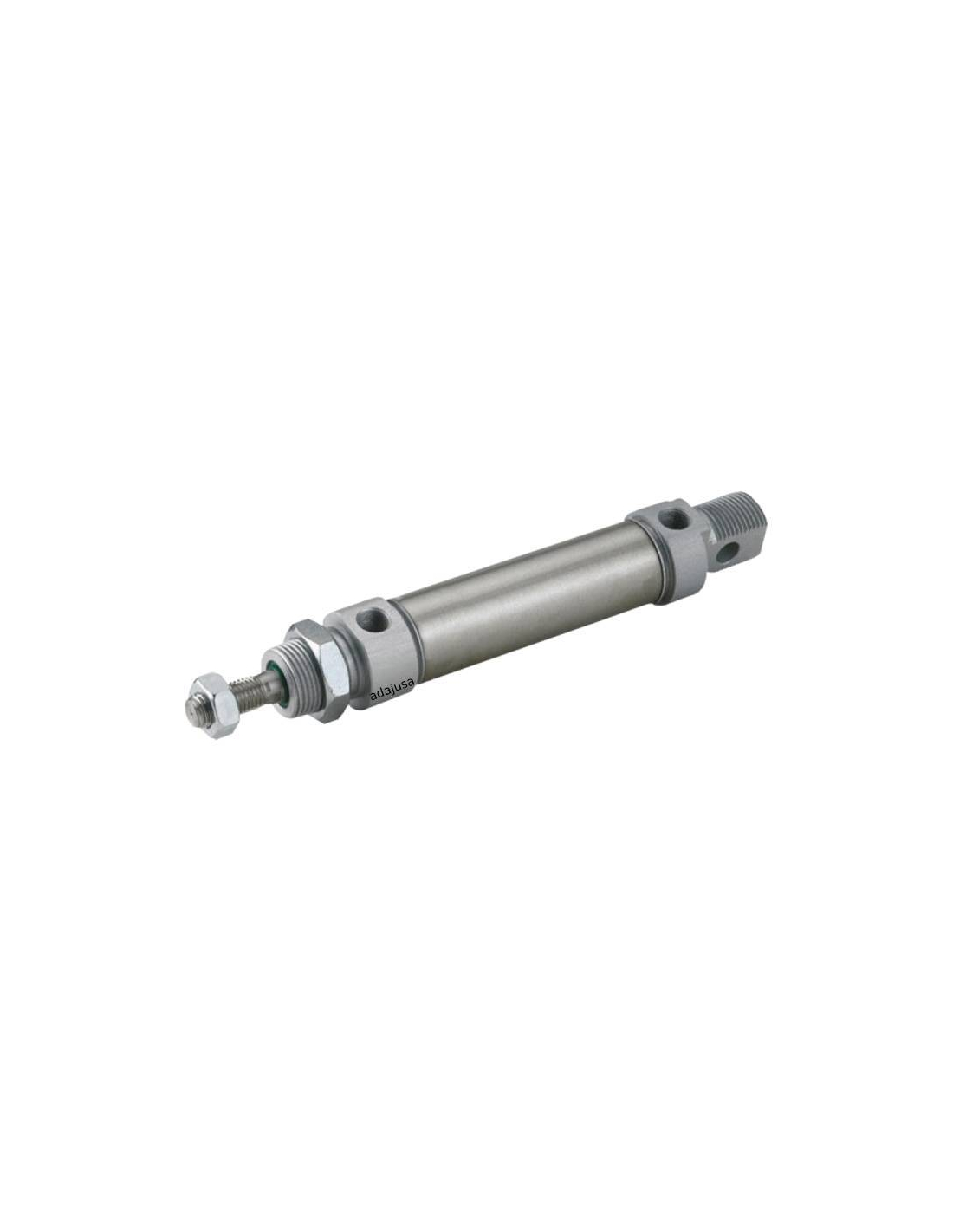

Pneumatic cylinder Ø16 stroke 100mm, double magnetic effect. Made in Italy according to ISO 6432 standard, prepared for magnetic detectors, chrome-plated steel rod. ATEX cylinders as standard.

Reference: MF0160100

Simbolo cilindro neumatico adajusa
Logotipo Aignep
Logotipos normativas Aignep Adajusa
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated
.

No queries yet, leave the first!


Pneumatic cylinder diameter 16mm stroke 100mm standard version, double acting and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 6432 standard, chromium-plated steel piston rod. Wide range of accessories for mounting the pneumatic cylinder.

The "M" range of mini pneumatic cylinders manufactured by Aignep is available in a wide variety of versions.

  • Standard "MF" version. Double acting and magnetic detection. Working temperature from 0ºC to +80ºC, NBR seals. Chrome-plated stem
  • MH" version. Double acting with pneumatic damping
  • MB" version. Single magnetic effect
  • MFN" version. Double magnetic effect and 90º flat feeding cover
  • MFX" version. Double magnetic effect and flat feeding cover with axial inlet
  • MD" version. Single magnetic effect with rear spring
  • MJ" version. Double magnetic effect and with through rod
  • ML" version. Double magnetic and damped effect with through rod
All versions can be supplied with piston rod locking (..B) and/or high temperature version with FKM seals (..V)



Technical characteristics of the pneumatic cylinder:

  • Manufacturer: Aignep
  • Manufacturer's reference: MF0160100
  • Bore and stroke: Ø16x100 mm
  • Type: Double acting pneumatic cylinder
  • Cushioning: no
  • Type of fluid: Air with or without lubrication
  • Manufacturing standard: ISO 6432
  • Maximum operating pressure: 10 bar (1 Mpa)
  • Minimum starting pressure: 1 bar (1 Mpa)
  • Type of seals: NBR
  • Operating temperature: 0ºC to +80ºC (-20ºC if totally dry air)
  • Type of construction: Chrome-plated steel stem
  • Air connection thread size: M5
  • Stem diameter: Ø6
  • Piston rod thread: M6
  • ATEX Cylinders: - II 2 GD c T6 -20 ° C
  • Theoretical maximum force that the cylinder can develop on thrust
    • Pressure 5 kg/cm²: 10.1
    • Pressure 6 kg/cm²: 12.1
    • Pressure 7 kg/cm²: 14.1
  • Theoretical maximum force that the cylinder can develop in traction
    • Pressure 5 kg/cm²: 8.6
    • Pressure 6 kg/cm²: 10.4
    • Pressure 7 kg/cm²: 12.1

Dimensiones cilindros ISO 6432 doble efecto Aignep Adajusa


Material for professional use, to be installed in compliance with the regulations in force at the place of installation.
The cylinder is prepared for mounting magnetic detectors and different accessories. The supply only includes the cylinder, the rest of the accessories must be ordered separately.
For more information you can download the data sheet by clicking on the tab "Attachments "
