Pneumatic cylinder 25x160 double acting MF0250160 - Aignep

Pneumatic cylinder 25x160 double acting MF0250160 - Aignep

€42.27 Tax included

€34.93 tax excl.

Pneumatic cylinder Ø25 stroke 160mm, double magnetic effect. Manufactured in Italy according to ISO 6432 standard, prepared for magnetic detectors, chrome-plated steel stem. ATEX cylinders as standard.

Reference: MF0250160

Adajusa pneumatic cylinder symbol
Aignep logo
Aignep Adajusa regulatory logos

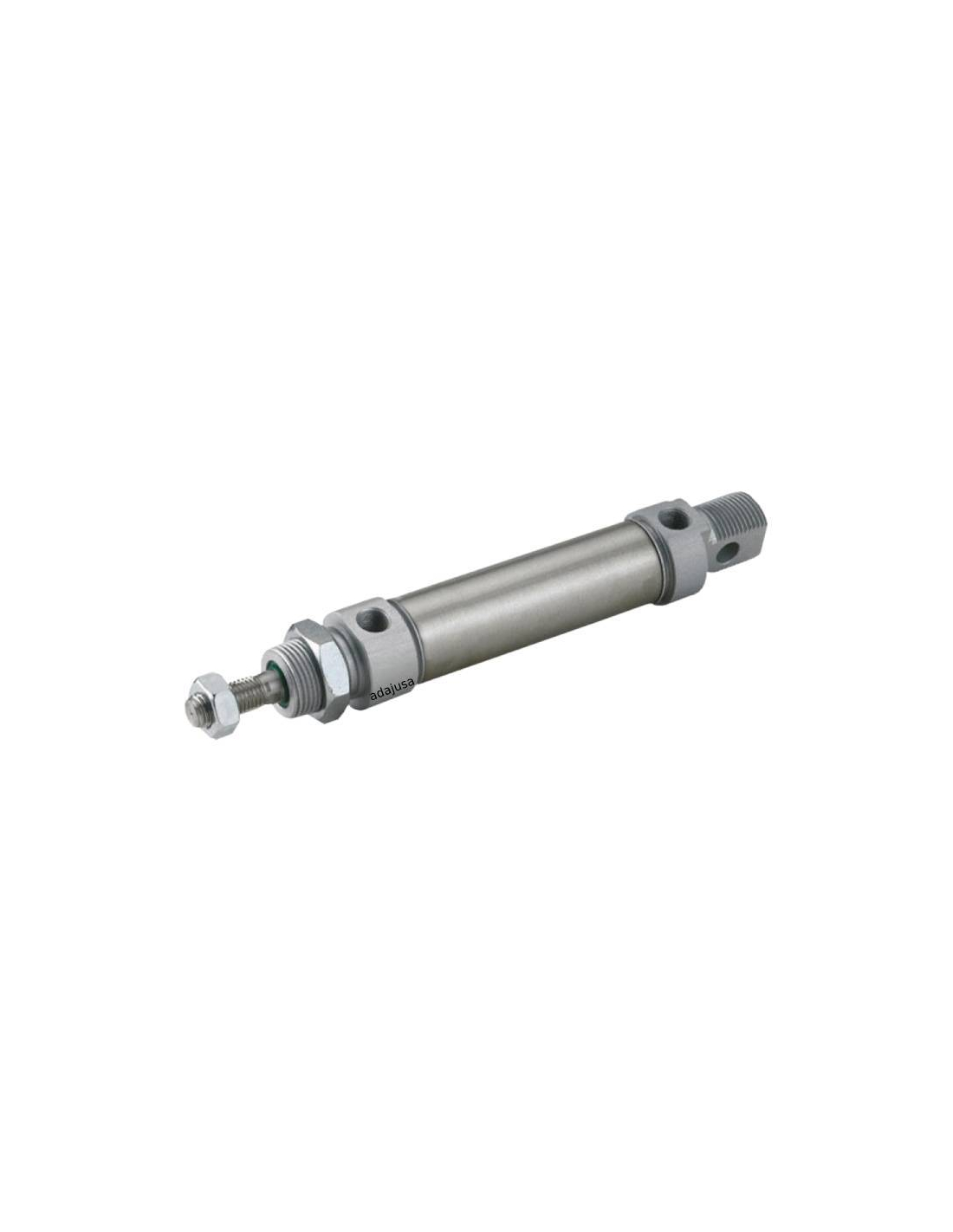

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Pneumatic cylinder diameter 25mm stroke 160mm standard version, double acting and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 6432 standard, chrome-plated steel stem. Wide range of accessories for mounting the pneumatic cylinder.

The "M" range of mini pneumatic cylinders manufactured by Aignep is available in a wide variety of versions.

  • Standard version "MF". Double effect and magnetic detection. Working temperature from 0ºC to +80ºC, NBR joints. Chrome stem
  • "MH" version. Double acting with pneumatic cushioning
  • "MB" version. Simple magnetic effect
  • "MFN" version. Double magnetic effect and flat 90º feeding lid
  • "MFX" version. Double magnetic effect and flat feed cover with axial inlet
  • "MD" version. Simple magnetic effect with rear spring
  • "MJ" version. Double magnetic effect and with through stem
  • "ML" version. Double magnetic and damped effect with through stem
All versions can be supplied with stem lock (..B) and/or high temperature version with FKM seals (..V)



Technical characteristics of the pneumatic cylinder:

  • Manufacturer: Aignep
  • Manufacturer reference: MF0250160
  • Diameter and stroke: Ø25x160 mm
  • Type: Double acting pneumatic cylinder
  • Damping: no
  • Fluid type: Air with or without lubrication
  • Manufacturing standard: ISO 6432
  • Maximum operating pressure: 10 bar (1 Mpa)
  • Minimum starting pressure: 1 bar (1 Mpa)
  • Gasket type: NBR
  • Operating temperature: 0ºC to +80ºC (-20ºC if completely dry air)
  • Construction type: Chromed steel stem
  • Air Connections Thread Size: 1/8G
  • Stem diameter: Ø10
  • Stem thread: M10
  • ATEX cylinders: - II 2 GD c T6 -20 ° C
  • Theoretical maximum force that the cylinder can develop when thrust:
    • Pressure 5 kg/cm²: 15.7
    • Pressure 6 kg/cm²: 18.8
    • Pressure 7 kg/cm²: 22.0
  • Theoretical maximum force that the cylinder can develop in traction:
    • Pressure 5 kg/cm²: 13.2
    • Pressure 6 kg/cm²: 15.8
    • Pressure 7 kg/cm²: 18.5

Cylinder dimensions ISO 6432 double acting Aignep Adajusa


Material for professional use, install in compliance with the regulations in force at the installation site.
The cylinder is prepared for mounting magnetic detectors and different accessories. The supply only includes the cylinder, the rest of the accessories must be ordered separately.
For more information you can download the technical sheet by clicking on the "Attachments" tab
