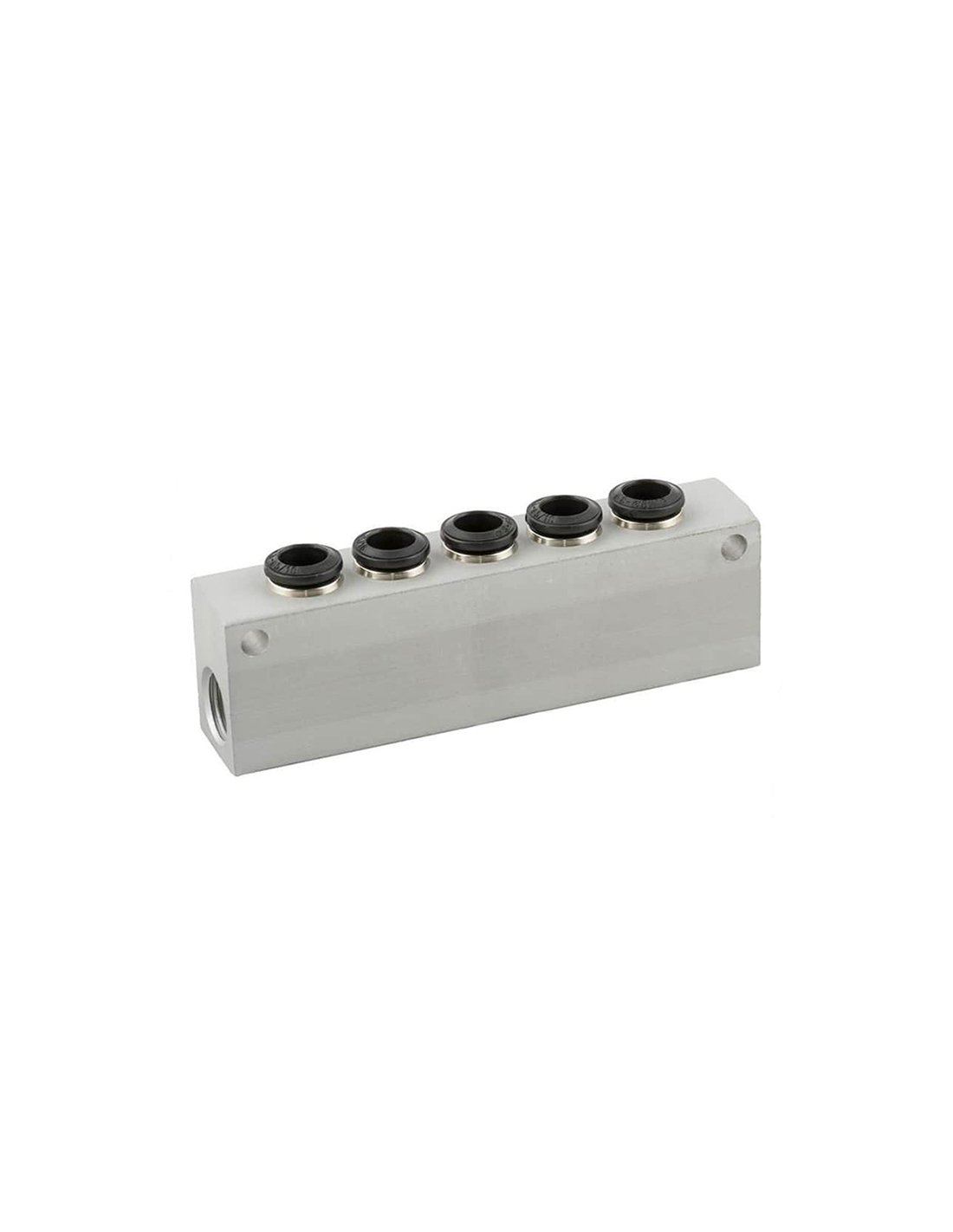

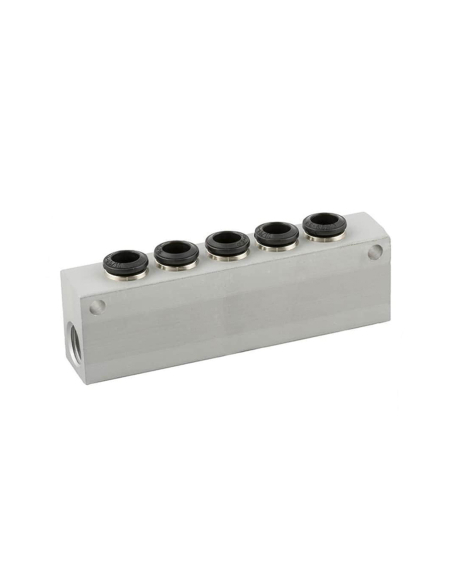

Distributor simple 2 inputs 1/4 - 5 outputs 6mm in aluminum Series 55000 - Aignep| ADAJUSA
Distributor simple 2 inputs 1/4 - 5 outputs 6mm in aluminum Series 55000 - Aignep| ADAJUSA

Distributor simple 2 inputs 1/4 - 5 outputs 6mm in aluminum 55000 series - Aignep

€15.44 Tax included

€12.87 tax excl.

50900N614

Manifold manifold simple with fittings for pneumatic installations, 2 1/4 threaded inlets and 5 outlets of 6mm. Aluminum body. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

Series: 55000
Reference: 50900N 6 1/4




aignep
normativa


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Aluminum manifold manifold for pneumatic installations, 2 1/4 threaded inlets and 5 outlets of 6mm on one side only, used for connection to the pneumatic network.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum

Technical specifications:

  • Manufacturer: Aignep.
  • Part number: 50900N 6 1/4
  • Thread: 1/4
  • Outer tube Ø: 6mm
  • Fluid: vacuum, compressed air and water
  • Material: Aluminum
  • Tube extractor ring: acetal resin
  • Seal of retention: NBR
  • Clamping spring: stainless steel
  • Pressure: -0,99 bar to 20 bar
  • Working temperature: -20°C to +80°C
  • Thread standard
    • Gas conical according to ISO 7.1, BS 21,DIN 2999
    • Gas cylindrical according to ISO 228 Class A
    • Metric according to ISO R/262

50900NEsq

50900NTab


Material for professional use, install in compliance with the regulations in force at the place of installation.
