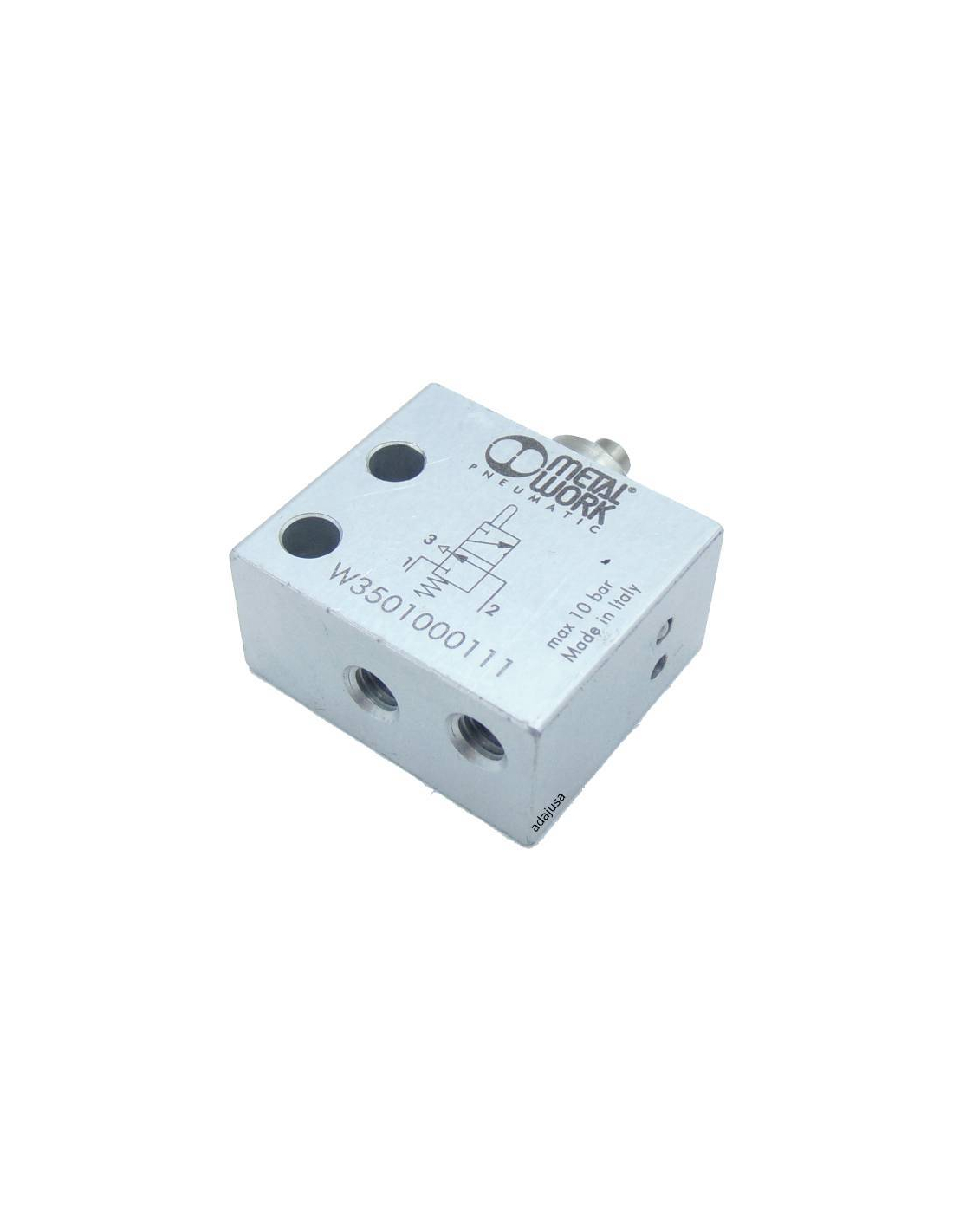

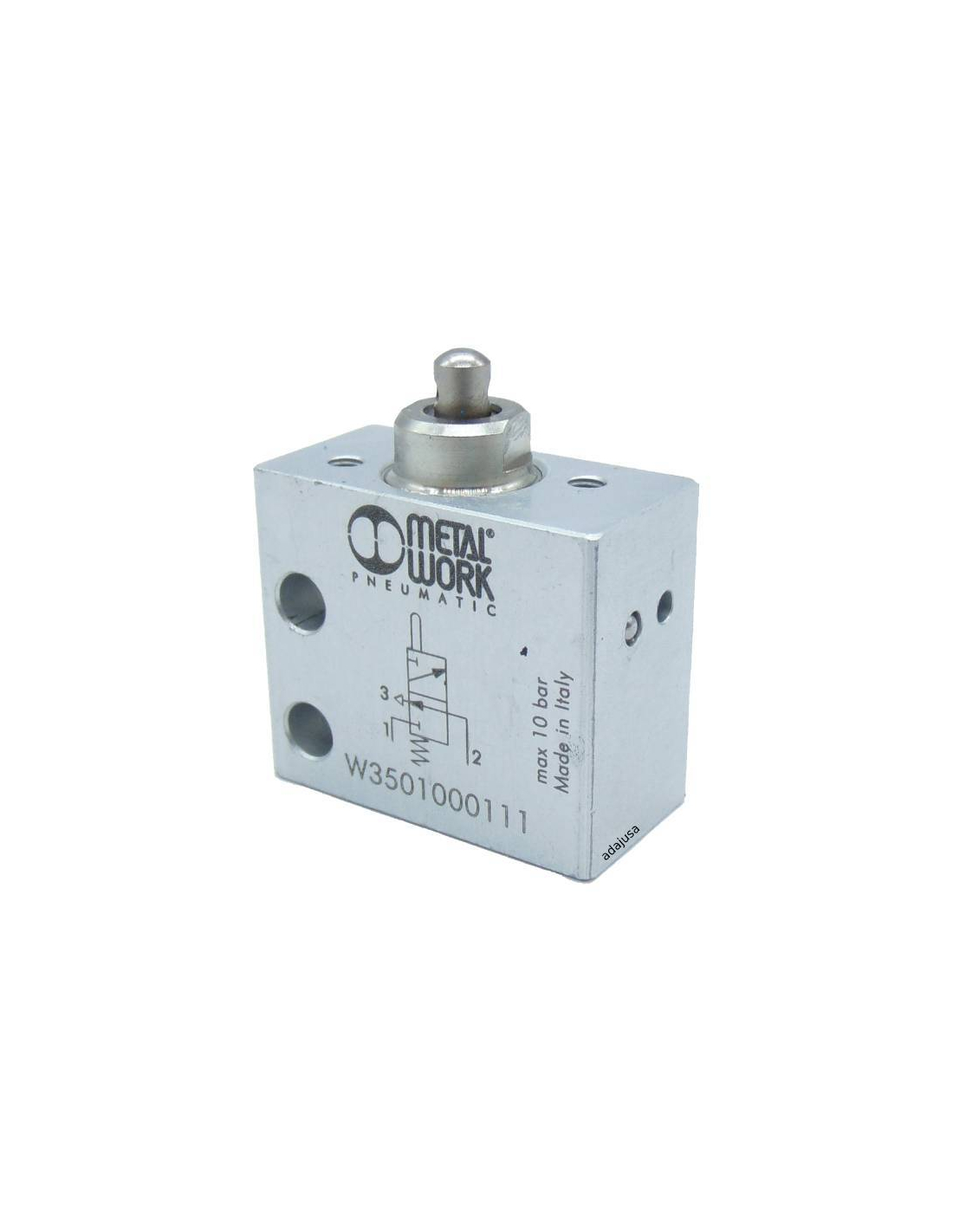

Limit Switch tyre 3/2 NO rear fittings diameter M5 - Metal Work

limit switch metal embolus drive tire, with integrated quick-connect fittings for M5 outer diameter tube. The state of the valve at rest of the limit switch is normally open, that is, without pressing there is the presence of air in the exit, the air can pass, when it is activated, there is no pneumatic pressure at the outlet and the outlet is communicated with the exhaust to produce the discharge of air from the circuit.

• Manufacturer: Metal Work
• Valve type: 3/2 normally open (NA).
• Type of limit switch drive : metal front piston.
• Manufacturer reference: W3501000110 VME1-16 NO M5
• Reduced drive force.
• Signal speed and pressure.
• Mechanical drive.
• Material type: metallic.
• Fittings: fast for tube diameter M5 axial connection.
• Installation: in any position.
• Fluid: Compressed air filtered without lubrication; lubrication, if used, must be continuous.
• Working pressure (bar): 0.5 ÷ 10
• Working temperature (°C): -10° ÷ +60
• Nominal diameter (mm) 2.5
• Conductance C (Nl/min · bar): 16.5
• Critical ratio b (bar/bar): 0.03
• Capacity at 6 bar ΔP 0.5 bar (Nl/min): 35
• Capacity at 6 bar ΔP 1 bar (Nl/min): 60
• Strut drive force at 6 bar (N): 8
• Lubricant recommended: ISO and UNI FD22
