Limit switch 3/2 NC pneumatic strut 3/2 NC...

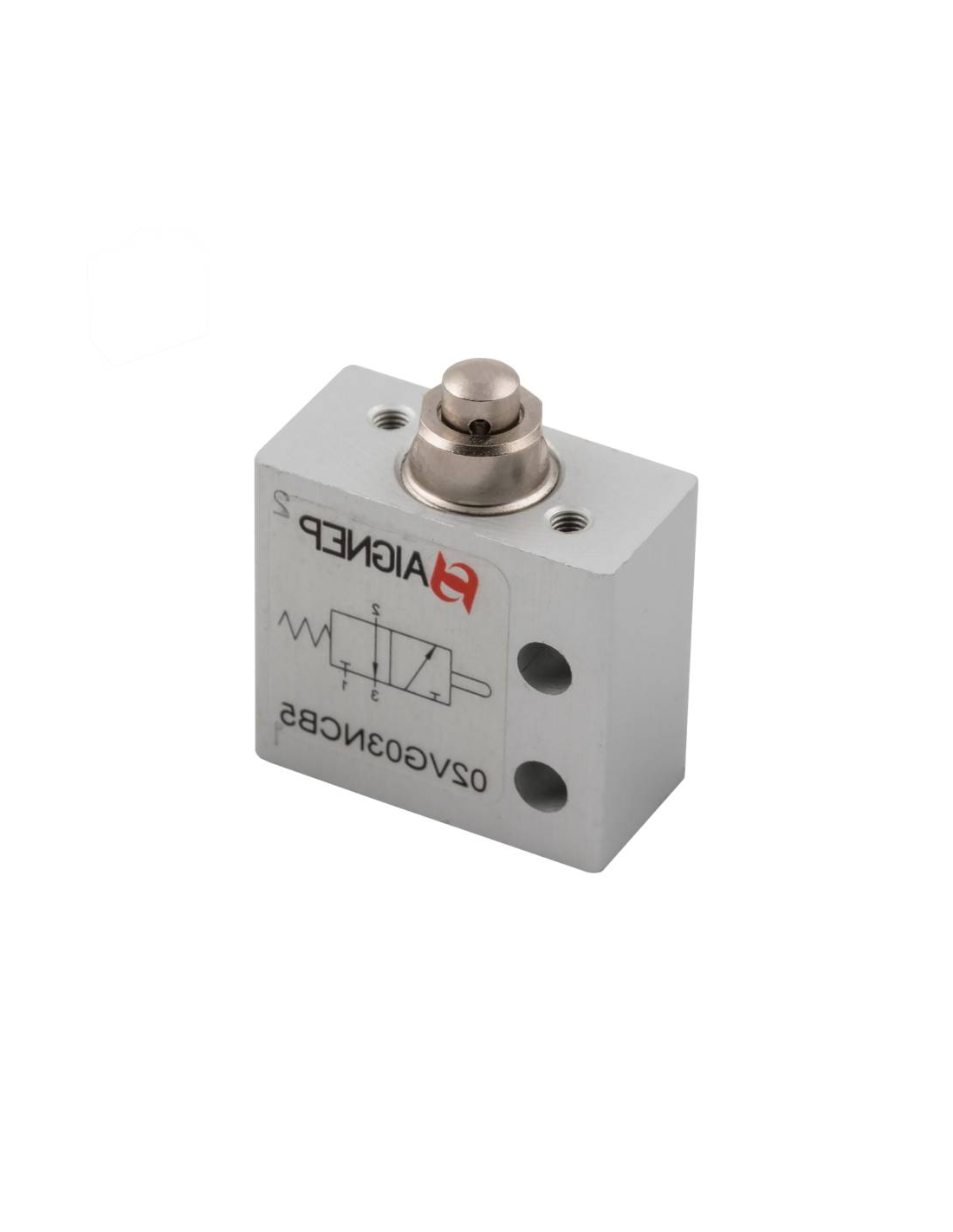

Limit switch 3/2 NC pneumatic strut 3/2 NC monostable with lateral fittings diameter M5 - Aignep

Limit switch 3/2 NC pneumatic strut 3/2 NC monostable with lateral fittings diameter M5 - Aignep

€13.12 Tax included

€10.84 tax excl.

Limit switch m5 pneumatic 3 way and 2 positions, fittings located on the side for M5 outside diameter tube. The type of limit switch valve is normally closed (NC).

Series: 02V
Part number: 02VG03NCB5

MICROESQUEMANC
Logotipo AignepNORMATIVAMICROVALVULA

Representative image for illustrative purposes, the item supplied will correspond to the specifications shown.

No queries yet, leave the first!
Privacy
Shipments
Returns


Limit switch m5 pneumatic, with integrated quick-connect fittings for M5 external pipe diameter. When the limit switch valve is at rest it is normally closed (NC), i.e. when not pressed there is no air at the outlet as air cannot pass through and when actuated it allows air to pass through and there is pneumatic pressure at the outlet.

Manufacturer: Aignep

  • Part number: 02VG03NCB5
  • Thread: M5
  • Valve body: anodized aluminum
  • Spring material: stainless steel
  • Seals: NBR
  • Fittings: quick couplings for pipe diameter M5 side connection.
  • Operating pressure: 2 ÷ 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 100

02VG03NCB5

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
