Diameter reduction from 12mm to 8mm Series 50000 - Aignep

Diameter reduction from 12mm to 8mm Series 50000 - Aignep

€1.79 Tax included

€1.48 tax excl.

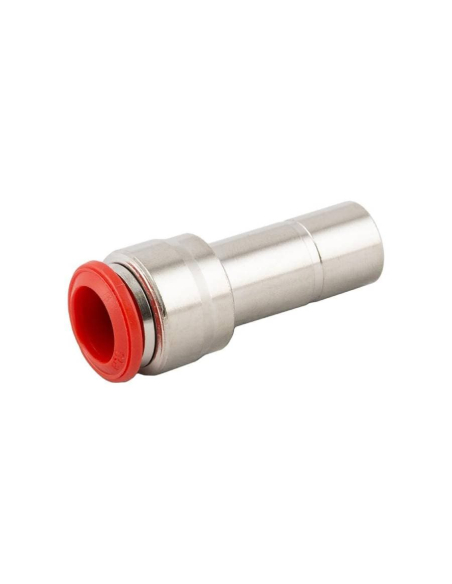

Pneumatic reduction fitting from diameters 12mm to 8mm, nickel-plated brass body. A very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .

Series: 50000
Reference: 50700 12 8




aignep
normative


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Pneumatic reduction fitting from diameters 12mm to 8mm, made of nickel-plated brass. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; The clamping spring clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the tube fitting. In the fittings, the fitting ring has slots for the screwdriver to facilitate disconnection in applications that are inaccessible to the fingers.


Technical characteristics:

  • Manufacturer: Aignep .
  • Reference: 50700 12 8
  • Largest diameter of the tube: 12mm.
  • Minor tube diameter: 8mm.
  • Fluid: Vacuum - Compressed air.
  • Operating pressure: -0.99 bar to 20 bar .
  • Material: Nickel-plated brass.
  • retention gasket: NBR.
  • Tube extractor ring: acetal resin
  • Clamping spring: stainless steel.
  • Working temperature: -20ºC to +80ºC.
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas conforming to ISO 228 Class A
    • ISO R/262 compliant metric


50700 Esq
50700 Tab

Material for professional use, install in compliance with the regulations in force at the installation site.
