Valve 1/8 5-way 3 positions pressure centers - Metal Work

€43.32 Tax included

€35.80 tax excl.

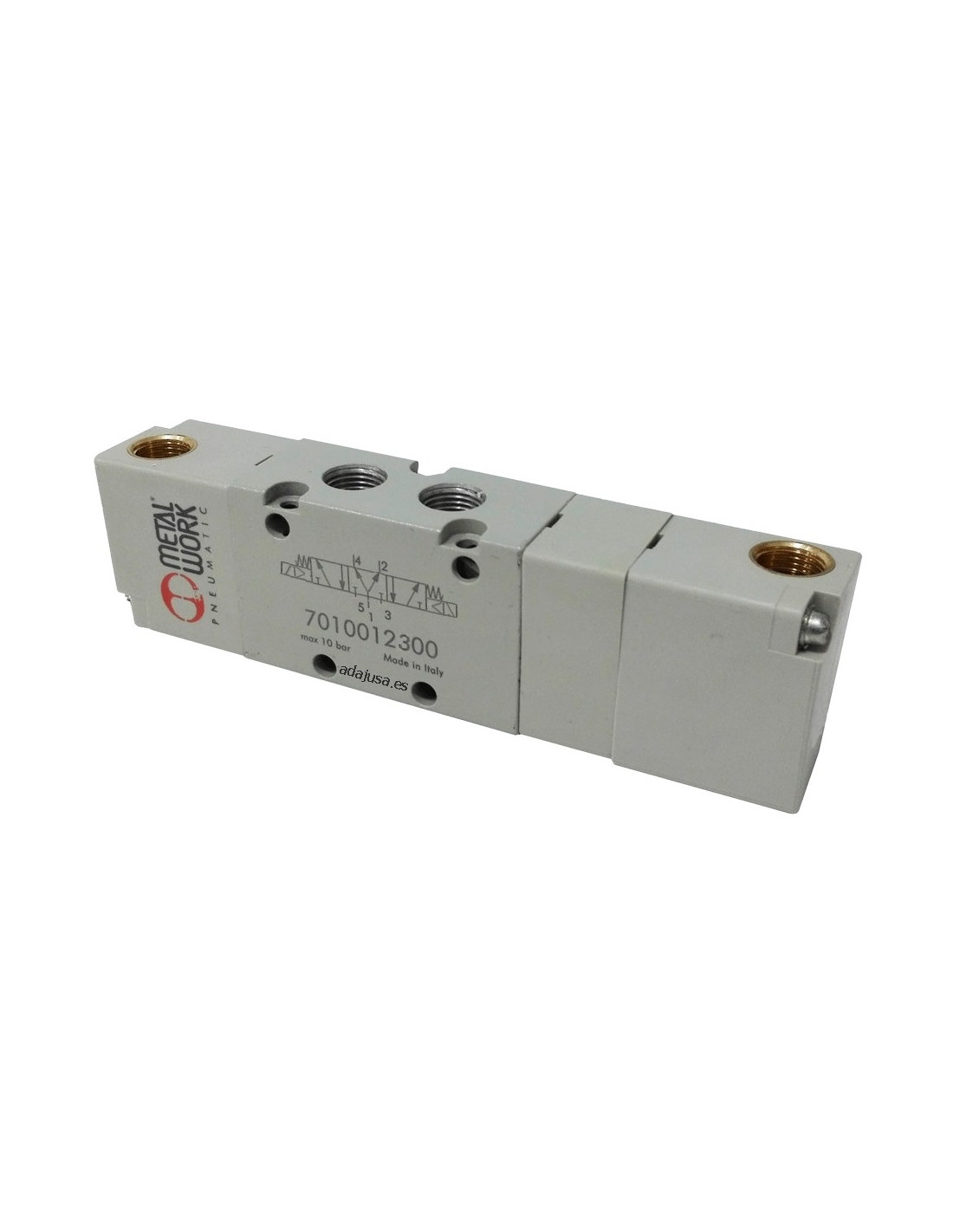

Pneumatic valve of 1/8 5 ways 3 positions centers in pressure, pneumatic control, metal body. For dual-effect cylinder control.

Reference: 7010012300

Esquema neumático válvulas 3 posiciones centros en presión

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic valve of 1/8 5/3 open centers in pressure, pneumatic drive. that allow to control cylinders of double effect.

The valve has 3 positions, with pressure in one pilotage, the cylinder advances, without pressure in the pilots, the cylinder will be applied pressure on both sides, and with pressure on the other pilot, the cylinder is collected.

specifications:

  • Manufacturer: Metal Work.
  • Manufacturer reference: 7010012300 - PNV26PNSPC.
  • Configuration: 5-way 3 positions, closed centers.
  • Thread type: G 1/8".
  • Type of exhaust threads and control: G 1/8".
  • number of tracks: 5.
  • Positions: 3.
  • Fluid type: Press and run air, with or without lubrication.
  • Working pressure: 0÷10 Kgr/cm².
  • Piloting pressure: 1÷10 Kgr/cm².
  • Maximum pressure: 10 Kgr/cm².
  • Effective pitch diameter: 5 mm2.
  • Flow rate at 6 bar Δp 1 bar: 550 Nl/min.
  • Working temperature: -10 to 60ºC.
  • Material: Alumio and steel.

Dimensiones válvulas 1/8-5/3 Metal Work

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab
