Valve 3/8 3-way monostable NO - Metal Work

€67.68 Tax included

€55.93 tax excl.

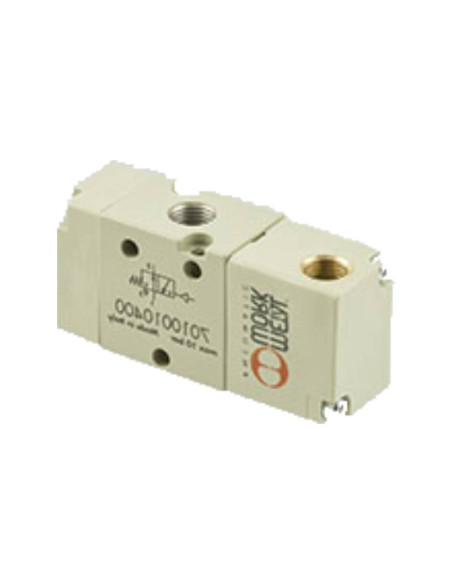

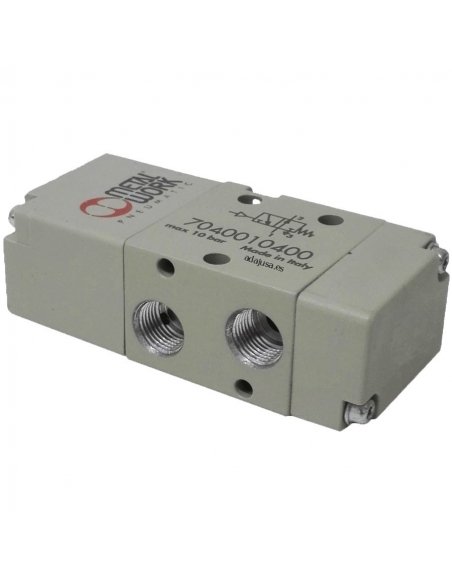

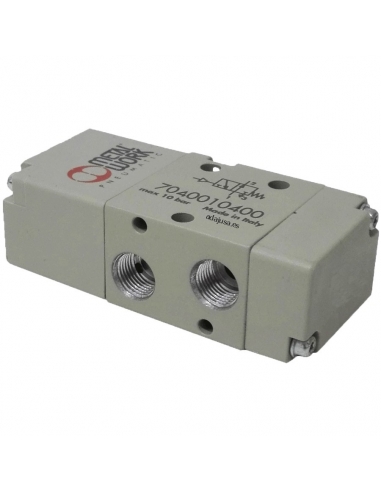

Pneumatic valve 3/8 3-way monostable normally open (NO)

7040010400 Reference


Logotipo metal workRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic valve 3/8 3-way monostable normally open (NO).

  • Manufacturer: Metal Work.
  • Reference: PNV C3 PNS NO Code: 7040010400
  • Operating pressure bar: Empty ÷ 10
  • Minimum monostable drive pressure bar: 2.5
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 13.3
  • Conductance C Nl/min · bar: 505.52
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 2150
  • Monostable TRA/TRR at 6 bar ms: 5/28
  • Bistable TRA/TRR at 6 bar ms: 13/13

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
