V-belt pulley SPZ 90x1 slot taper T1210

€24.28 Tax included

€20.23 tax excl.

PSPZ901T1210

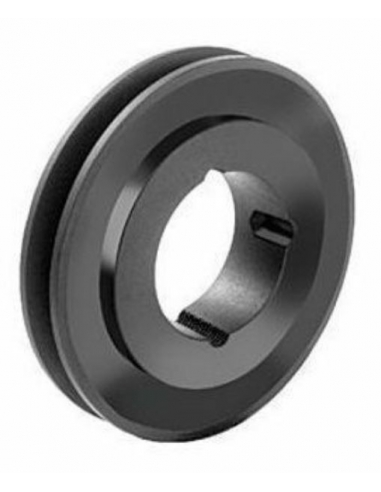

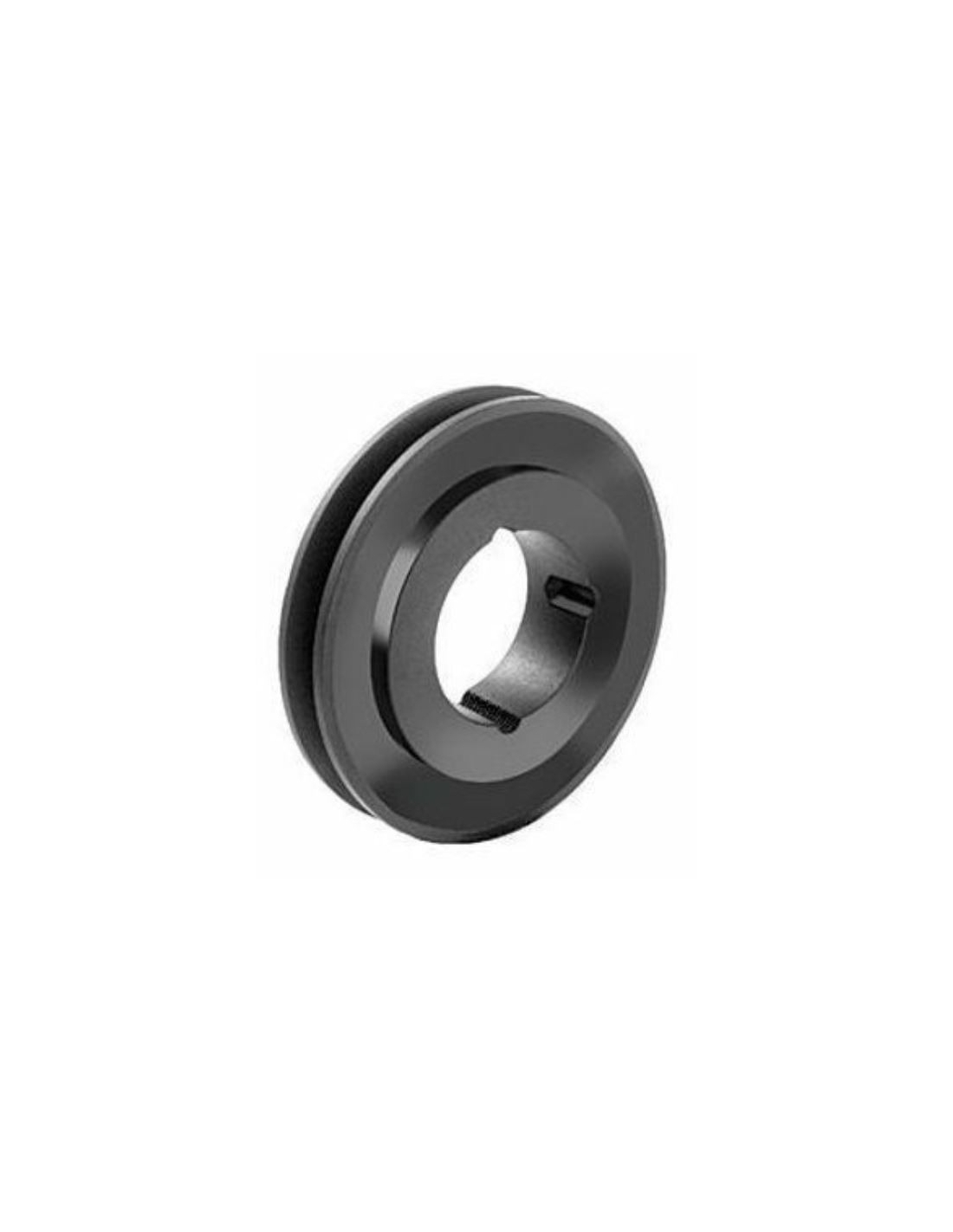

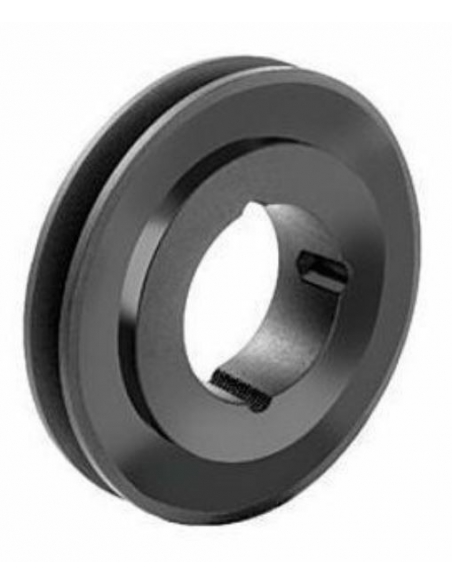

Pulley for V-belts Ø90mm, 1 slot. Machined for conical bush - taper lock T1210. Made of cast steel and suitable for all belts with "V" profile type Z and SPZ. Manufactured according to ISO4183 - DIN2211.

Part No.: POLE-SPZ-90X1-T1210

  • Type of belts: "V" profile type Z and SPZ
  • Diameter. 90mm
  • Number of slots for straps: 1
  • Taper: T1210

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Out of stock

No queries yet, leave the first!
Privacy
Shipments
Returns


Pulley for "V" profile V-belts, for mechanical transmission. Manufactured in cast iron and steel, and according to DIN2211 - ISO4183.

Machined V-belt pulley for tapered bushing "Taper Lock".

Technical characteristics:

  • Type: trapezoidal "V" profile
  • Models: Z and SPZ
  • Material: cast steel
  • Primitive diameter: 90mm
  • Number of slots: 1
  • Type of tapered bushing - taper: T1210
  • Manufacturing standard: DIN2211 - ISO4183


Note: The taper (taper bushing) is not included in the scope of supply.

Dimensions:

  • (Dp): 90
  • (Od): 94
  • (F): 16
  • (L): 25
  • (N): 75
  • Taper: 1210



Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

SPB 500x3 V-belt Pulley Slot T3535 - adajusa.com.com.;
Poles for power transmission

Pulley for trapezoidal belts SPB 500x3 strap slots T3535

Generico-TE
PSPB5003T3535
€431.64 (€359.70 tax excl.)
Pulley for trapezoidal belts Ø500mm, 3 grooves for belts. Machined for conical bushing - taper lock T3535. Made of cast steel and valid for all belts with profile in "V" type B and SPB. Manufactured according to ISO4183 - DIN2211. Reference: POLE-SPB-500X3-T3535 Type of straps: Profile in "V" type B and SPB. Diameter: 500 mm. number of strap slots:...
SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 100mm 2 slot for shaft diameter 38mm type SPA

Generico-TE
PK-PLSPA1002T1610-38
€42.29 (€35.24 tax excl.)
Pulley for V-belts Ø100mm, from 2 slot, with taper lock with 38mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type A and SPA Pulley diameter (Dp): 100mm Number of slots for belts: 2 Taper: 38mm center shaft diameter with 10mm keyway...
SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
Poles for power transmission

V-belt pulley 63mm 2 slot for shaft diameter 11mm type SPZ

Generico-TE
PK-PLSPZ632T1108-11
€22.85 (€19.04 tax excl.)
Pulley for V-belts Ø63mm, from 2 slot, with taper lock with 11mm shaft diameter and keyway. Valid for all belts with "V" profile type Z and SPZ. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type Z and SPZ Pulley diameter (Dp): 63mm Number of slots for belts: 2 Taper: center shaft diameter 11mm with 4mm key Representative...
Pulley with taper 2012 for V-belt SPZ 125 3 : ADAJUSA : price Pulley with taper 2012 for V-belt SPZ 125 3 : ADAJUSA : price 2
  • Pack
Poles for power transmission

V-belt pulley 125mm 3 slot for shaft diameter 14mm type SPZ

Generico-TE
PK-PLSPZ1253T2012-14
€62.78 (€52.32 tax excl.)
Pulley for V-belts Ø125mm, from 3 slot, with taper lock with 14mm shaft diameter and keyway. Valid for all belts with "V" profile type Z and SPZ. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type Z and SPZ Pulley diameter (Dp): 125mm Number of slots for belts: 3 Taper: center shaft diameter 14mm with 5mm key...
SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
Poles for power transmission

V-belt pulley 75mm 1 slot for shaft diameter 14mm type SPZ

Generico-TE
PK-PLSPZ751T1108-14
€23.69 (€19.74 tax excl.)
Pulley for V-belts Ø75mm, from 1 slot, with taper lock with 14mm shaft diameter and keyway. Valid for all belts with "V" profile type Z and SPZ. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type Z and SPZ Pulley diameter (Dp): 75mm Number of slots for belts: 1 Taper: center shaft diameter 14mm with 5mm key Representative...
Pulley with taper 1610 for V-belt SPA 180 1 : ADAJUSA : price Pulley with taper 1610 for V-belt SPA 180 1 : ADAJUSA : price 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 180mm 1 slot for shaft diameter 19mm type SPA

Generico-TE
PK-PLSPA1801T1610-19
€65.52 (€54.60 tax excl.)
Pulley for V-belts Ø180mm, from 1 slot, with taper lock with 19mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type A and SPA Pulley diameter (Dp): 180mm Number of slots for belts: 1 Taper: center shaft diameter 19mm with 6mm key...
SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 212mm 1 slot for shaft diameter 24mm type SPB

Generico-TE
PK-PLSPB2121T2012-24
€93.32 (€77.77 tax excl.)
Pulley for V-belts Ø212mm, from 1 slot, with taper lock with 24mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type A and SPA Pulley diameter (Dp): 212mm Number of slots for belts: 1 Taper: center shaft diameter 24mm with 8mm key...
SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
Poles for power transmission

V-belt pulley 250mm 1 slot for shaft diameter 24mm type SPZ

Generico-TE
PK-PLSPZ2501T2012-24
€88.03 (€73.36 tax excl.)
Pulley for V-belts Ø250mm, from 1 slot, with taper lock with 24mm shaft diameter and keyway. Valid for all belts with "V" profile type Z and SPZ. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type Z and SPZ Pulley diameter (Dp): 250mm Number of slots for belts: 1 Taper: center shaft diameter 24mm with 8mm key...
SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 140mm 3 slot for shaft diameter 28mm type SPA

Generico-TE
PK-PLSPA1403T2517-28
€94.00 (€78.33 tax excl.)
Pulley for V-belts Ø140mm, from 3 slot, with taper lock with 28mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type A and SPA Pulley diameter (Dp): 140 mm Number of slots for belts: 3 Taper: center shaft diameter of 28mm with 8mm key...
SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 315mm 4 slot for shaft diameter 42mm type SPA

Generico-TE
PK-PLSPA3154T3020-42
€282.77 (€235.64 tax excl.)
Pulley for V-belts Ø315mm, from 4 slot, with taper lock with 42mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Belt type: "V" profile type A and SPA Pulley diameter (Dp): 315 mm Number of slots for belts: 4 Taper: center shaft diameter of 42mm with 12mm key...
SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 160mm 3 slot for shaft diameter 28mm type SPA

Generico-TE
PK-PLSPA1603T2517-28
€111.00 (€92.50 tax excl.)
Pulley for V-belts Ø160mm, from 3 slot, with taper lock with 28mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type A and SPA Pulley diameter (Dp): 160 mm Number of slots for belts: 3 Taper: center shaft diameter of 28mm with 8mm key...
SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA 2
  • Pack
V-belt pulleys complete with taper

V-belt pulley 90mm 3 slot for shaft diameter 24mm type SPA

Generico-TE
PK-PLSPA903T1610-24
€44.36 (€36.97 tax excl.)
Pulley for V-belts Ø90mm, from 3 slot, with taper lock with 24mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211 Type of belts: "V" profile type A and SPA Pulley diameter (Dp): 90 mm Number of slots for belts: 3 Taper: center shaft diameter of 24mm with 8mm key...
Pulley with taper 1610 for V-belt SPA 100 1 : ADAJUSA : price Pulley with taper 1610 for V-belt SPA 100 1 : ADAJUSA : price 2
  • Pack
V-belt pulleys complete with taper

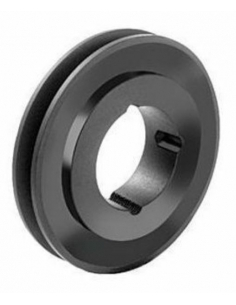

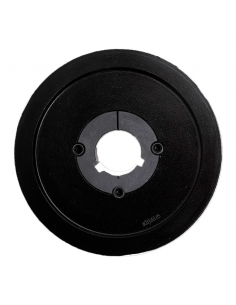

V-belt pulley 100mm 1 slot for shaft diameter 24mm type SPA
