Pulley V-belt SPA 106x3 slots taper T1610

€39.80 Tax included

€32.89 tax excl.

Pulley for trapezoidal belts Ø106mm, 3 grooves. Machined for conical bushing - taper lock T1610. Made of cast steel and valid for all belts with profile in "V" type A and SPA. Manufactured according to ISO4183 - DIN2211.

Reference: POLE-SPA-106X3-T1610

  • Type of straps: Profile in "V" type A and SPA.
  • Diameter: 106mm.
  • number of strap slots: 3.
  • Taper: T1610.

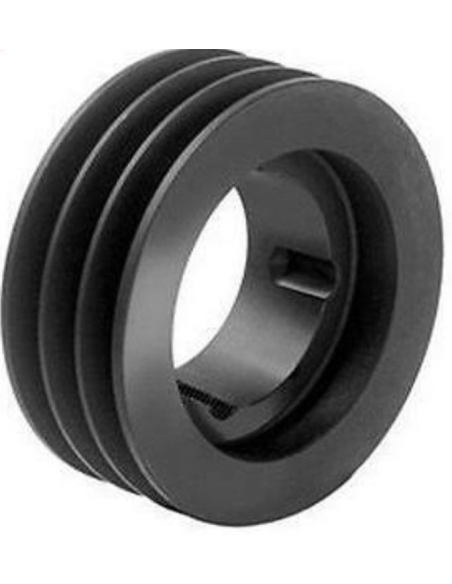

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pulley for trapezoidal belts profile in "V", for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183.

Machined trapezoid pulley for conical bushing "Taper Lock".

Specifications:

  • Type: trapezoid profile in "V".
  • Models: A and SPA.
  • Material: cast steel.
  • Primitive diameter: 106mm.
  • Number of slots: 3.
  • Type of conical bushing - taper: T1610
  • Manufacturing standard: DIN2211 - ISO4183.


Note: The taper (conical bushing) is not included in the supply.

Dimensions:

  • (Dp): 106
  • (Od): 111.5
  • (F): 50
  • (J): 72
  • (L): 25
  • (M): 25
  • Taper: 1610



Material for professional use, install in compliance with the regulations in force at the place of installation.
