Three-phase compressor pressure switch - Aignep

€25.94 Tax included

€21.44 tax excl.

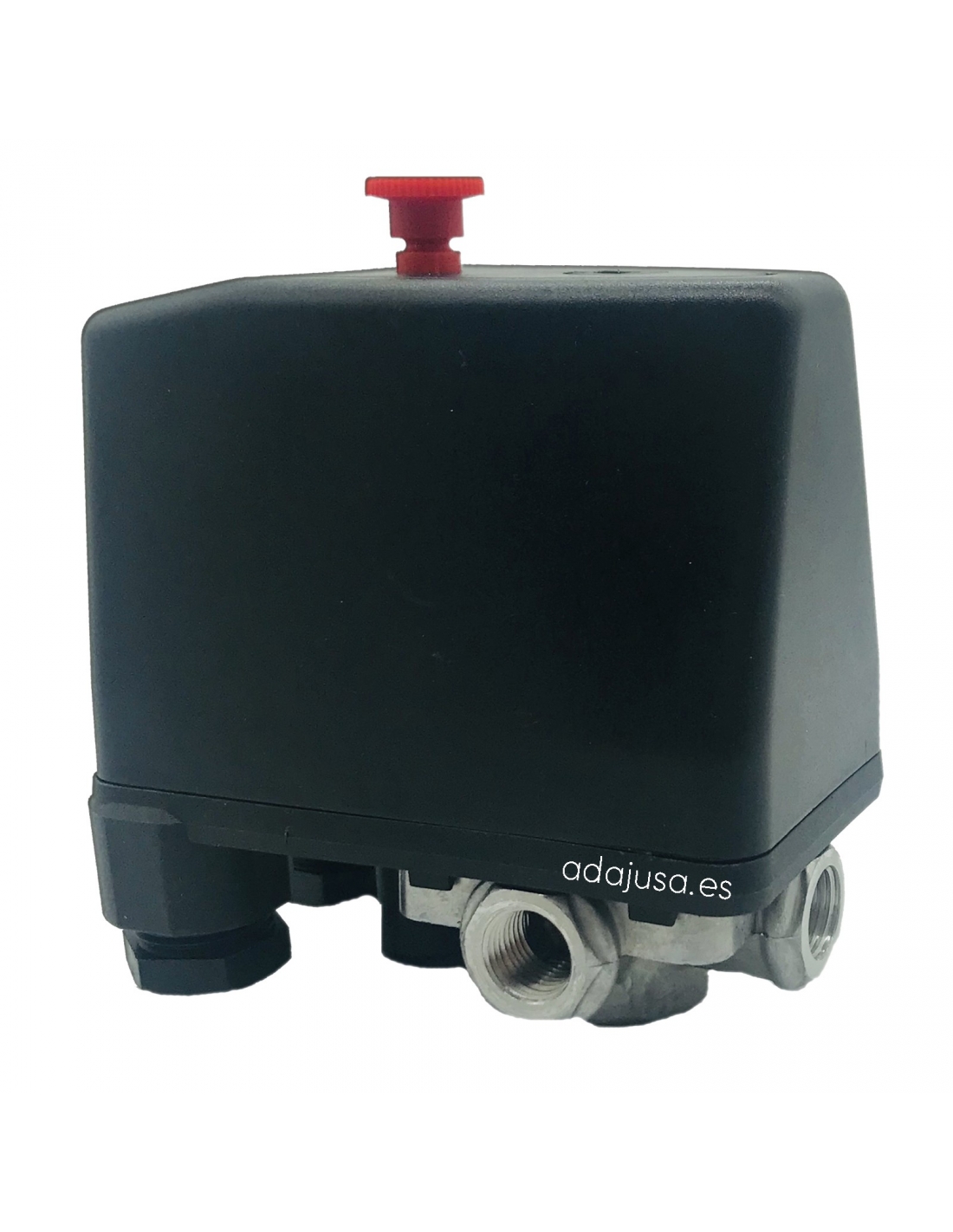

Three-phasecompressor pressure switch for duty cycle regulation, equipped with a technopolymer cover with on/off push button. The pneumatic thread is 1/4". Pressure switch in compliance with NEMA, TÜV SÜD and CE marking.

Part number: P2

simbolo presostato trifásico

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pressure switch for three-phase compressor, pressure switch, regulates the duty cycle of the motor to control the pressure level of the air system. Pressure switch in compliance with NEMA, TÜV SÜD and CE marking.


The pressure is regulated by a screw acting on a calibrated spring. The differential is regulated by a second screw that increases the maximum pressure without varying the minimum pressure. These operations must always be carried out with the pressure switch under pressure, otherwise it does not show any indication, it is at the minimum point.


DIBUJOP2


The cover is made of corrosion resistant plastic material and has two very resistant riveted electrical contacts.

The thread for the pneumatic connection is 1/4" and the pressure regulation range is 2.5 to 12 bar. The application field of this pressure switch is in compressors, pumps, instrumentation, etc.

Technical characteristics:

  • Manufacturer Aignep
  • Part number: P2
  • Type of contacts: 3 closed
  • Number of way: 4
  • Pressure range: 2,5-12 bar
  • Maximum voltage: 380Vac
  • Maximum current: 20A
  • Type of pneumatic thread: 1/4
  • Adjustable intervention differential: 1,5 to 3,2 bar
  • Operating temperature: 0 C to 50 C
  • Type of cover: plastic with on/off button.

Other models: consult.

Electrical w iring diagram:

ESQUEMAP2

Dimensions

dibujoP2

Equipment for professional use, install in compliance with the regulations in force at the place of installation.
