Pneumatic selector valve: 3/2 NC rear - Metal Work
Adapter for pushbutton valve or selector - Metal Work - adajusa.es
Pneumatic selector valve: 3/2 NC rear - Metal Work
Pneumatic selector valve: 3/2 NC rear - Metal Work
Adapter for pushbutton valve or selector - Metal Work - adajusa.es
Pneumatic selector valve: 3/2 NC rear - Metal Work

Pneumatic selector valve: 3/2 NC rear - Metal Work

€38.91 Tax included

€32.16 tax excl.

Full neumatic selector, black color. with normally closed valve (NC) and integrated fittings for tube diameter 4, rear outlet.

Logotipo Metal Work
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.



Full black pneumatic selector, 22.5mm drill diameter, normally closed valve (NC) with built-in fittings for tube 4mm. The fittings are located at the back of the valve.

limit switch metal emboloding pneumatic frame, with integrated quick-connect fittings for 4mm outer tube. The state of the valve at rest is normally closed, i.e. without pressing there is no presence of air in the exit, the air cannot pass, when it is operated, it lets air pass through and there is pneumatic pressure at the outlet.


Supply includes:

    • 2-position selector

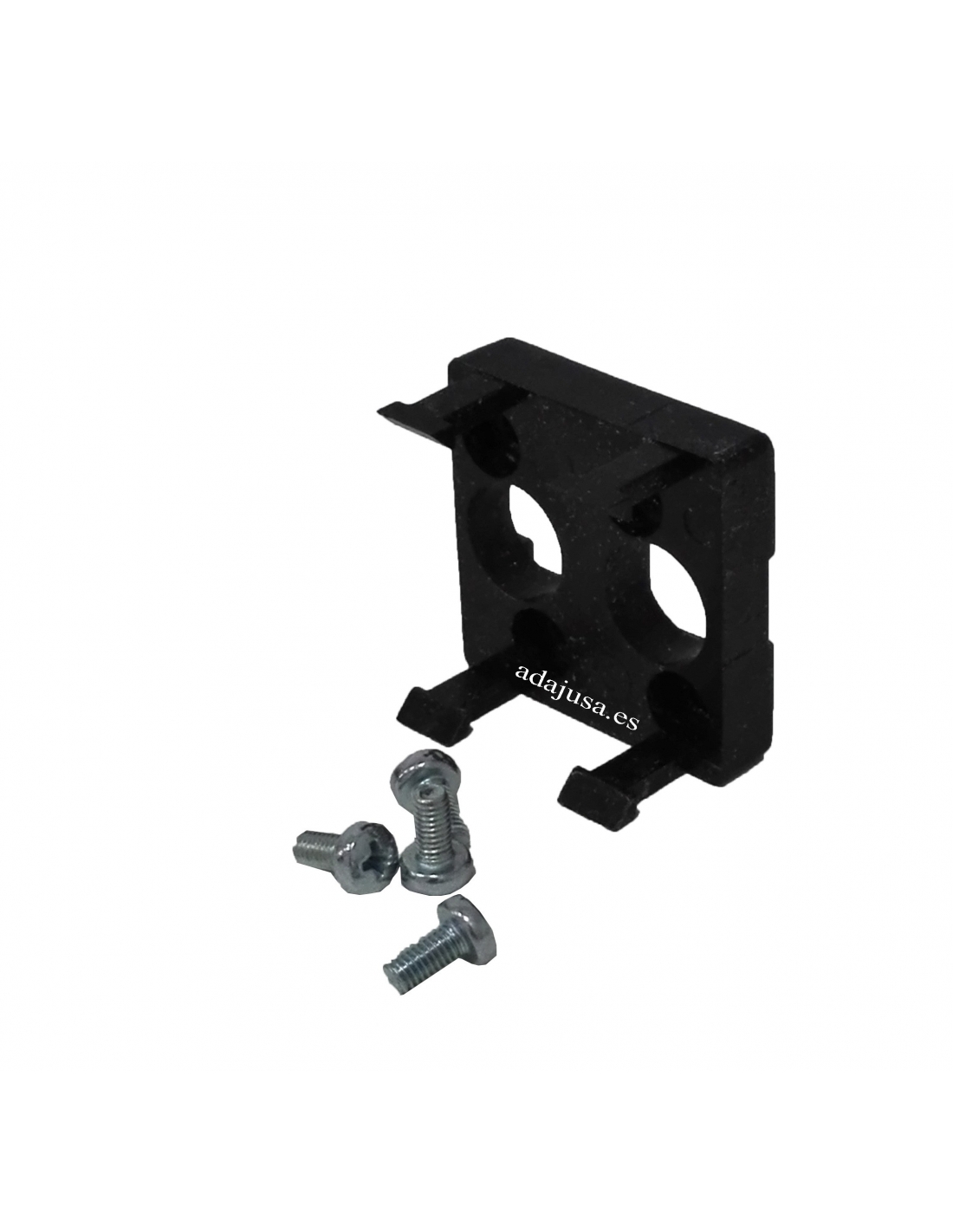

    • adapter
    • nut
    • Valve adapter
    • 4 screws
    • Front limit switch NC piston valve.

Valve features:

  • Valve type: 3/2 Normally closed (NC).
  • Type of drive of the limit switch: Metal front piston.
  • Manufacturer's Reference: W3501000100 - VME-01 NC D.4
  • Material type: metallic.
  • Fittings: fast for tube 4mm located at the rear
  • Installation: in any position.
notes:
• To obtain the pneumatic function 5/2 assemble a 3/2 NC strut valve and a 3/2 NO on the adapter.
• To obtain the pneumatic function 5/3 open centers, assemble two 3/2 NC strut valves on the adapter.
• To obtain the pneumatic function 5/3 pressure centers, assemble two 3/2 NO strut valves on the adapter.

With the valve adapter you can place up to two valves at once. The supply only includes one type of valve. If you want you can buy another valve separately to add it to the pushbutton.

dimensiones final de carrera neumatico piston Nc racores traseros de 4


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
