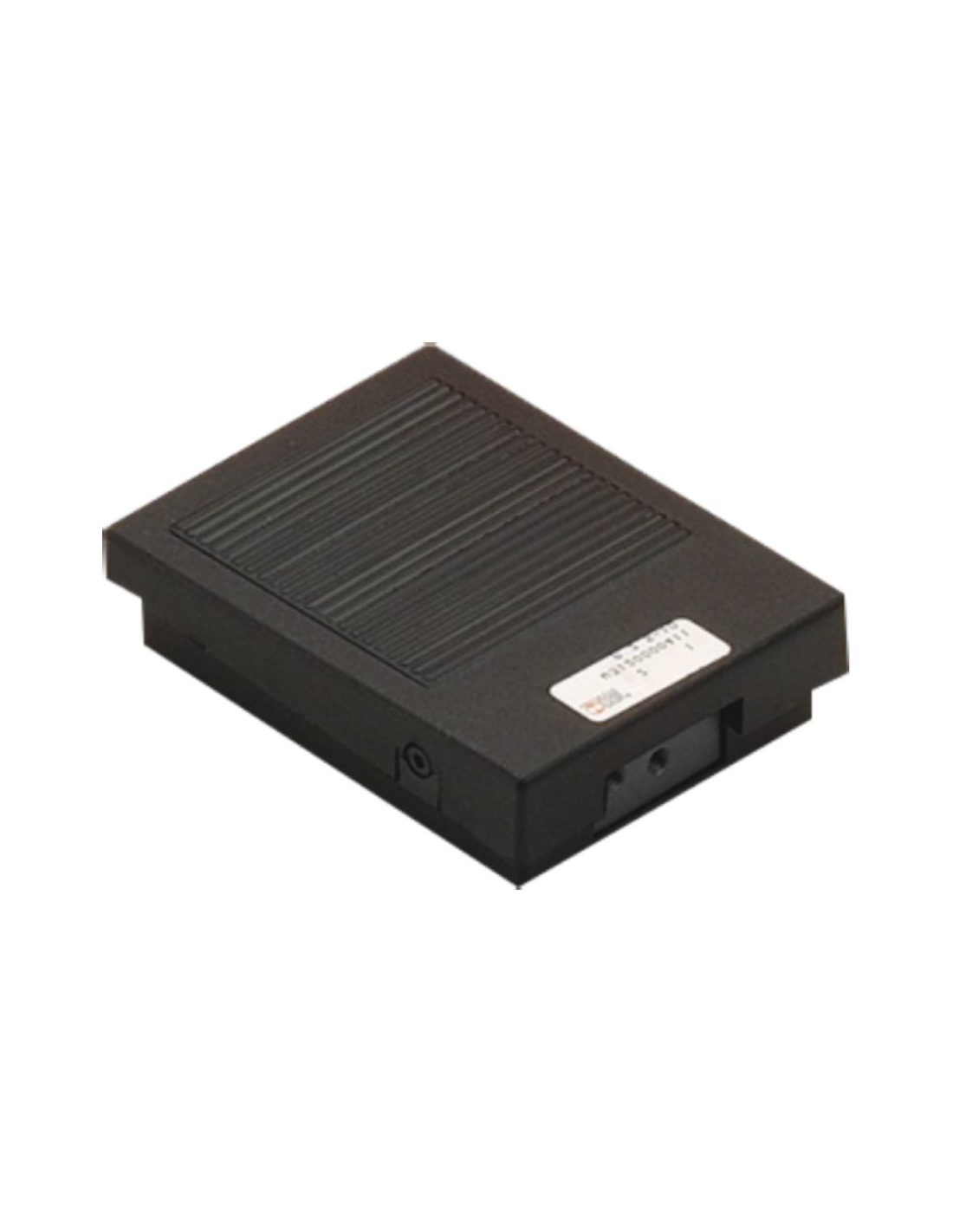

Unprotected monostable 3/2 M5 pneumatic pedal - Metal Work

Name: Unprotected monostable 3/2 M5 pneumatic pedal - Metal Work
Brand: Metal Work
SKU: W3120000411
Price: 34.0494 EUR
Availability: PreOrder

€34.05 Tax included

€28.14 tax excl.

Pneumatic pedal with 3-way thread,monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.

Reference: W3120000411

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Pneumatic pedal with M5 thread of 3/2 monostable ways. The pneumatic valve is made of aluminum, monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.

Specifications:

Manufacturer: Metal Work.
Reference: W3120000411 (PEV 03 PES WP)
Valve thread: M5.
Fluid: With or without lubrication, if there is lubrication it must be continuous.
Typology: 3 ways, 2 monostable positions with protection.
Working pressure: 2,5..10 bar. 0,25..1 MPa. 36..145 psi.
Nominal diameter: 2.5 mm.
Conductance C: 16.5 Nl/min-bar.
Critical ratio: 0.03 bar/bar.
Flow rate at 6.3 bar ΔP 0.5bar: 60 Nl/min.
Flow rate at 6.3 bar ΔP 1 bar: 95 Nl/min.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
