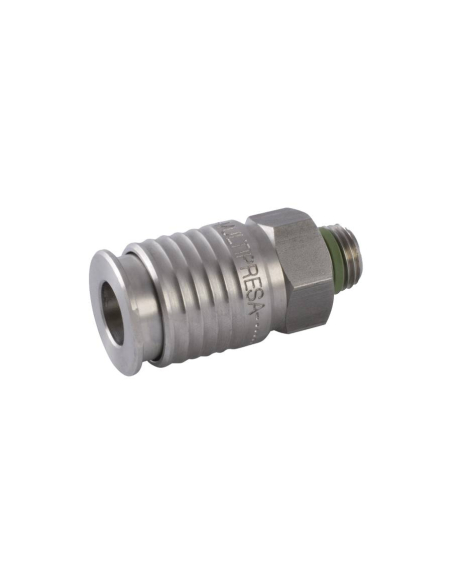

Short male quick connector 1/4 INOX universal series - Aignep

Short male quick connector 1/4 INOX universal series - Aignep

€56.81 Tax included

€46.95 tax excl.

Multipresa series G 1/4 short male thread quick coupling , made of AISI 316 L STAINLESS steel with food grade FKM gasket . Universal profile plug, interchangeable with all the different types of adapters approved in the European market, guaranteeing perfect tightness for all of them. This type of plug allows a simple and quick connection and disconnection of pneumatic elements and tools.

Compatible and interchangeable with profile adapters European, Swedish, Italian, UNI ISO 6150 B-12. Compatible with numerous fluids, both food-grade and aggressive.


Series: 63000 INOX
Reference: 63190 1/4
661schemeaignep


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Quick connection plug with short G 1/4 male thread, made entirely of AISI 316L STAINLESS steel with food grade FKM gasket. Universal type plug, interchangeable with all adapters approved in the European market; a single plug that fits the following adapter profiles: European, Swedish, Italian, UNI ISO 6150 B-12. This type of plug provides a high flow rate and low pressure drop, avoiding air losses between the plug and the tool; It offers high performance in terms of temperature, pressure and multiple fluids.

They are widely used in applications where frequent and quick connections and disconnections are required, such as industrial facilities, workshops or garages, compressed air tools, food and beverage industries, etc. Compatible with numerous fluids, both food and aggressive.


COMPATIBLE

Stainless steel quick couplers are versatile and are used in a wide variety of industrial and food applications, thanks to their robustness and resistance to corrosion. The Multipresa series plugs are a practical solution for interchangeability with different types of adapters, both in shape and dimensions, which generally require specific plugs that are not interchangeable between them.


MATERIALS



Technical characteristics:

  • Manufacturer: Aignep
  • Reference: 63190 1/4
  • Thread type: Gas conical 1/4 male short
  • Compatible fluid: Compressed air / Fluids for food and chemical industries
  • Material: AISI 316L STAINLESS STEEL
  • Gaskets: FKM food
  • Working pressure: 0 to 16 bar
  • Maximum static pressure (without pulsations): 35 bar
  • Working temperature range: - 15C to +200C
  • Adapter compatibility: European, Swedish, Italian, ISO 6150 B-12


Flow rate depending on the type of adapter: Series 260 - European Profile




Dimensions:
63190DIMENSIONS
63190TD





For more information you can download the technical sheet by clicking on the "Attachments" tab .

Material for professional use, install in compliance with the regulations in force at the installation site.
