€62.17 Tax included

€51.81 tax excl.

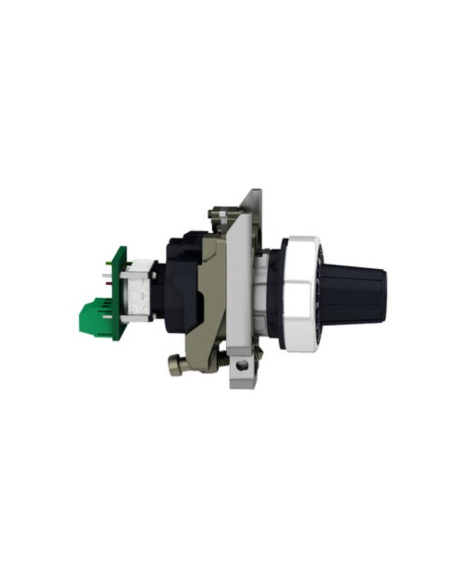

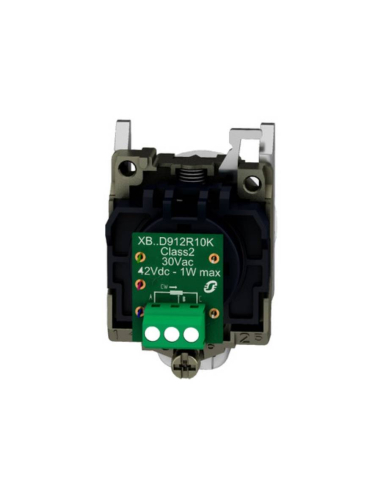

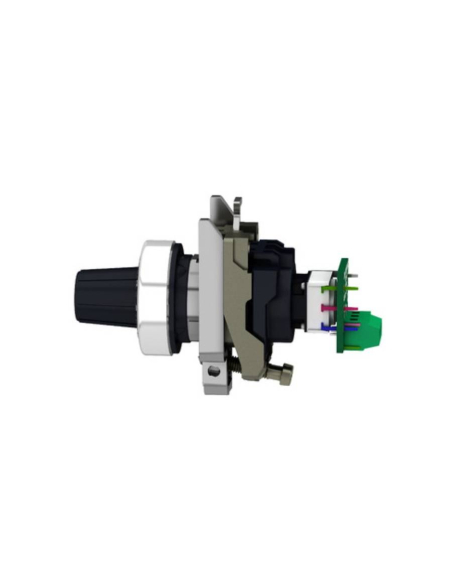

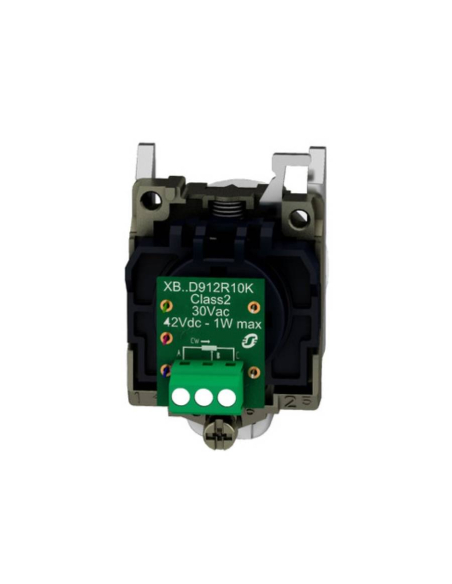

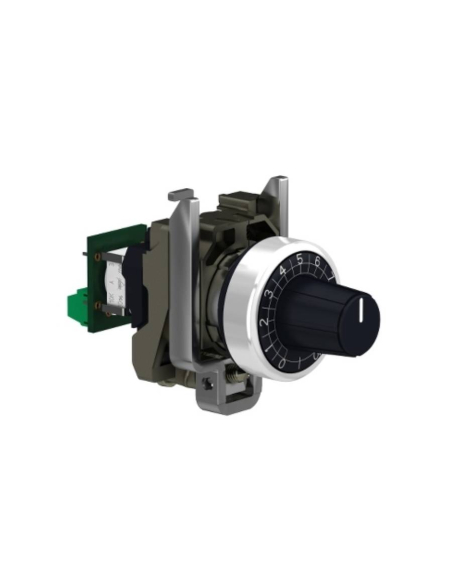

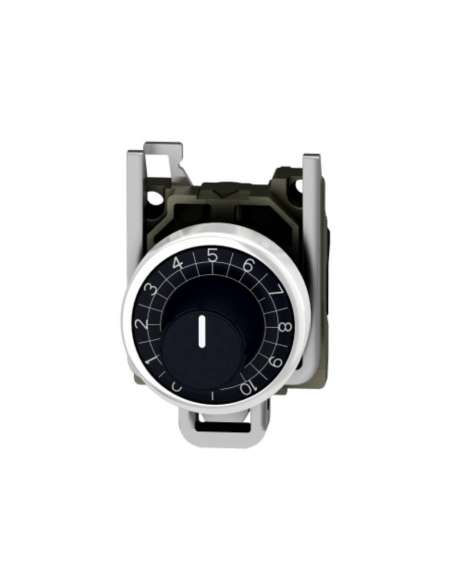

Potentiometer with 10 kΩ resistor, allows to control key parameters of automation components such as variable speed drives and inverters. Full precision potentiometer in linear mode +/-10%. Panel mounting in standard 22mm knockouts, connection via screw terminals.

Ideal for analog control (such as speed control on motors) using voltage or resistance input of variable speed drives.


Reference: XB4BD912R10K




Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Potentiometer with 10 kΩ resistor, allows to control key parameters of automation components such as variable speed drives and inverters. Full precision potentiometer in linear mode +/-10%. Installation in standard 22mm knockouts, connection via screw terminals.

Ideal for analog control (such as speed control on motors) using voltage or resistance input of variable speed drives.



Characteristics:

  • Manufacturer: SCHNEIDER
  • Reference: XB4BD912R10K
  • HARMONY XB4 SERIES
  • Mounting diameter: 22.5mm
  • Shaft diameter: 6mm
  • Supply voltage: ≤ 30Vac / ≤ 42Vdc
  • Nominal power: 1W (70ºC)
  • Internal resistance conversion accuracy: ±10%
  • Potentiometer characteristic: Linear
  • Mechanical durability: 50,000 cycles
  • Ohmic value: 10000 Ohm
  • Operating temperature: -40…70C
  • Protection class against electric shock: Class II according to IEC 60536
  • IP protection class: IP66 according to IEC 60529
  • IK protection class: IK06 according to IEC 50102
  • Terminals: Screw
  • Weight: 0.095kg
  • Regulations: CSA C22.2 No 14, UL 508



Dimensions (mm/in):



e: Panel thickness: 1mm to 6mm (0.03in to 0.24in)



For further information, you can download the technical sheet by clicking on the "Attached Files" tab.

Professional use material, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.
