Roller chain pinions 5/8 x 3/8 10B-1 Z46 DIN8187 - ISO R606

€53.64 Tax included

€44.70 tax excl.

P583810B1Z46

Single pinion for single roller chain model 10B-1 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z46 5/8

Teeth: 46

ISO: 10B-1

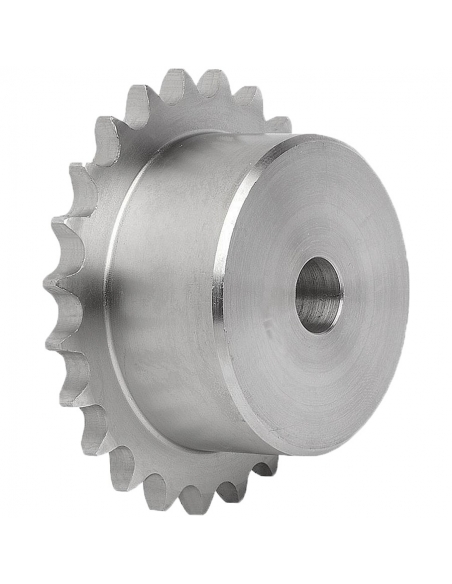

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple sprockets for single roller chains 10B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z46 5/88


Characteristics:

  • 5/8 x 3/8 mm ISO 10B-1
  • 15.875 x 9.65 mm
  • Teeth: 46
  • Roller diameter: 10.16 mm
  • Tooth radius (r): 16 mm
  • Curved area width (C): 1.6 mm
  • Tooth width (h1): 9.1 mm


Material for professional use, install in compliance with the regulations in force at the place of installation.
