Roller chain sprockets 1 x 17.02 16B-1 Z34 DIN8187 - ISO R606

€105.25 Tax included

87.71 tax excl.

P1170216B1Z34

Single pinion for single roller chain model 16B-1 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z34 1

Teeth: 34

ISO: 16B-1

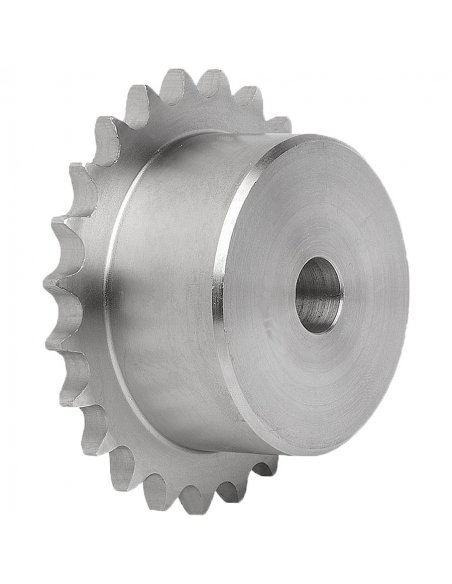

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Simple sprockets for single roller chains 16B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z34 1


Characteristics:

  • 1" x 17.02mm ISO 16B-1
  • 25.4 x 17x02 mm
  • Teeth: 34
  • Roller diameter: 25.4 mm
  • Inner width: 17.02 mm
  • Roller diameter: 15.88 mm
  • Tooth radius (r): 26 mm
  • Curved area width (C): 2.5 mm
  • Tooth width (h1): 16.2 mm
  • Outer Diameter (Sd): 287.0
  • Primitive diameter (Dp): 275.28
  • Center diameter (d): 120
  • Hub diameter (D): 25 (Non-mechanical shaft diameter)
  • Width (H): 50


Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Hola, necesito dos así para unirlos con una cadena doble. El eje tiene que tener 60mm me podrían pasar info. Gracias también estoy preguntando por los cojinetes si me pueden responder el email que envíe. Gracias
Answer
Estimado cliente,

Si va a poner una cadena doble de 16B-2 entonces, necesita un piñón doble para cadena 16B-2


En cuanto al eje, los piñones vienen con un eje ciego según el tipo de piñón, en este caso este piñón tiene un agujero de 25mm y lo tiene que mecanizar a 60 mm

Y en cuanto a los soportes, le hemos contestando en email anteriores.

Si es una nueva duda, porfavor vuelva a enviarnola.

Un saludo
ADAJUSA
Vanessa on 10/18/2022 11:00:07
