Double sprockets for roller chain 1/2 x 5/16 08B-2 Z24 DIN8187 - ISO R606

€32.87 Tax included

€27.39 tax excl.

Double pinion for double roller chain model 08B-2 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z24 1/2 DOUBLE:THX

Teeth: 24

ISO: 08B-2

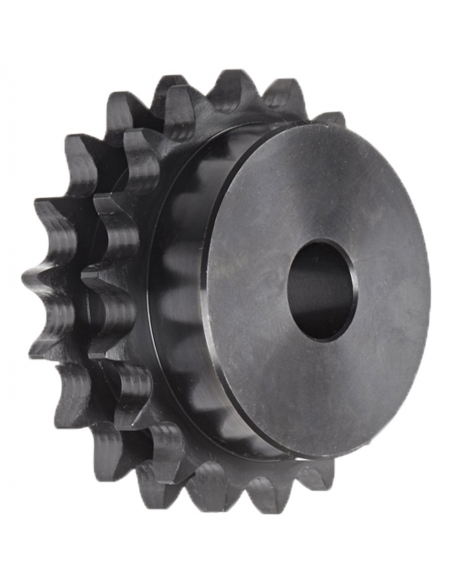

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Double sprockets for double roller chains 08B-2 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z24 1/2 DOUBLE:THX



Characteristics:

  • 1/2" x 5/16" mm ISO 08B-2
  • 12.7 x 7.75 mm
  • Teeth: 24
  • Tooth radius (r): 13 mm
  • Curved area width (C): 1.3 mm
  • Tooth width (h1): 7.2 mm
  • Outer Diameter (S): 101.8
  • Primitive diameter (Dp): 97.29
  • Diameter (d): 75
  • Hub diameter (D): 16 (Non-mechanical shaft diameter)
  • Disk width (H): 40
  • Tooth width (H2): 7.2 mm


Material for professional use, install in compliance with the regulations in force at the place of installation.
