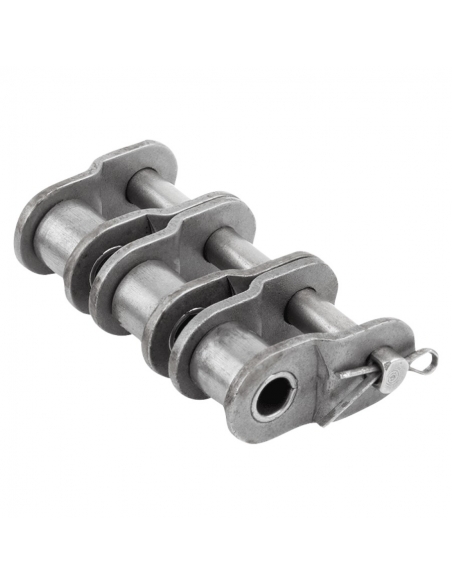

Triple chain bound rollers 10B-3 ISO

€3.06 Tax included

€2.53 tax excl.

Triple roller chain bending links for triple chain type 10B-3 according to ISO standard

Reference: 57470185


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Triple-bounded links for triple chain type 10B-3 roller chain connection according to ISO standard

Manufacturer: ISB
Reference: 57470185

A bounded link is used when an odd number of chain links is required. It is the combination of an inner link and an outer link.

The bolt and two meshes are adjusted by sliding. Fatigue resistance is 35% lower than that of the chain itself.

The use of a bounded joint does not require the use of a straight joint.


Material for professional use, install respecting the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Triple step roller chain 15.875 5/8 10B-3 DIN 8187 ISB- ADAJUSA
Roller chains European standard ISO DIN 8187

Triple step roller chain 15.875 5/8 10B-3 DIN 8187

ISB-Cadenas
CAD10B-3
Starting from €27.08 (€22.38 tax excl.)
Chain of triple standard rollers according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: 57250185 Pitch: 15.875- 5/8" Roller diameter: 10.16 mm Price per meter. Sale exclusively by packaging of 5 meters.  Representative image for...
View
Triple step roller chain 5/8 10B-3 DIN 8187 - Tsubaki - ADAJUSA
Roller chains European standard ISO DIN 8187

Triple pitch roller Chain 15.875 5/8 10B-3 DIN 8187 - Tsubaki

Tsubaki
CADE-RS10B-3
€121.73 (€100.60 tax excl.)
Standard triple roller Chain according to norm ISO DIN 8187, up to 98% performance (*), very light and compact which allows it to be installed in very limited spaces. Reference: CADE-RS 10B-3:TSU Pitch: 15.875- 5/8" Roller diameter: 10.16 mm Price per meter. Sold exclusively by packaging of 1 meter. Representative image for illustrative purposes, the...
View

16 other products in the same category:

Triple step roller chain 31.75 1 1/4 20B-3 DIN 8187 Tsubaki - ADAJUSA
Roller chains European standard ISO DIN 8187

Triple step roller chain 38.10 1 1/2 24B-3 DIN 8187 - Tsubaki

Tsubaki
CADERS24B3
Starting from €3,584.38 (€592.46 tax excl.)
Chain of triple standard rollers according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: CADE-RS 24B-3:TSU Pitch: 38.10 mm - 1 1/2" Roller diameter: 25.40 mmPrice per meter. Sale exclusively by packaging of 5 meters. Representative image for...
View
Triple roller chain DIN 8187 - ADAJUSA
Roller chains European standard ISO DIN 8187

Triple step roller chain 19.05 3/4 12B-3 DIN 8187

ISB-Cadenas
CAD12B-3
Starting from €41.62 (€34.40 tax excl.)
Chain of triple standard rollers according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: 57250190 Pitch: 19.05 mm - 3/4" Roller diameter: 12.07 mmPrice per meter. Sale exclusively by packaging of 5 meters.  Representative image for...
View

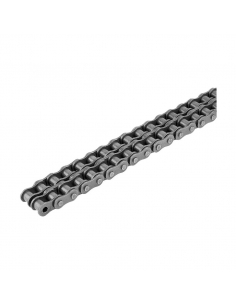

Double step roller chain DIN 8187 - ADAJUSA
