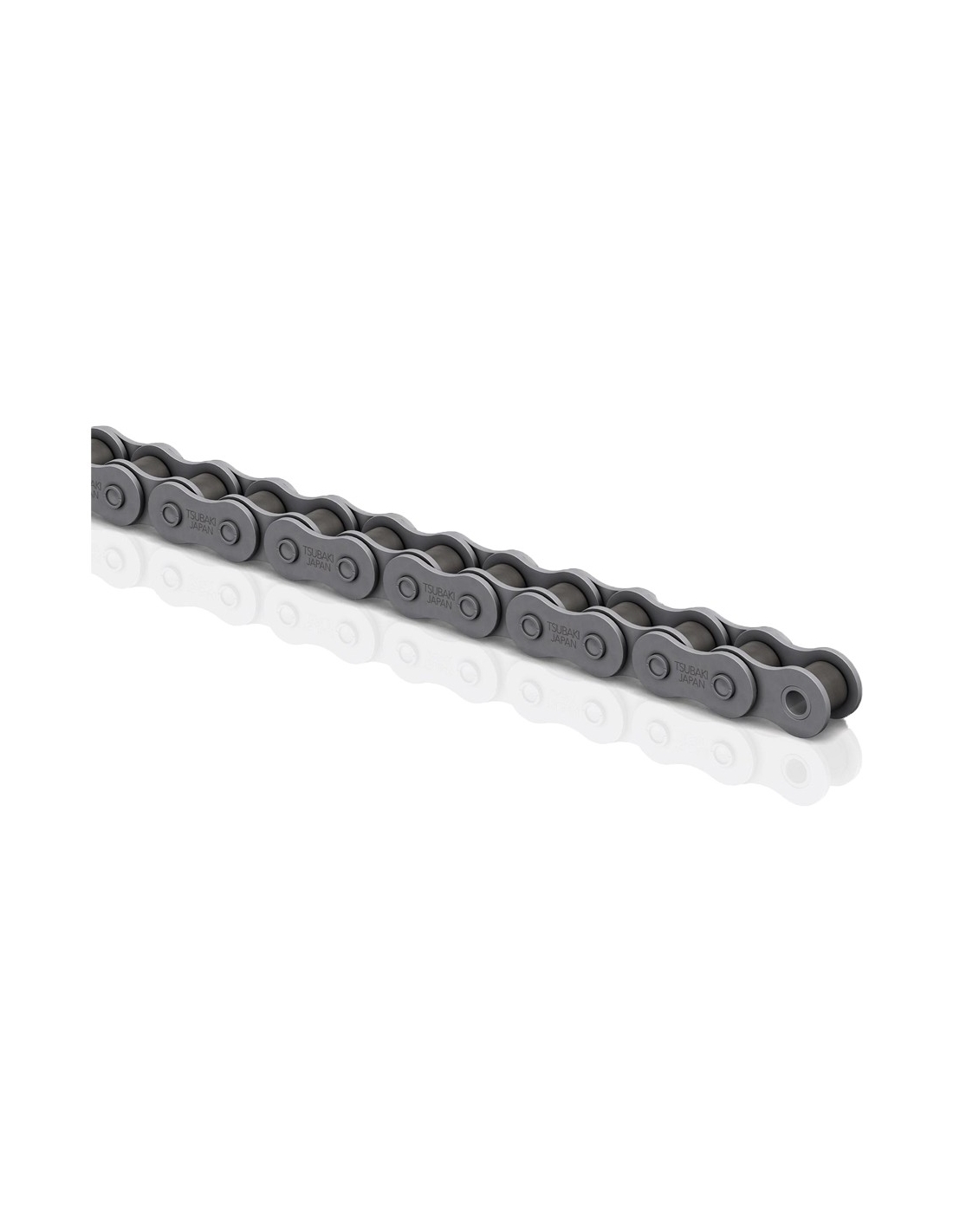

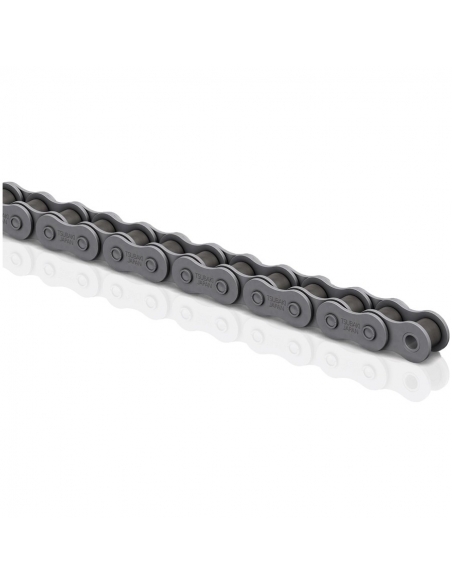

Single step roller chain 12.7 1/2 08B-1 DIN 8187 - Tsubaki

€30.94 Tax included

€25.57 tax excl.

Simple roller chain standard according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces.

Reference: 72710080001

Step: 12.7- 1/2"

Roller diameter: 8.51 mm


Price per meter. Sale exclusively by packaging of multiples of 5 meters.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Roller chain according to the requirements of ISO DIN 8187 manufactured in Japan.

A roller chain is a series of bearings connected by meshes (plates), great versatility and durability in environments with a lot of dust, oil, water, greases, etc ... Roller chains develop a synchronous power transmission, without slippage, and the effectiveness of the transmission does not depend on the transmitted voltage.

They can be used in a wide range of industrial and general applications, motors, compressors, printing presses, conveyors, agriculture....


Features:
  • Manufacturer: Tsubaki
  • Reference: CADE-RS 08B-1:TSU
  • Exclusive sale for packaging of 5 meters of chain.
  • Pitch (P): 12,70mm
  • Roller diameter (d1): 8.51 mm (max)
  • Internal width (b1): 7.75 mm (min)
  • Shaft diameter (d2): 4.45 mm (max)
  • Length of the union
    • (L): 16.95 mm (max)
    • (Lc): 19.05 mm (max)
  • Mesh height (h2): 11.81 mm
  • Mesh thickness: (t/T): 1.60 mm
  • Minimum breaking load (Q ISO/DIN) 17.80/18.00 kN
  • Average breaking load (Q0): 19.60 kN
  • Approximate weight: 0.69 kg/m

(*) Under correct lubrication conditions.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab




Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Simple straight mesh roller chain - ADAJUSA
Roller chains European standard ISO DIN 8187

Roller chain simple straight mesh step 9.525 3/8 06B-1 DIN 8187

ISB-Cadenas
CAD06B-1
Starting from €6.32 (€5.22 tax excl.)
Chain of rollers simple straight mesh, according to European standard ISO DIN 8187, up to 98% of performance (*), very light and compact which allows to be installed in very limited spaces. Reference: 57250015  Pitch: 9.525 mm - 3/8" Roller diameter: 6.35 mmPrice per meter. Sale exclusively by packaging of 5 meters.Representative image for...
View

16 other products in the same category:

Double step roller chain DIN 8187 - ADAJUSA
Roller chains European standard ISO DIN 8187

Double step roller chain 8 5/16 05B-2 DIN 8187

ISB-Cadenas
CAD05B-2
Starting from €23.26 (€19.22 tax excl.)
Double standard roller chain according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: 57250090 Pitch: 8.00 mm - 5/16" Roller diameter: 5.00 mmPrice per meter. Sale exclusively by packaging of multiples of 5 meters.  Representative image for...
View
Double step roller chain 5/8 10B-2 DIN 8187 Tsubaki - ADAJUSA
Roller chains European standard ISO DIN 8187

Double step roller chain 15.875 5/8 10B-2 DIN 8187 - Tsubaki

Tsubaki
CADE-RS10B2
Starting from €402.75 (€66.57 tax excl.)
Double standard roller chain according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: CADE-RS 10B-2:TSU Step: 15.875 - 5/8" Roller diameter: 10.16 mmPrice per meter. Sale exclusively by packaging of multiples of 5 meters. Representative image...
View
Triple step roller chain 5/8 10B-3 DIN 8187 - Tsubaki - ADAJUSA
Roller chains European standard ISO DIN 8187

Triple pitch roller Chain 15.875 5/8 10B-3 DIN 8187 - Tsubaki

Tsubaki
CADE-RS10B-3
€121.73 (€100.60 tax excl.)
Standard triple roller Chain according to norm ISO DIN 8187, up to 98% performance (*), very light and compact which allows it to be installed in very limited spaces. Reference: CADE-RS 10B-3:TSU Pitch: 15.875- 5/8" Roller diameter: 10.16 mm Price per meter. Sold exclusively by packaging of 1 meter. Representative image for illustrative purposes, the...
View
Double step roller chain 25.40 1" 16B-2 DIN 8187 Tsubaki - ADAJUSA
Roller chains European standard ISO DIN 8187

Double step roller chain 31.75 1 1/4 20B-2 DIN 8187 - Tsubaki

Tsubaki
CADE-RS20B2
Starting from €1,312.03 (€220.32 tax excl.)
Double standard roller chain according to European standard ISO DIN 8187, up to 98% performance (*), very light and compact which allows them to be installed in very limited spaces. Reference: CADE-RS 20B-2:TSU Pitch: 31.75 mm - 1" 1/4 Roller diameter: 19.05 mm Price per meter. Sale exclusively by packaging of multiples of 5 meters. Representative...
View

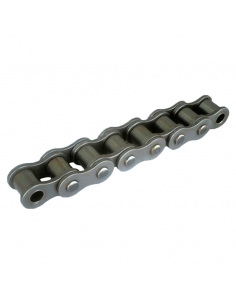

Simple roller chain ISO DIN 8187 ISB - ADAJUSA
