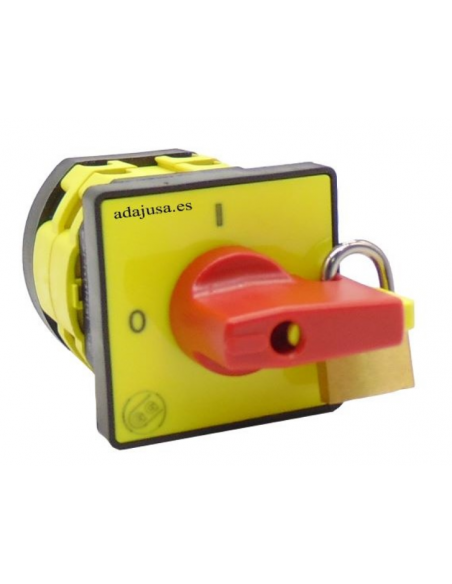

4-pole cam switch 32A full 48x48mm red lock - Giovenzana
4-pole cam switch 32A full 48x48mm red lock - Giovenzana

Cam switch 4 poles 32A full 48x48mm red lever lock - Giovenzana

€30.55 Tax included

€25.25 tax excl.

Rotary cam switch, tetrapolar main switch, 4 poles, 32A., rotary knob 90º 0-1, yellow front plate and red lever, possibility of lock locking, made according to the strictest European standards, which allow to meet the safety requirements.
Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines.

reference: GI320448NR
esquema electrico interruptor 4 polos

Giovenzana

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!


Tetrapolar cam switch, 4 poles, 32A for inductive loads (electric motors) and general control. Rotary control 90º, with two positions 0-1. Yellow plate and red lever, possibility of locking.

This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by fixing panel (rear frame), degree of protection IP-20 in terminals, self-cleaning contacts and indelible laser marking. Body made of ul94 VO self-extinguishing material.

Supply includes:

  • Three-phase switch: C0320004R
  • Front plate: 008/0001

Supply does not include padlock

characteristics:

  • Brand: Giovenzana
  • Switch reference: C0320004R
  • Front reference: 008/0001
  • number of poles: 4
  • Rated voltage Ue: 690V.
  • Nominal current Ie (AC21A): 32A.
  • Nominal interrupt capacity: 10kA.
  • Number of manoeuvres / hours: 120.
  • Mechanical durability: 1,000,000 maneuvers.
  • Built-in mounting.
  • Degree of protection:
  • Type 1-4-4X controls: IP-65.
  • Lever-only controls: IP-40.
  • Bornes: IP-20.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No14

Table of intensities and powers of use:

  • AC-21A usage category: 32A.
  • AC-22A use category: 32A.
  • AC-23A Usage Category:
  • Standard single-phase motors 230Vac: 30A - 5.5kW.
  • Standard three-phase motors 230Vac: 30A - 9kW.
  • Standard three-phase motors 400Vac: 24A - 15kW.
  • AC-3 Usage Category:
  • Standard single-phase motors 230Vac: 25a - 4kW.
  • Standard three-phase motors 230Vac: 23A - 11kW.
  • Standard three-phase motors 400VAc: 23A - 15kW.
  • Use category DC-21A (dc current):
  • Small overload 50V (1 phase): 25a.
  • Use category DC-22A (dc current):
  • 30V mixed load (1 phase): 20a.
