Screw simple hollow 1/8 female head 55000...

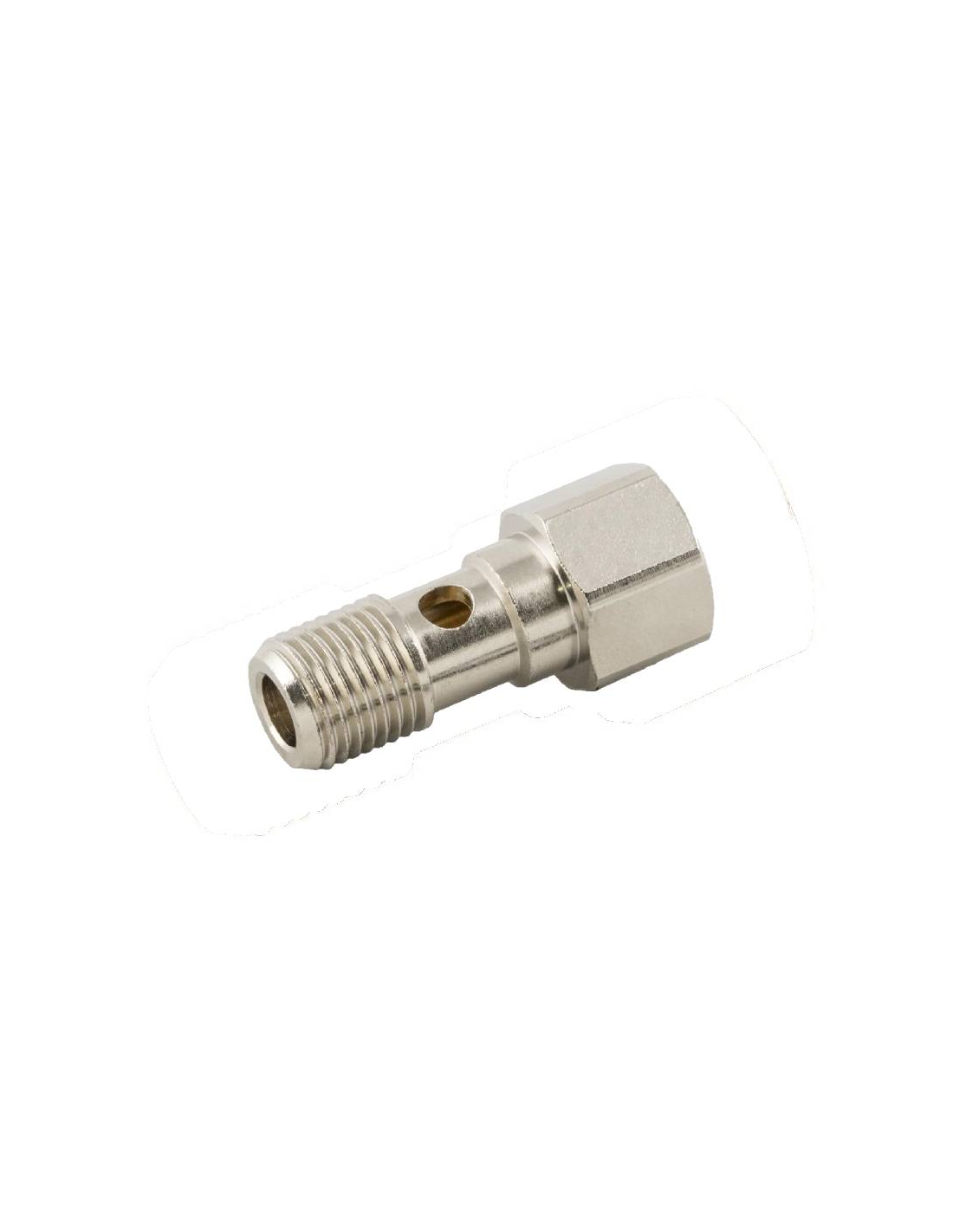

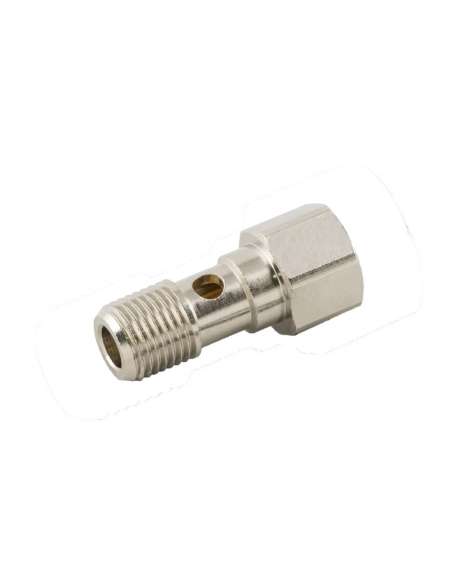

Screw simple hollow 1/8 female head 55000 series - Aignep

Screw simple hollow 1/8 female head 55000 series - Aignep

€1.33 Tax included

€1.10 tax excl.

Screw simple 1/8 for pneumatic distribution ring with female threaded head, made of chrome-plated brass.Veryefficientconnection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

Series: 55000
Part number: 55440 1/8 1/8




aignep
normativa


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Screw simple 1/8 for pneumatic distribution ring with female threaded head, made of chrome-plated brass. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

This screw is valid for mounting with swivel ring simple and double swivel ring of the 55000 series of the brand Aignep. The swivel rings can be purchased separately.

Technical specifications:

  • Manufacturer: Aignep.
  • Part number: 55440 1/8 1/8
  • Fluid: vacuum, compressed air and water
  • Material:Nickel-plated brass
  • Pressure: -0,99 bar a 20 bar
  • Working temperature: -20ºC to +80ºC
  • Thread standard
    • Gas conical according to ISO 7.1, BS 21,DIN 2999
    • Gas cylindrical according to ISO 228 Class A
    • Metric according to ISO R/262

Example of screw assembly simple with simple and double ring.



montajesimple

Dimensions:

55440dimensiones 55440td

Material for professional use, install in compliance with the regulations in force at the place of installation.
